2J  |  SKU: 2JP0224P

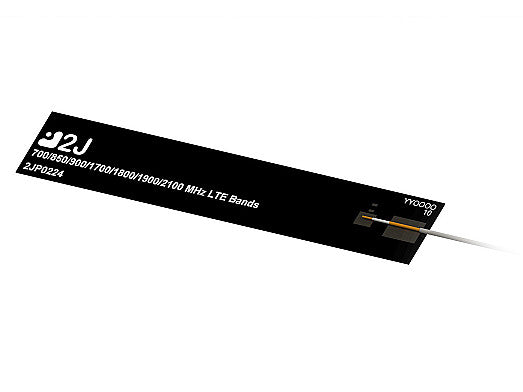

2JP0224P 4G/LTE adhesive mount rigid internal Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This high-performance rigid fiberglass antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of internal applications. Its ground plane independent design and wideband coverage make it ideal for integration into devices where space and performance are critical. The self-adhesive mounting allows for easy and secure installation on various surfaces, making it suitable for consumer electronics, robotics, drones, wearables, asset tracking, and more. The antenna supports a broad frequency range, ensuring compatibility with multiple cellular bands and technologies.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170 MHz
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~52, ~56
Peak Gain (dBi): ~0.8, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0224P", "title": "4G LTE/3G/2G High Performance Rigid Fiberglass Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "115 x 19.2 x 0.8", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-12.4", "vswr": "~1.7:1", "efficiency_percent": "~52", "peakGain_dbi": "~0.8", "averageGain_db": "~-2.8" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.8", "vswr": "~1.6:1", "efficiency_percent": "~56", "peakGain_dbi": "~2.7", "averageGain_db": "~-2.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm", "cableLength_mm": 150 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
