2J  |  SKU: 2JP0615P

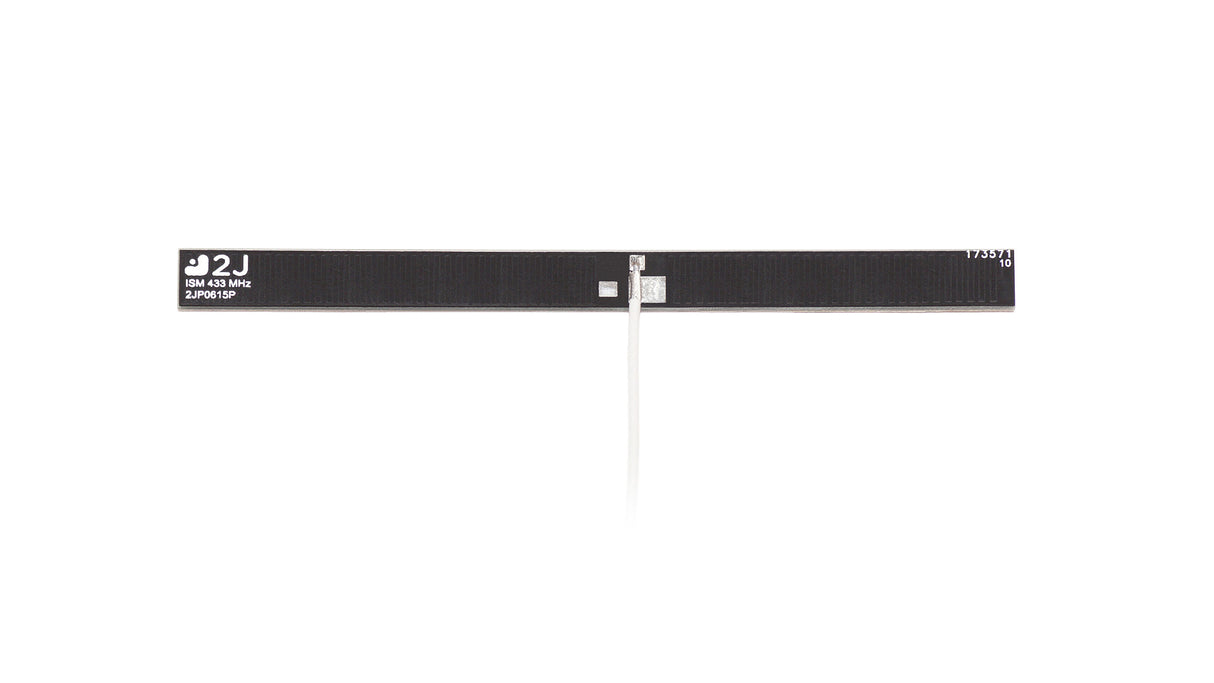

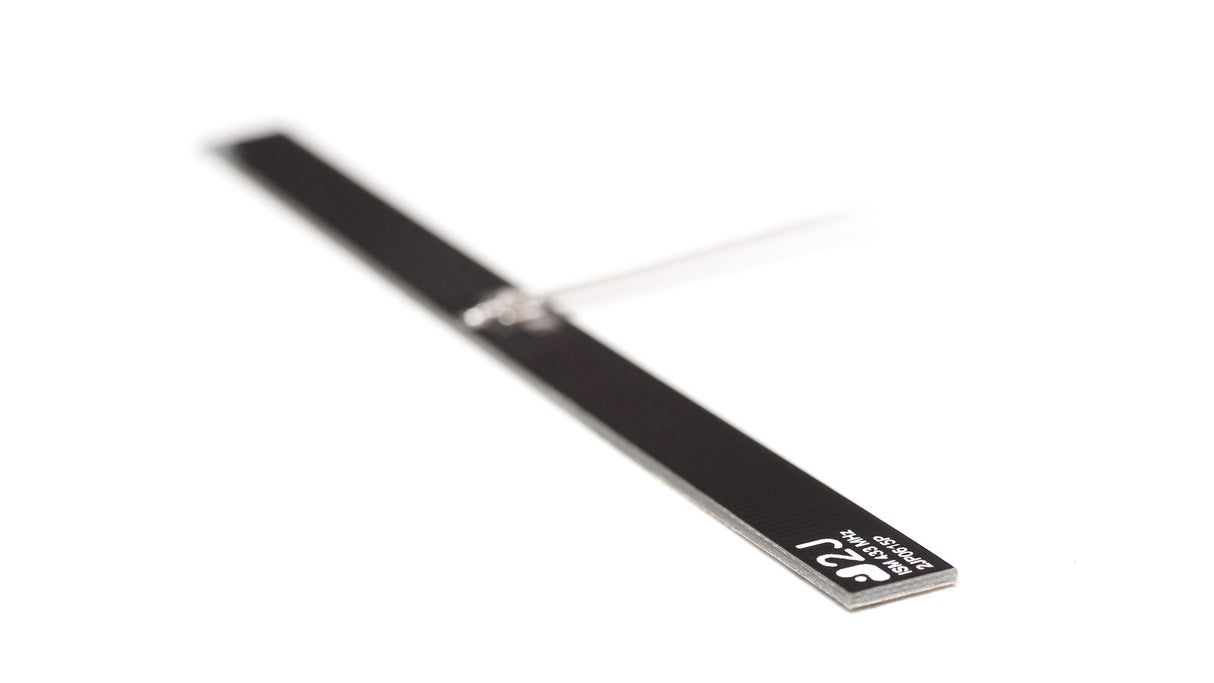

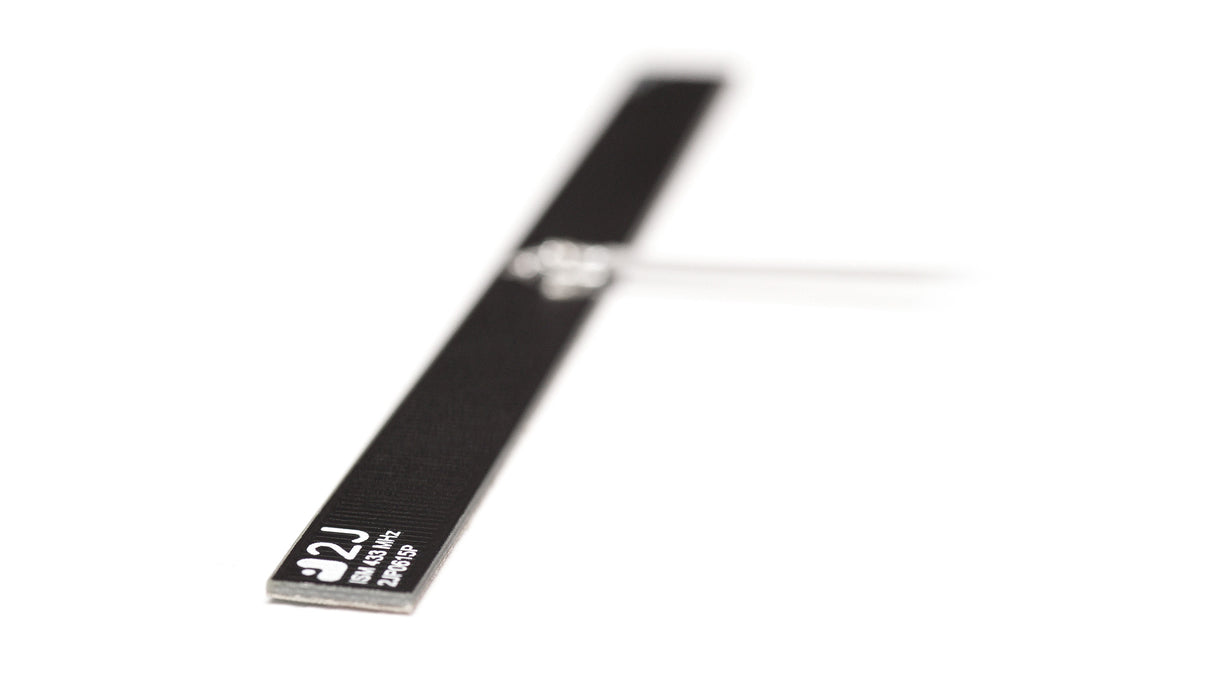

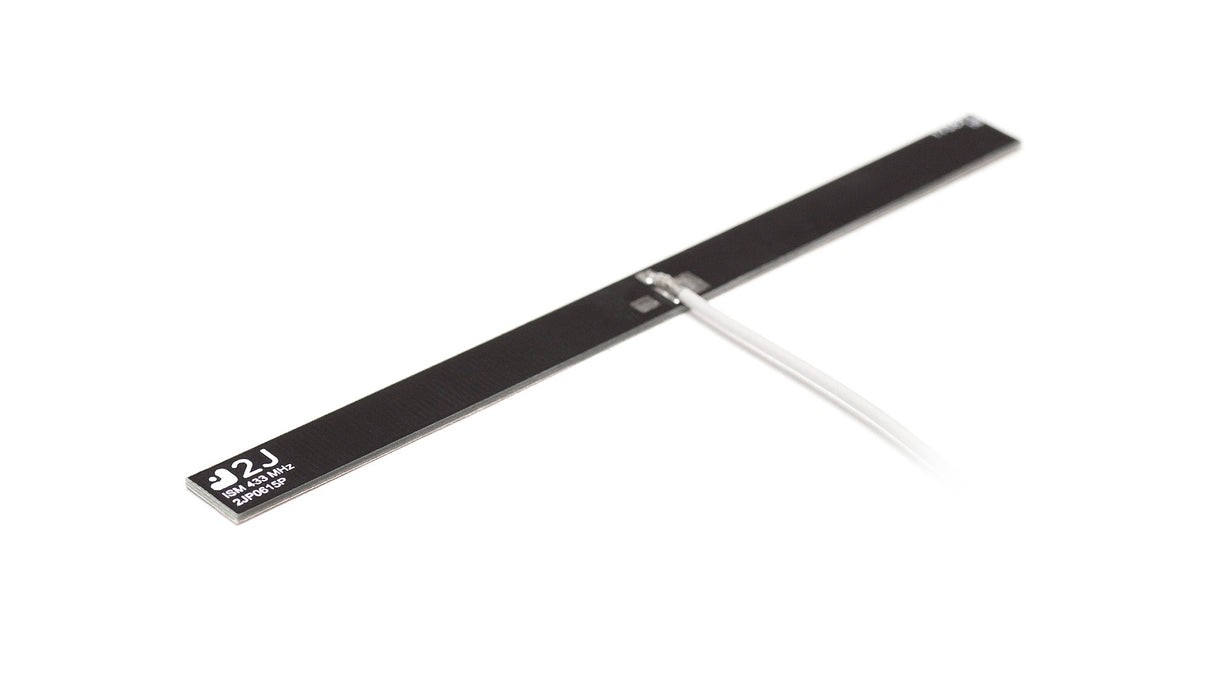

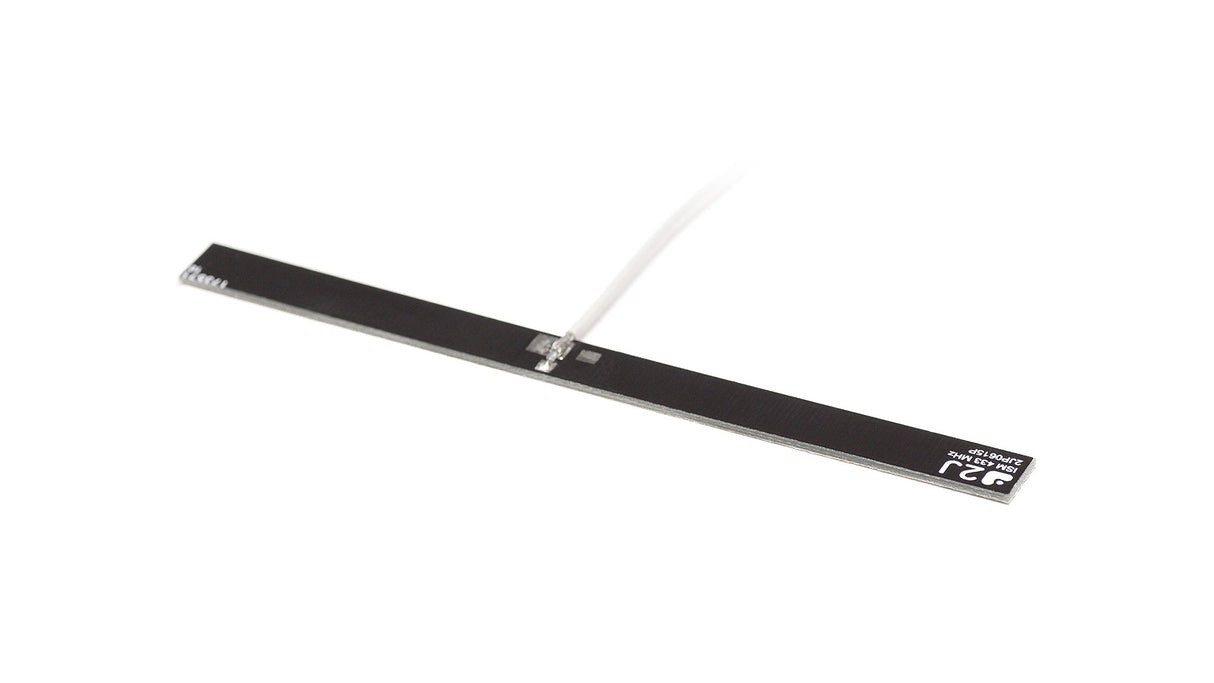

2JP0615P 433 MHz ISM Antenna adhesive mount rigid embedded

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This rigid embedded antenna is designed for reliable performance in the 433 MHz ISM band. Its ground plane independent design and self-adhesive mounting make it ideal for integration into a wide range of internal applications, including IoT devices, smart home systems, industrial monitoring, and asset tracking. The antenna is optimized for efficient operation in compact spaces and supports technologies such as LoRa, Sigfox, LPWA, and RFID.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox, LPWA, RFID, ISM
Mounting: Adhesive Mount Rigid
Type: Single
Dimensions: 104 x 8.5 x 0.8 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~32.6
Peak Gain (dBi): ~-2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0615P", "title": "433 MHz ISM Ground Plane Independent Rigid Embedded Antenna", "mountingType": "Self-Adhesive", "ipRating": null, "dimensions_mm": "104 x 8.5 x 0.8", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-23.7", "vswr": "~1.1:1", "efficiency_percent": "~32.6", "peakGain_dbi": "~-2.6", "averageGain_db": "~-4.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 250 } ] }
