2J  |  SKU: 2JP0624P-015MC137-UFL

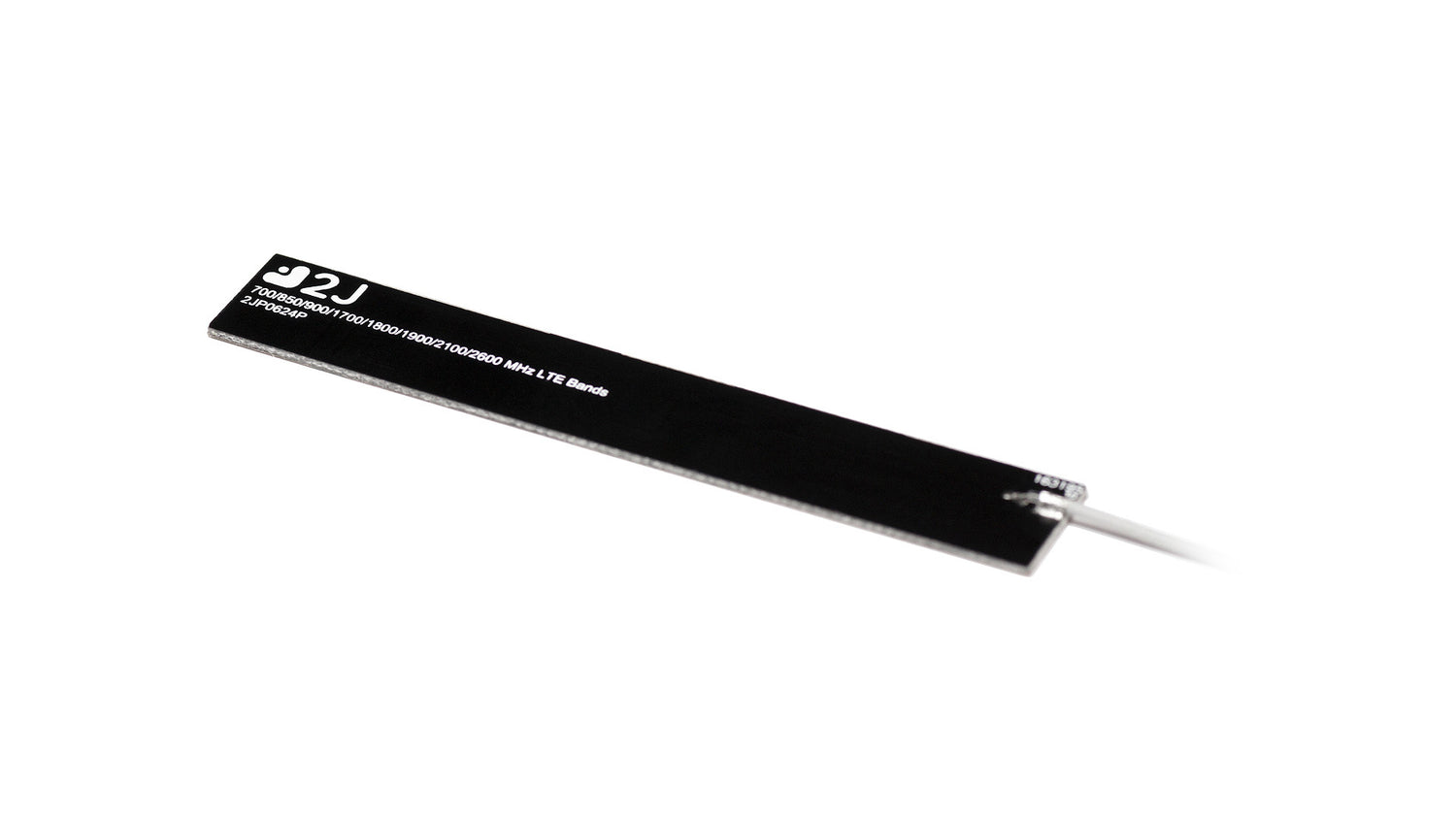

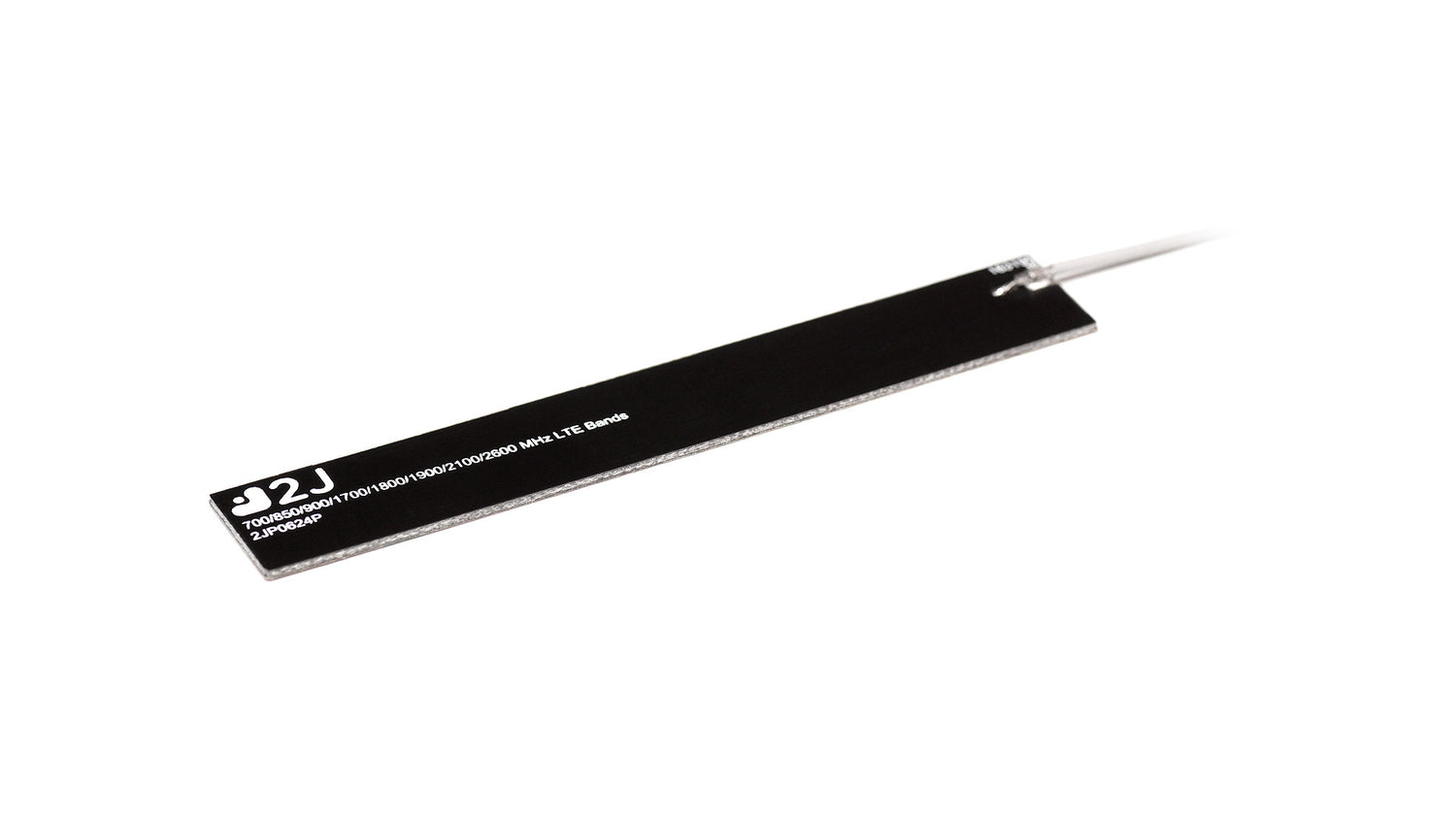

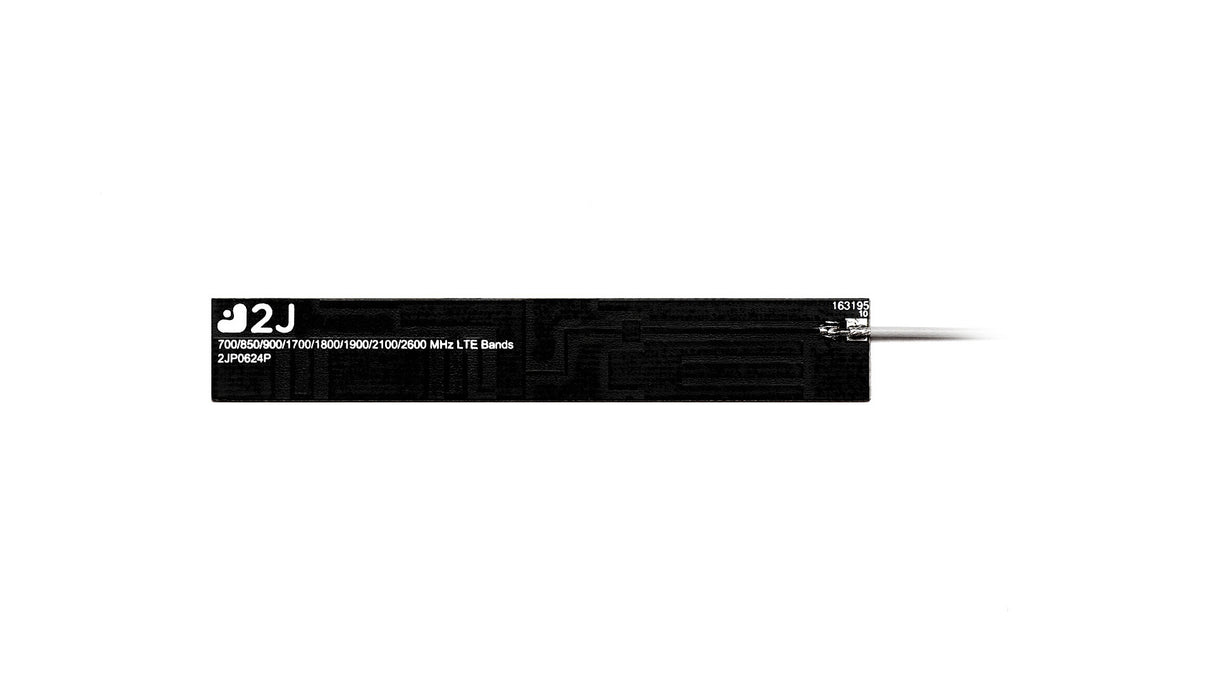

2JP0624P 4G/LTE adhesive mount rigid internal Antenna U.FL 15cm

€3,67
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance rigid internal antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide frequency range. Its self-adhesive mounting and ground plane independence make it ideal for integration into a variety of compact devices and applications where internal installation is required. The antenna delivers strong peak gain and efficiency, supporting robust wireless communication for IoT, consumer electronics, robotics, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 15cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Rigid
Type: Single
Dimensions: 89.7 x 14.1 x 0.8 mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.5:1, ~1.8:1, ~2.1:1
Efficiency (%): ~45, ~48, ~48
Peak Gain (dBi): ~0.3, ~1.5, ~2.8
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0624P", "title": "4G LTE/3G/2G High Performance Rigid Customizable Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "89.7 x 14.1 x 0.8", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx", "3G", "2G" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-15.1", "vswr": "~1.5:1", "efficiency_percent": "~45", "peakGain_dbi": "~0.3", "averageGain_db": "~-3.5" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-12.5", "vswr": "~1.8:1", "efficiency_percent": "~48", "peakGain_dbi": "~1.5", "averageGain_db": "~-3.3" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-9.0", "vswr": "~2.1:1", "efficiency_percent": "~48", "peakGain_dbi": "~2.8", "averageGain_db": "~-3.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 150 } ] }
