2J  |  SKU: 2JP1004P-SP

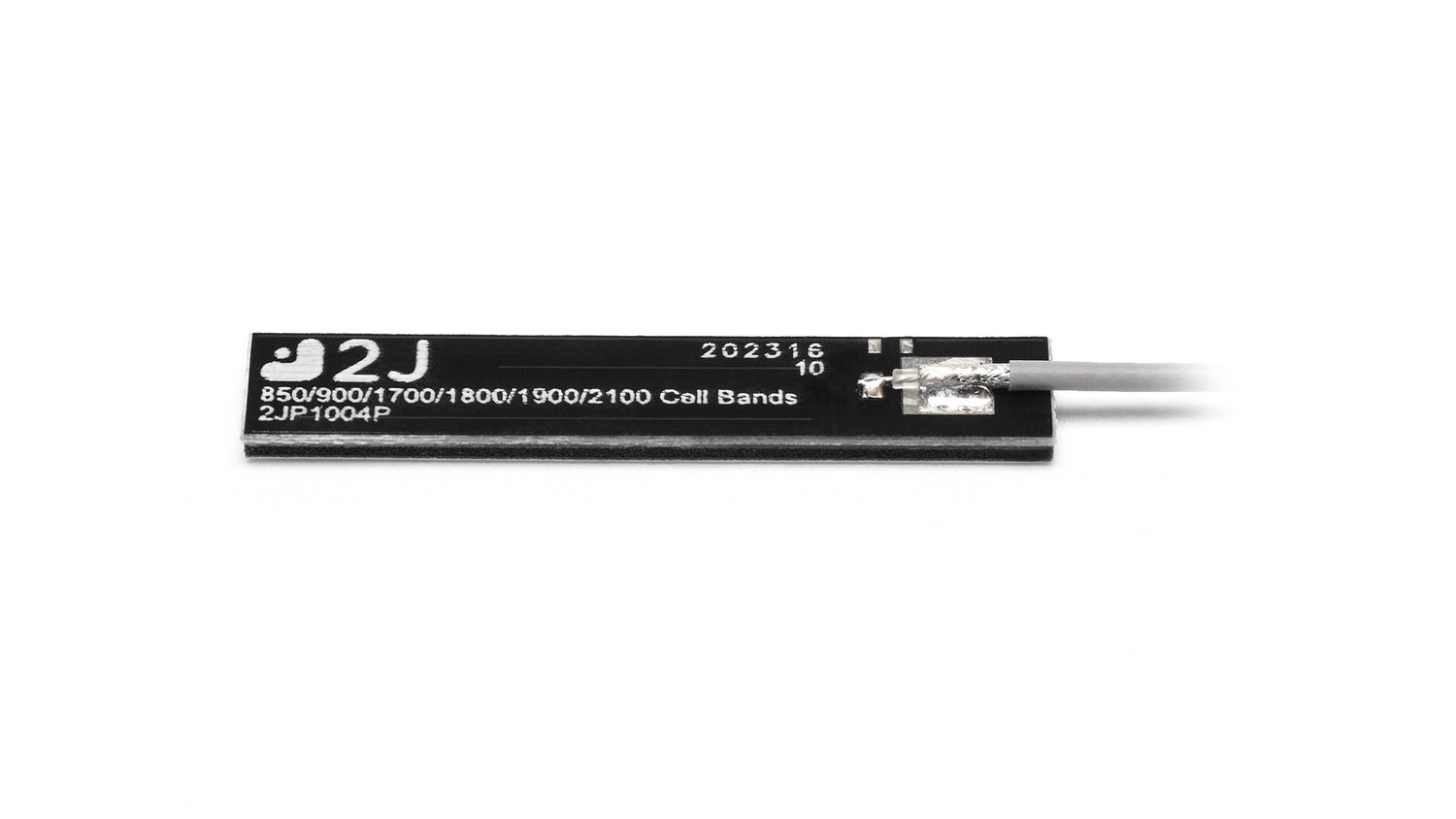

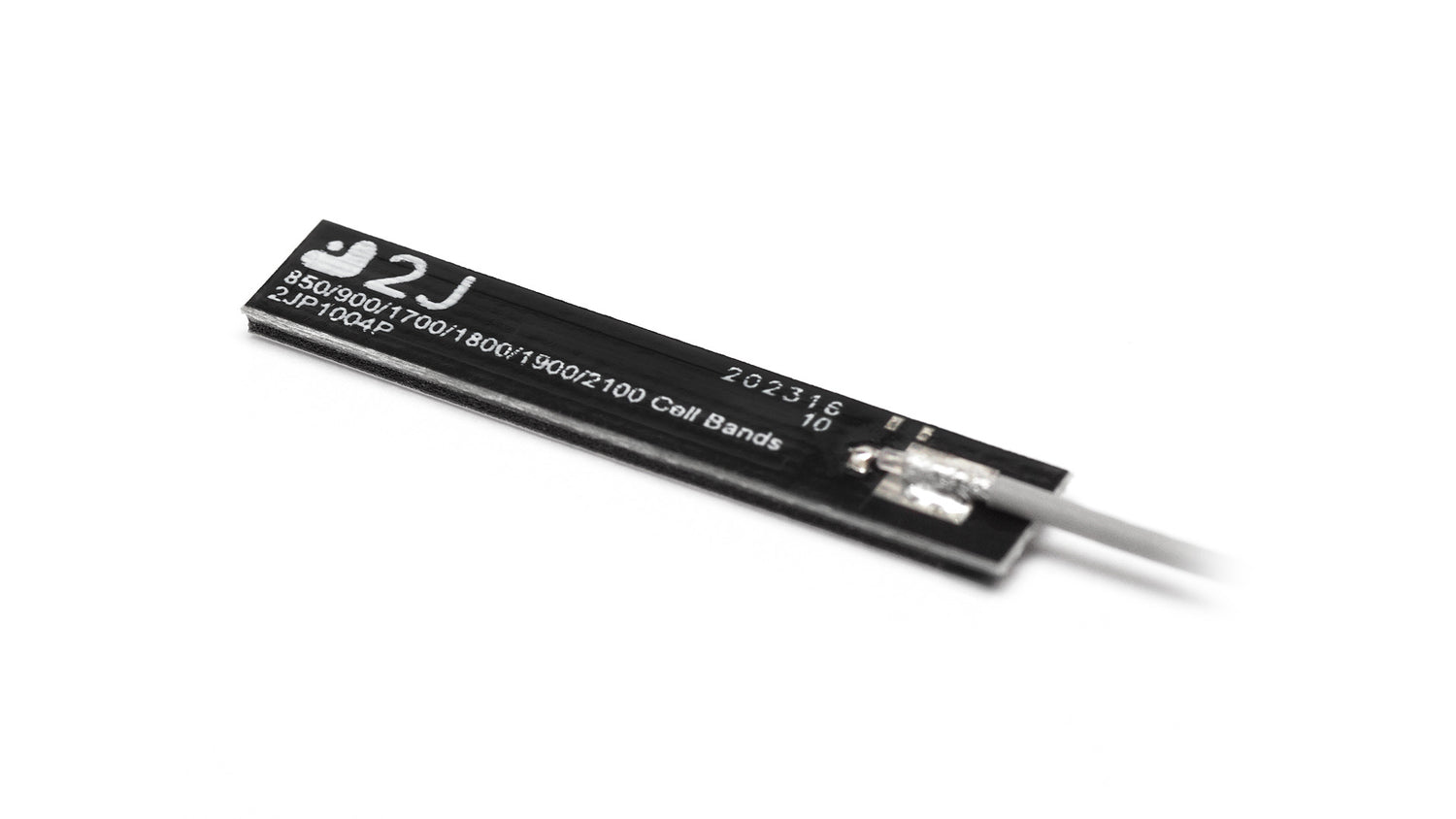

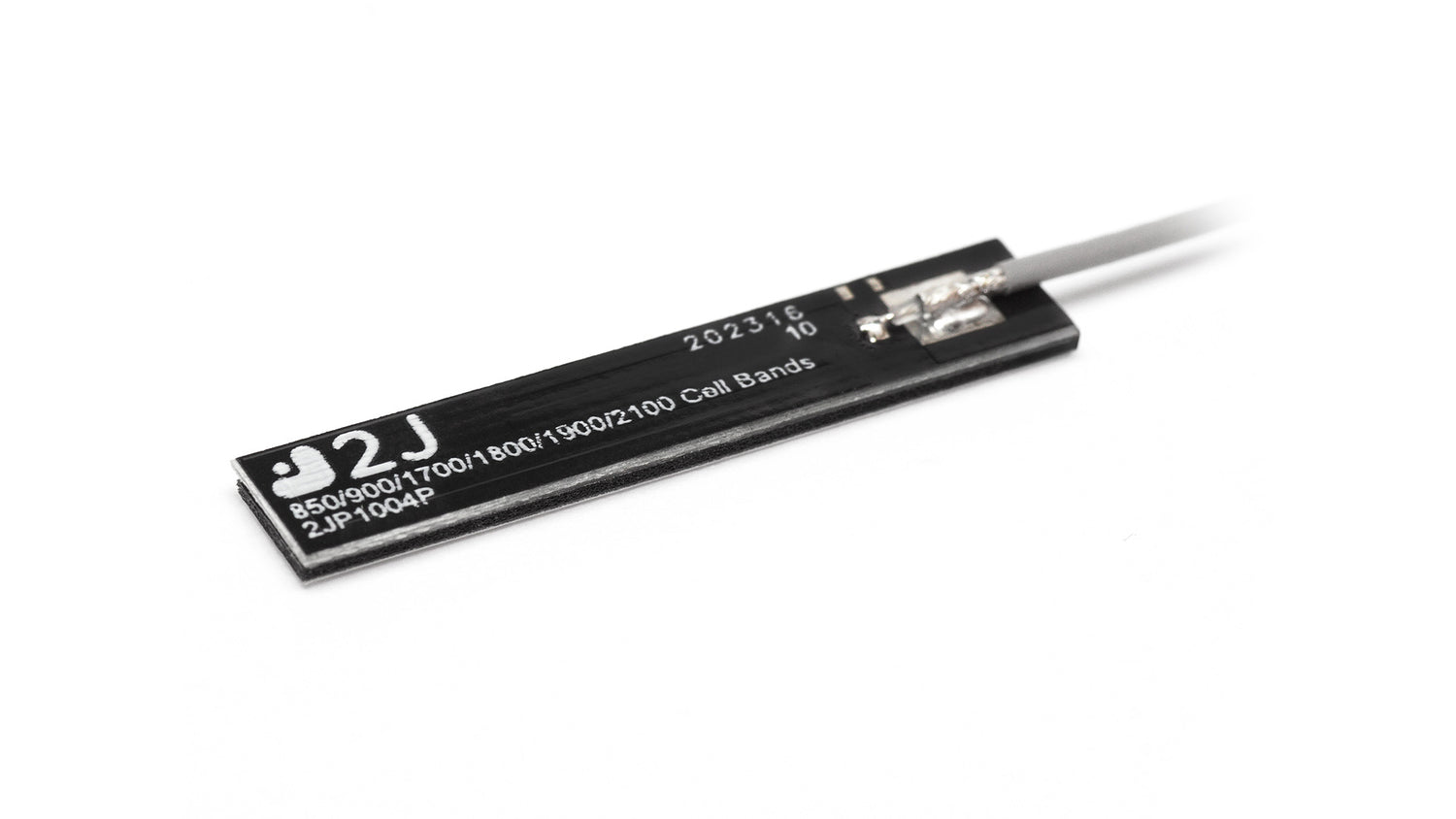

2JP1004P-SP 3G, 2G cellular Antenna adhesive mount rigid embedded

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact rigid embedded antenna is designed for reliable 3G and 2G cellular connectivity in space-constrained applications. Its small form factor and ground plane independence make it ideal for integration into consumer electronics, robotics, wearables, asset tracking, and other internal device solutions. The self-adhesive mounting simplifies installation, while the fiberglass construction ensures durability and consistent performance. Customizable cable and connector options are available to suit various design requirements.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single
Dimensions: 40.0 × 7.2 × 2.0 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: 4.0:1, 6.0:1
Efficiency (%): ~37.8, ~38.7
Peak Gain (dBi): ~1.1, ~1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP1004P-SP", "title": "Cellular Small Form Factor Rigid Fiberglass Embedded Antenna", "mountingType": "Self-Adhesive", "ipRating": null, "dimensions_mm": "40.0 × 7.2 × 2.0", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-5.7", "vswr": "~4.0:1", "efficiency_percent": "~37.8", "peakGain_dbi": "~1.1", "averageGain_db": "~-4.3" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-3.0", "vswr": "~6.0:1", "efficiency_percent": "~38.7", "peakGain_dbi": "~1.3", "averageGain_db": "~-4.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm", "cableLength_mm": 100 } ] }
