2J  |  SKU: 2JP1502P-SP

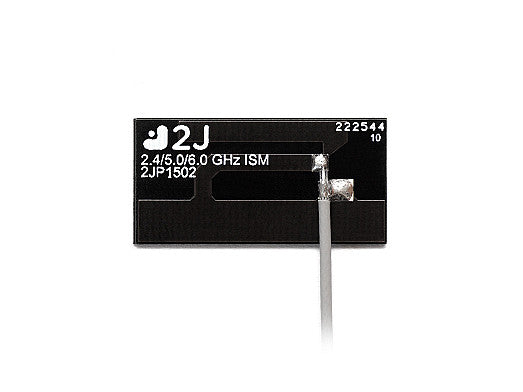

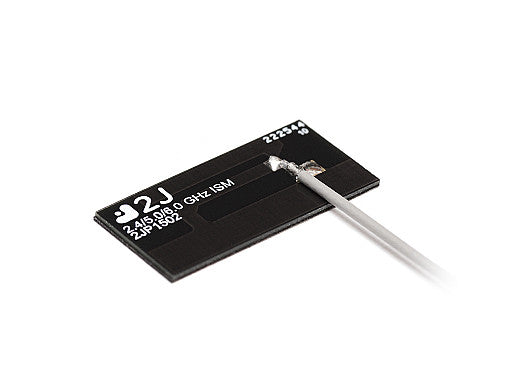

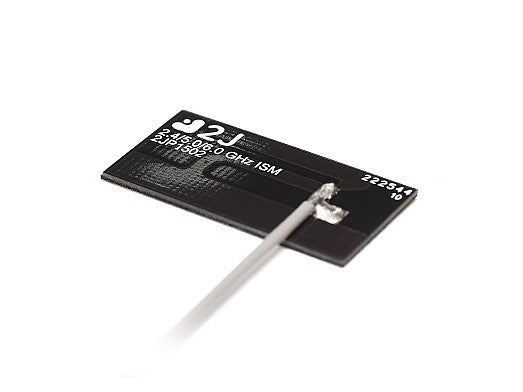

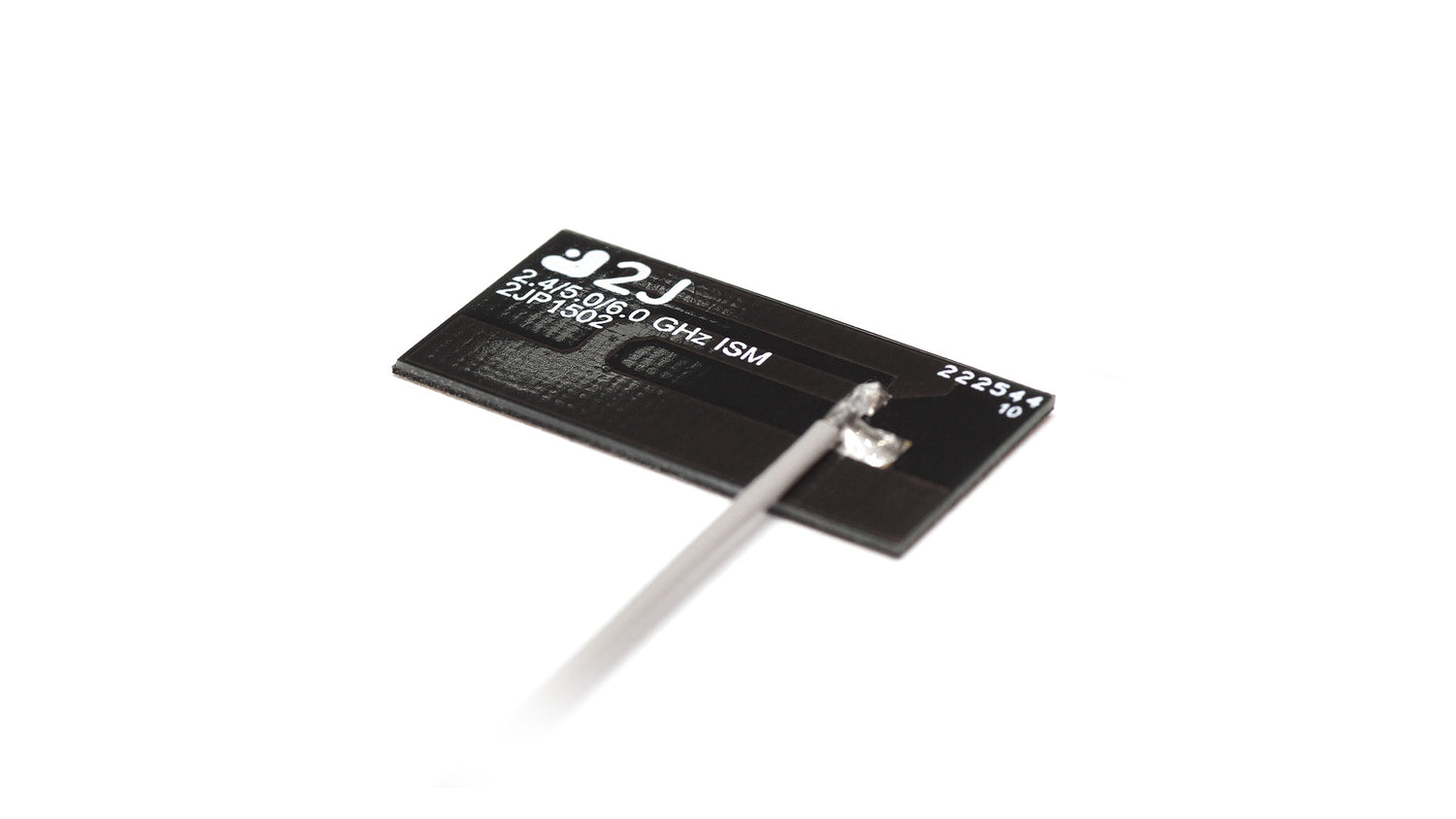

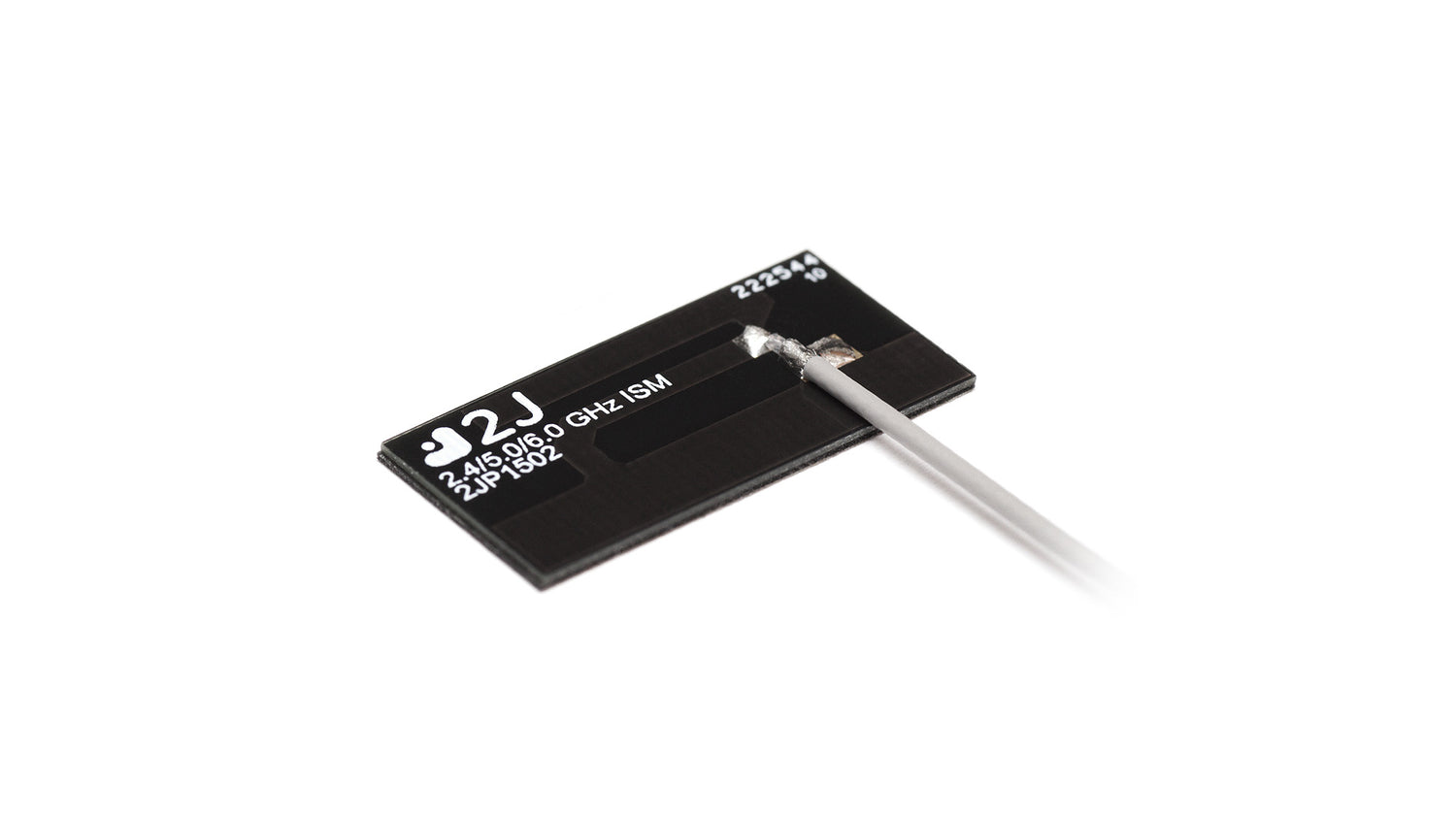

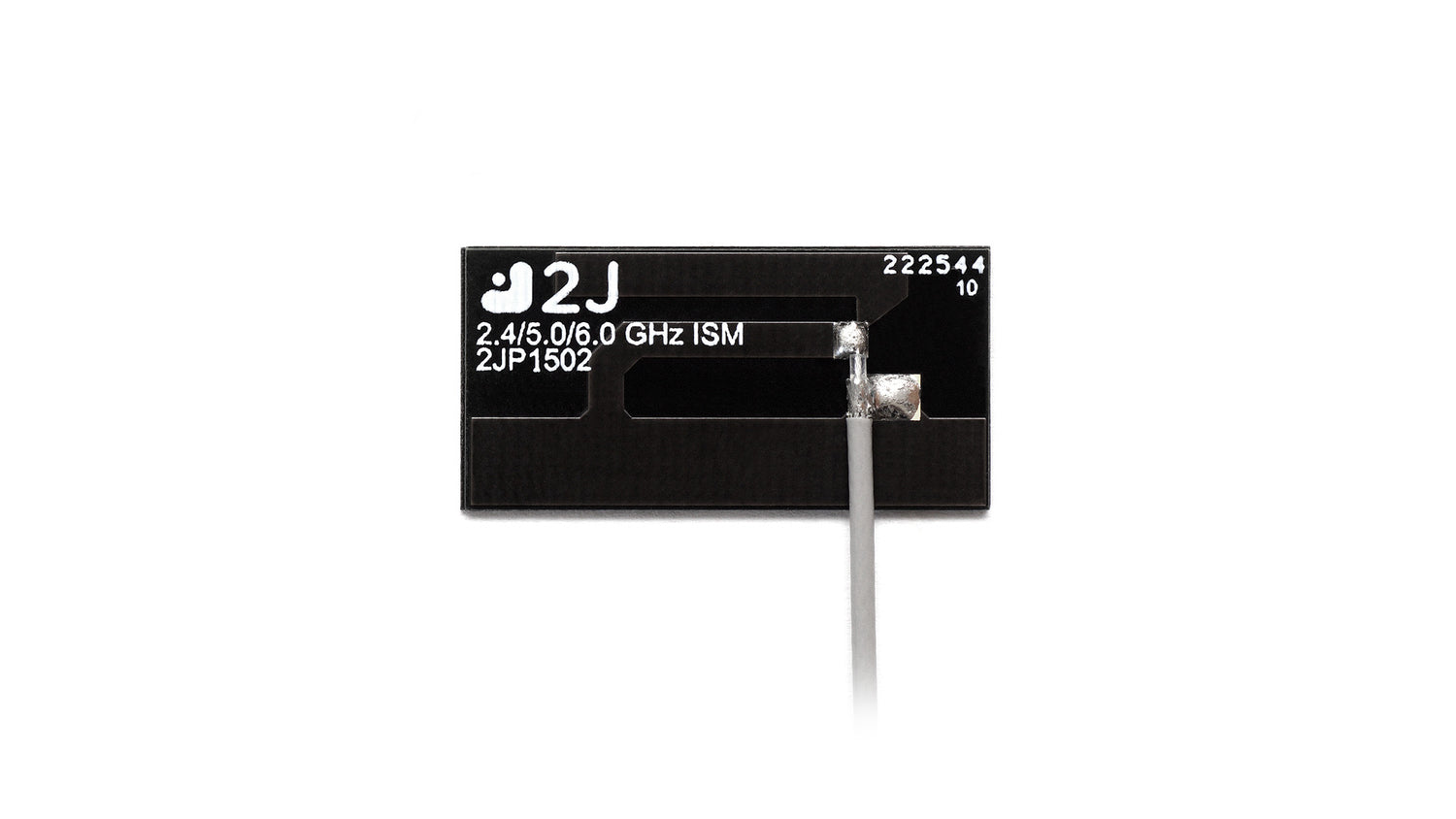

2JP1502P-SP Wi-Fi 6E/7, ISM adhesive mount rigid Antenna

€4,20
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance rigid embedded antenna is designed for Wi-Fi 6E/7 and ISM applications, offering reliable connectivity across 2.4, 5.0, and 6.0 GHz bands. Its compact fiberglass construction and ground plane independence make it ideal for integration into modern devices where space is limited. The self-adhesive mounting ensures easy installation, while the antenna's robust design supports demanding environments and high data throughput requirements. Perfect for consumer electronics, robotics, drones, smart home, IoT, and more.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: Internal
LPWAN & IoT Communication: SigFox, LoRa
Mounting: Adhesive Mount Rigid
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
Dimensions: 30 × 15 × 1 mm

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.8:1, ~1.7:1
Efficiency (%): ~57.7, ~70, ~68.3
Peak Gain (dBi): ~3.1, ~5.0, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP1502P-SP", "title": "2.4/5.0/6.0 GHz ISM WiFi 6E / WiFi 7 High Performance Rigid Fiberglass Embedded Antenna", "mountingType": "Self-Adhesive (Rigid Fiberglass)", "ipRating": null, "dimensions_mm": "30 x 15 x 1", "elements": [ { "elementID": "Wi-Fi / ISM / BT / ZigBee", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-11.3", "vswr": "~1.9:1", "efficiency_percent": "~57.7", "peakGain_dbi": "~3.1", "averageGain_db": "~-2.4" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.4", "vswr": "~1.8:1", "efficiency_percent": "~70", "peakGain_dbi": "~5.0", "averageGain_db": "~-1.6" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-12.7", "vswr": "~1.7:1", "efficiency_percent": "~68.3", "peakGain_dbi": "~4.5", "averageGain_db": "~-1.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 10 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM / BT / ZigBee", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 100 } ] }
