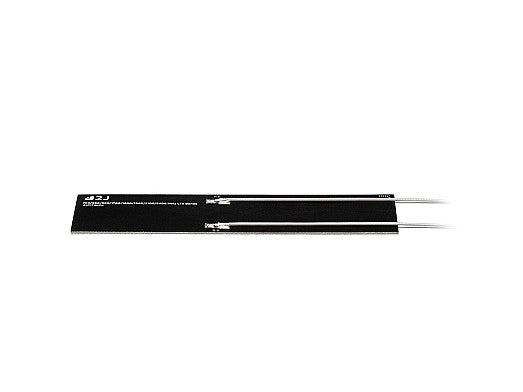

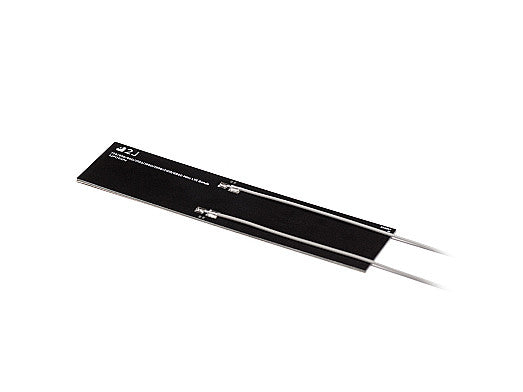

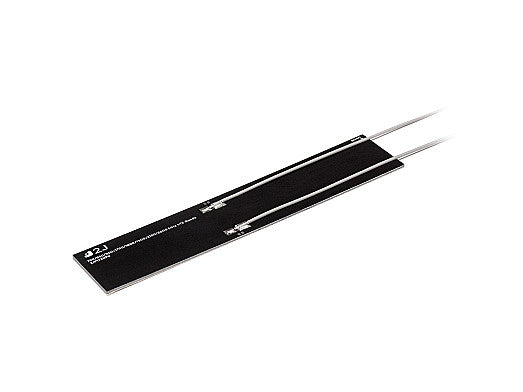

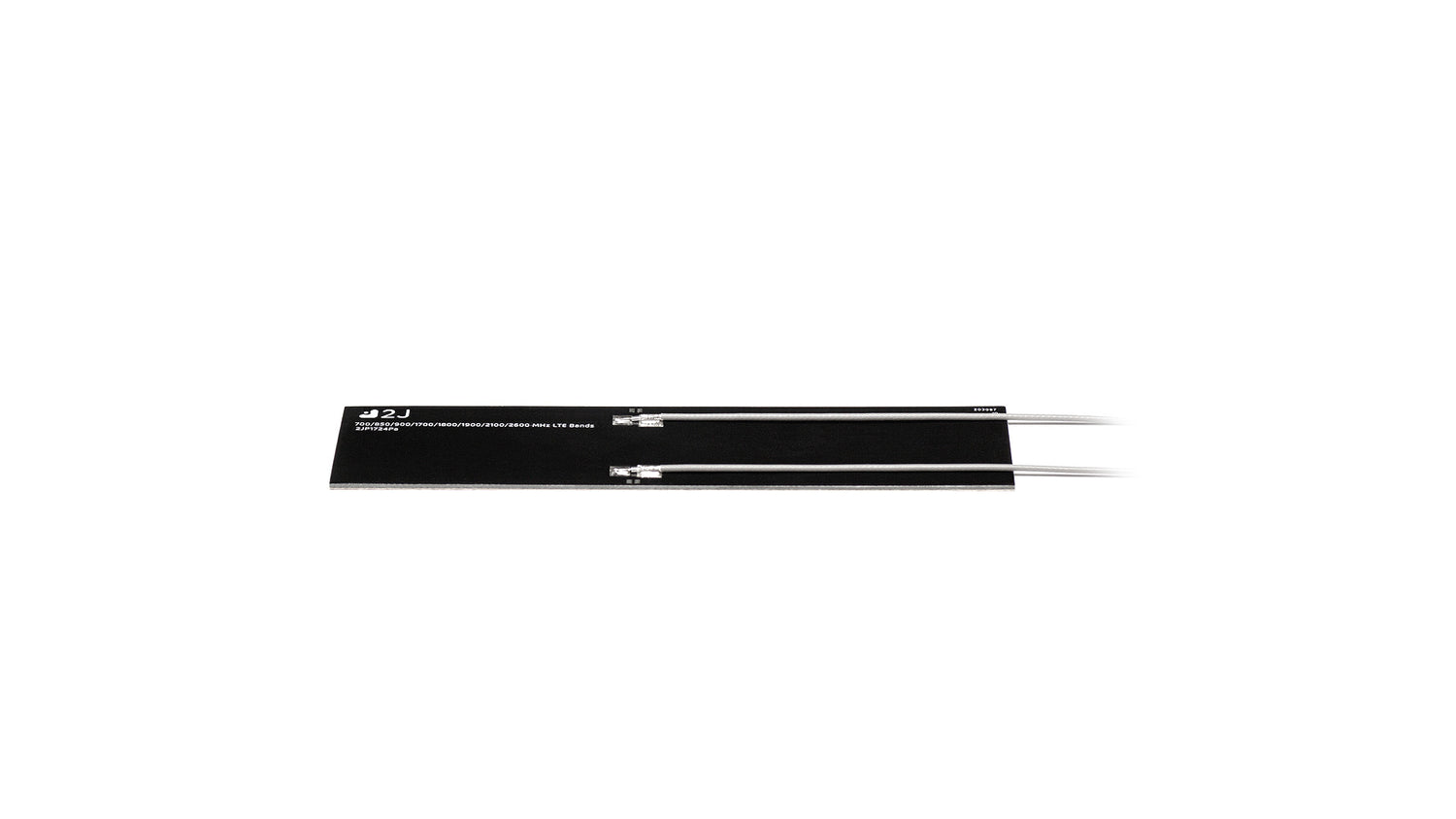

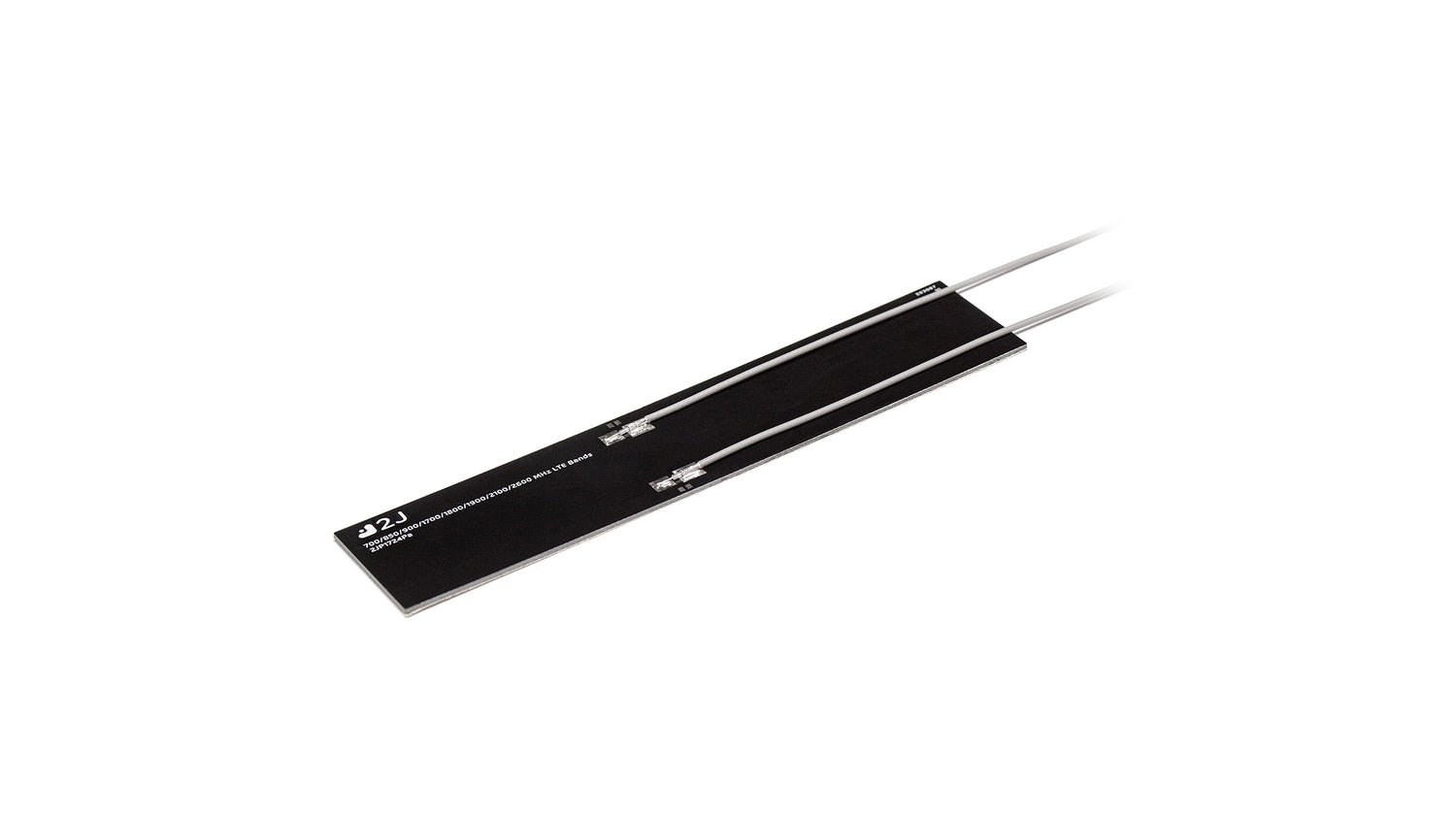

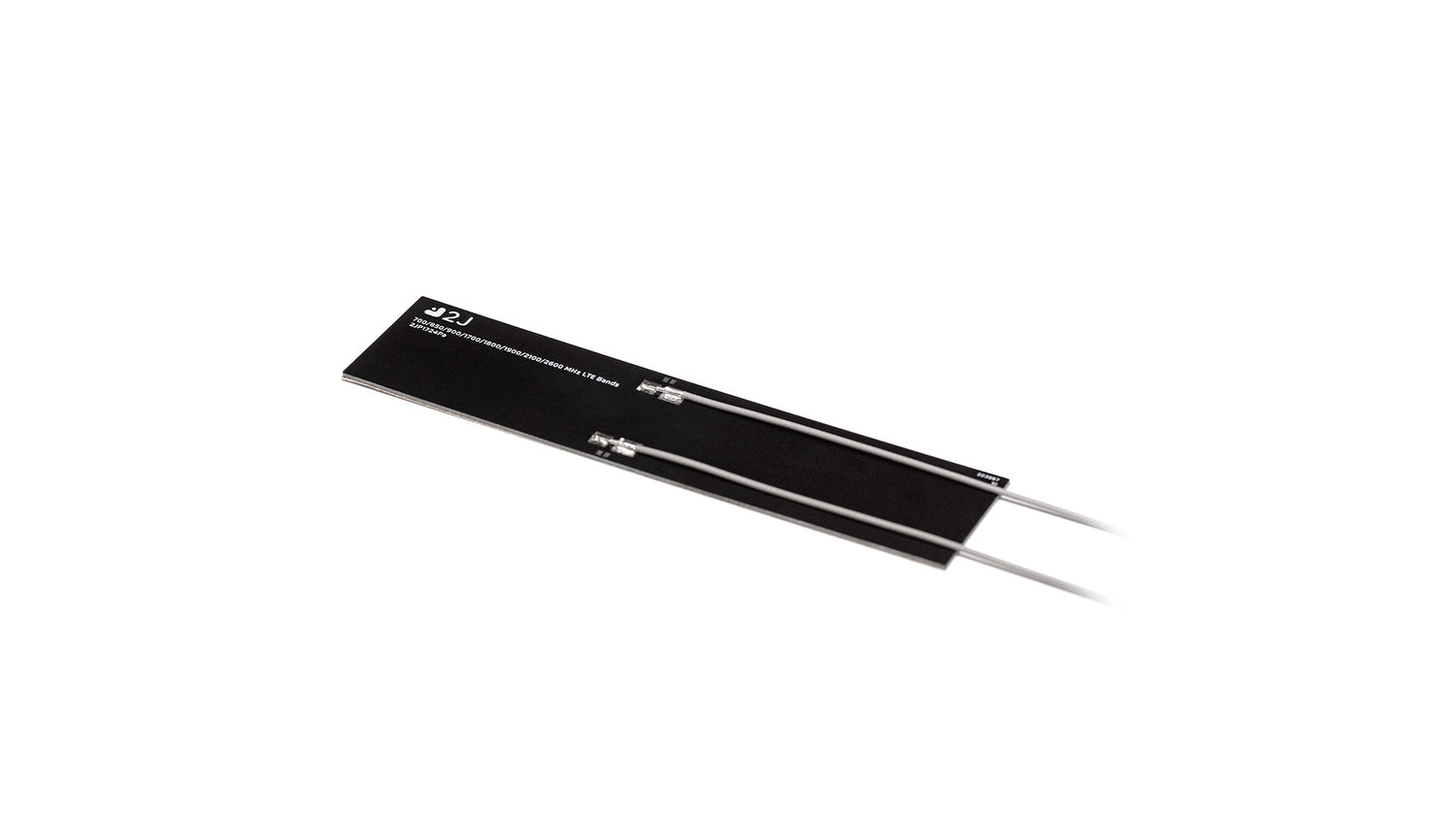

This high-performance embedded antenna is designed for reliable 4G/LTE, 3G, and 2G connectivity in a wide range of applications. Its 2-in-1 MIMO configuration ensures enhanced data throughput and signal stability, making it ideal for demanding environments such as IoT devices, robotics, wearables, asset tracking, and smart metering. The rigid, ground plane independent design allows for flexible integration into internal device layouts, while the self-adhesive mounting simplifies installation and ensures secure placement.
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE, 3G, 2G
Location: Internal
LPWAN & IoT Communication: FirstNet, LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Rigid
Type: Combination
Dimensions: 138 × 34 × 0.8 mm
Connection 1 - 4G LTE/3G/2G
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.2:1, ~4.0:1, ~2.8:1
Efficiency (%): ~28.1, ~45.4, ~47.3
Peak Gain (dBi): ~-1.8, ~2.1, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 4G LTE/3G/2G
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.0:1, ~3.7:1, ~2.5:1
Efficiency (%): ~34.7, ~49.3, ~50.3
Peak Gain (dBi): ~0.7, ~3.0, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JP1724Pa",
"title": "4G LTE/3G/2G MIMO Rigid Embedded Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "138 × 34 × 0.8",
"elements": [
{
"elementID": "Cellular 1 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.9",
"vswr": "~3.2:1",
"efficiency_percent": "~28.1",
"peakGain_dbi": "~-1.8",
"averageGain_db": "~-6.1"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-5.0",
"vswr": "~4.0:1",
"efficiency_percent": "~45.4",
"peakGain_dbi": "~2.1",
"averageGain_db": "~-3.6"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-6.6",
"vswr": "~2.8:1",
"efficiency_percent": "~47.3",
"peakGain_dbi": "~1.8",
"averageGain_db": "~-3.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 2 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.9",
"vswr": "~3.0:1",
"efficiency_percent": "~34.7",
"peakGain_dbi": "~0.7",
"averageGain_db": "~-4.6"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-5.2",
"vswr": "~3.7:1",
"efficiency_percent": "~49.3",
"peakGain_dbi": "~3.0",
"averageGain_db": "~-3.1"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-7.3",
"vswr": "~2.5:1",
"efficiency_percent": "~50.3",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-3.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular 1",
"type": "U.FL",
"cableType": "1.37mm Mini-Coax",
"cableLength_mm": 150
},
{
"elementIDRef": "Cellular 2",
"type": "U.FL",
"cableType": "1.37mm Mini-Coax",
"cableLength_mm": 150
}
]
}
