2J | SKU: 2JP2115P_3-015MC137-UFL

2JP2115P ISM Antenna adhesive U.FL 15cm

Name: 2JP2115P ISM Antenna adhesive U.FL 15cm
Brand: 2J
SKU: 2JP2115P_3-015MC137-UFL
Availability: InStock

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

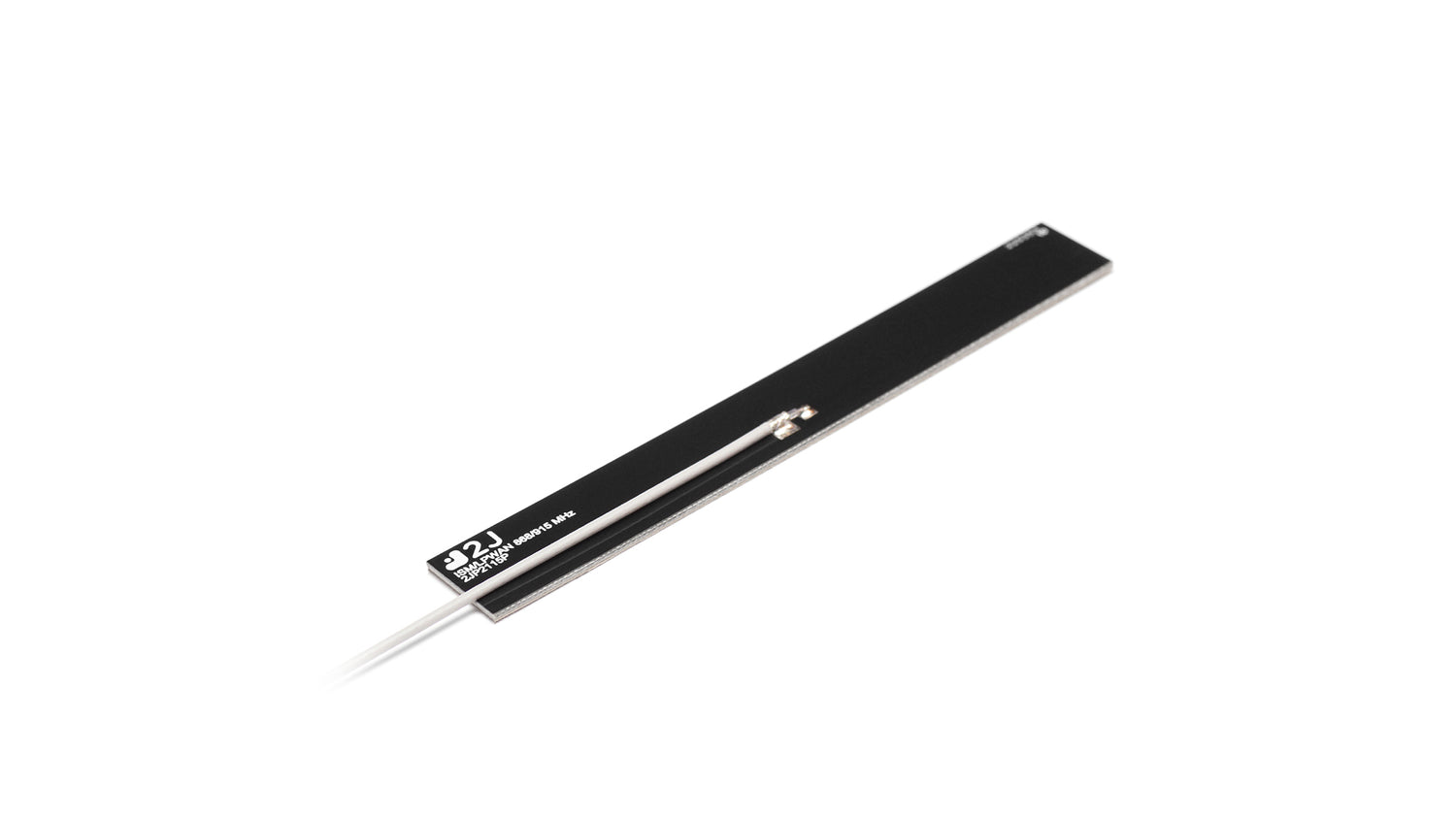

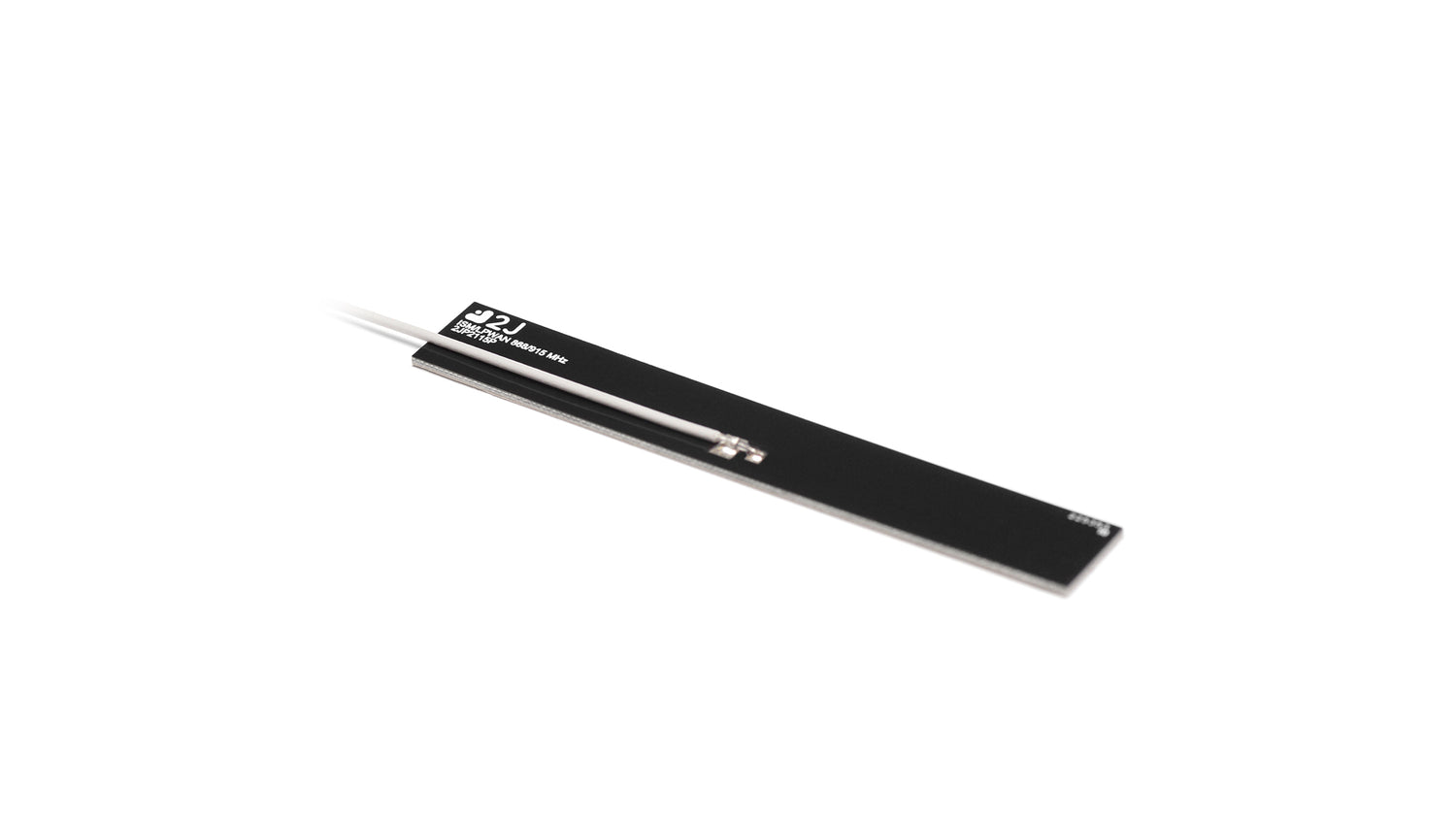

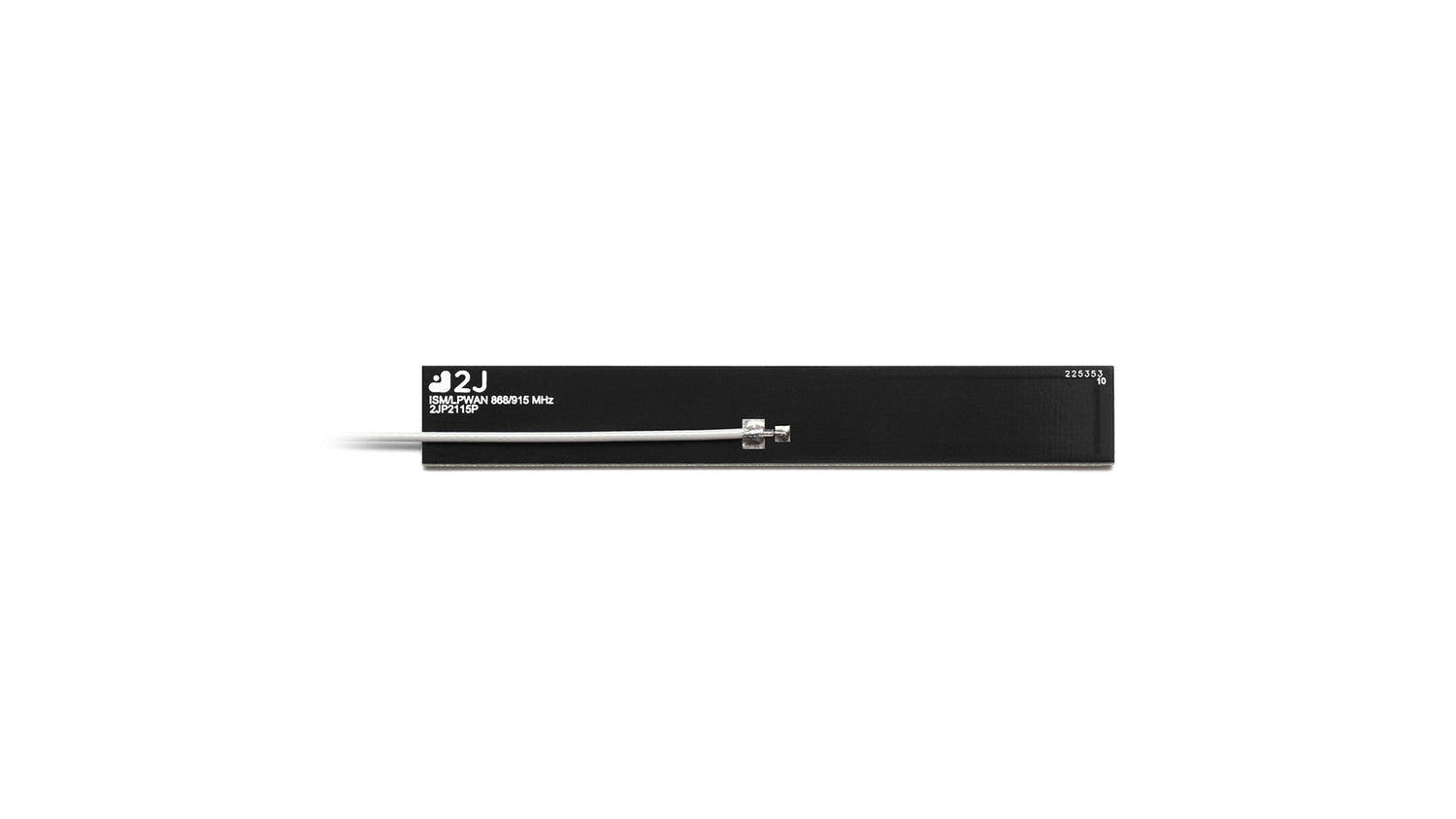

This ultra-thin, high-efficiency rigid fiberglass antenna is designed for NB-IoT and ISM applications where space is limited. Its omnidirectional design ensures 360° coverage, making it ideal for smart metering, M2M, precision agriculture, remote keyless systems, healthcare, and fitness monitoring devices. The antenna supports both 868 MHz (Europe) and 915 MHz (US) ISM bands, offering worldwide coverage for a wide range of industrial and consumer applications. The self-adhesive backing allows for easy integration into compact devices.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Installation / Environmental

The compact design antenna comes with a self-adhesive peel-and-stick backside, making installations simplistic in even very space-challenged designs.

Connector & Cable

Connector Type: U.FL
Cable Length: 15cm
Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single
Dimensions: 95.5 × 14 × 0.8 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.9:1, ~2.4:1
Efficiency (%): ~90.3, ~84.4
Peak Gain (dBi): ~4.0, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP2115P", "title": "868/915 MHz ISM Rigid Fiberglass Adhesive Antenna", "mountingType": "Self-Adhesive", "ipRating": null, "dimensions_mm": "95.5 x 14 x 0.8", "elements": [ { "elementID": "ISM 868/915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "Sigfox", "LoRa", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-10.4", "vswr": "~1.9:1", "efficiency_percent": "~90.3", "peakGain_dbi": "~4.0", "averageGain_db": "~-0.4" }, { "range_mhz": "902-928", "returnLoss_db": "~-8.0", "vswr": "~2.4:1", "efficiency_percent": "~84.4", "peakGain_dbi": "~3.8", "averageGain_db": "~-0.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868/915 MHz", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 100 } ] }
