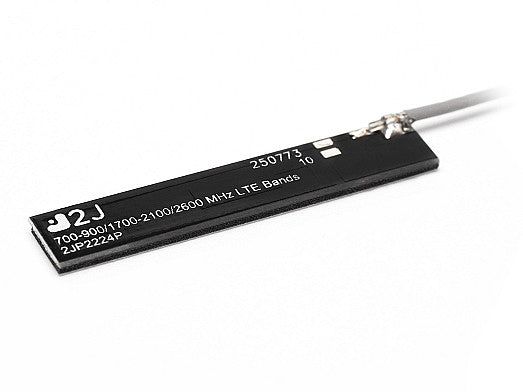

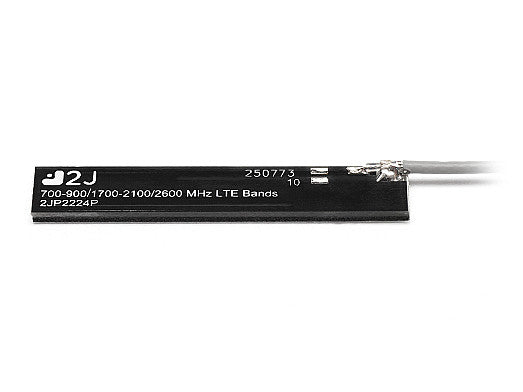

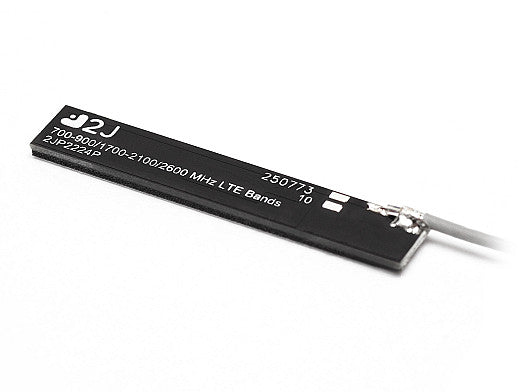

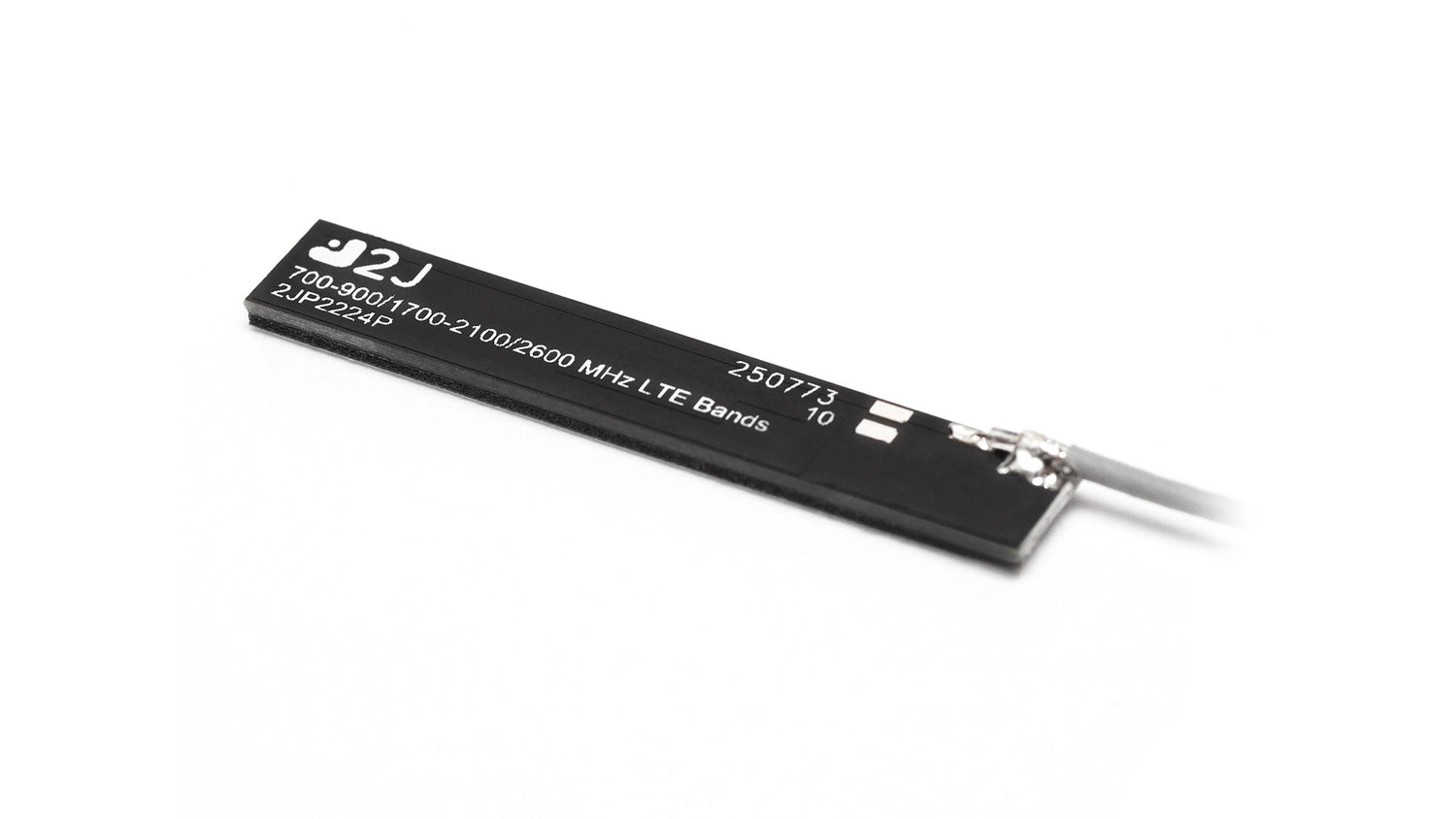

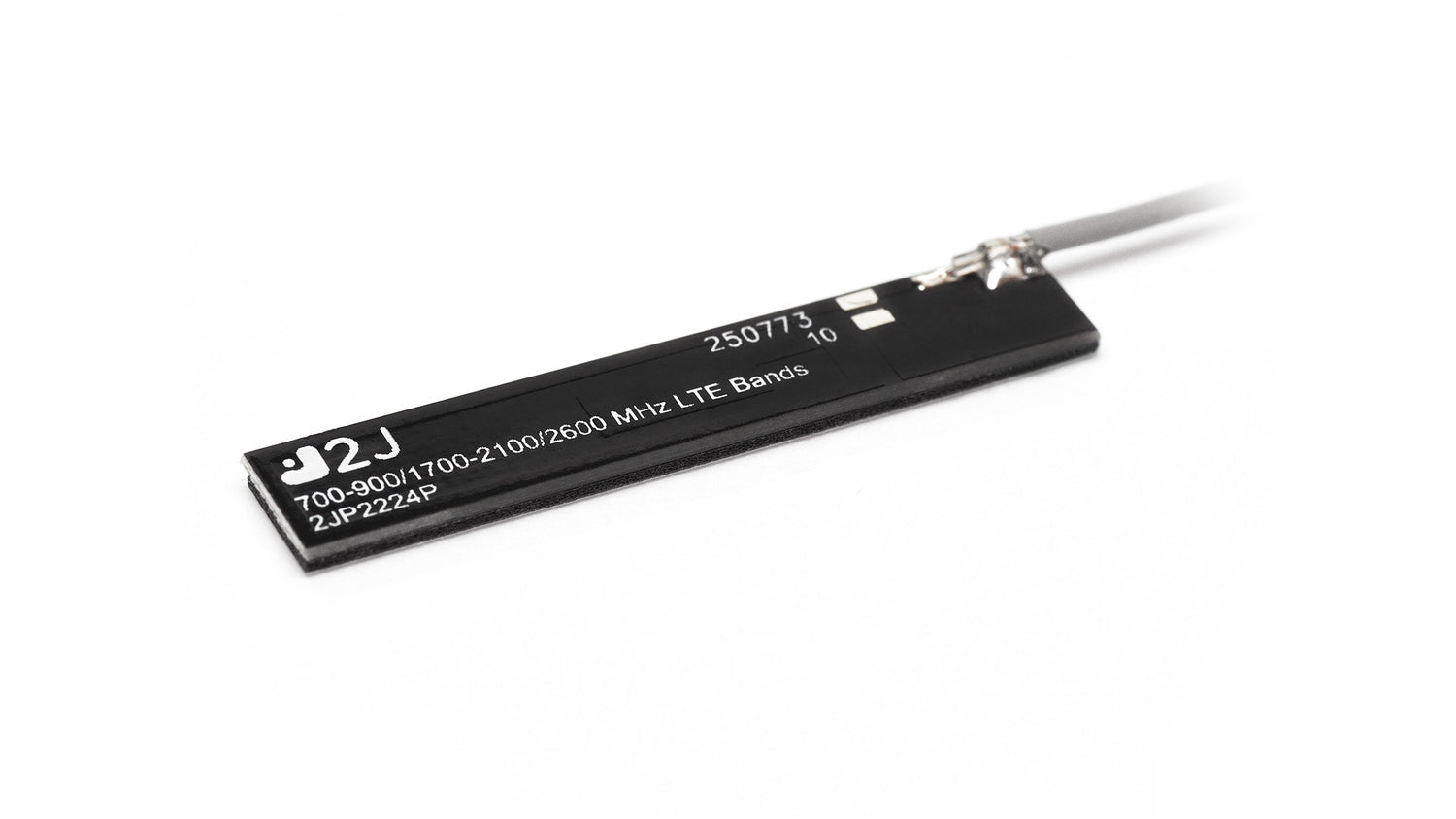

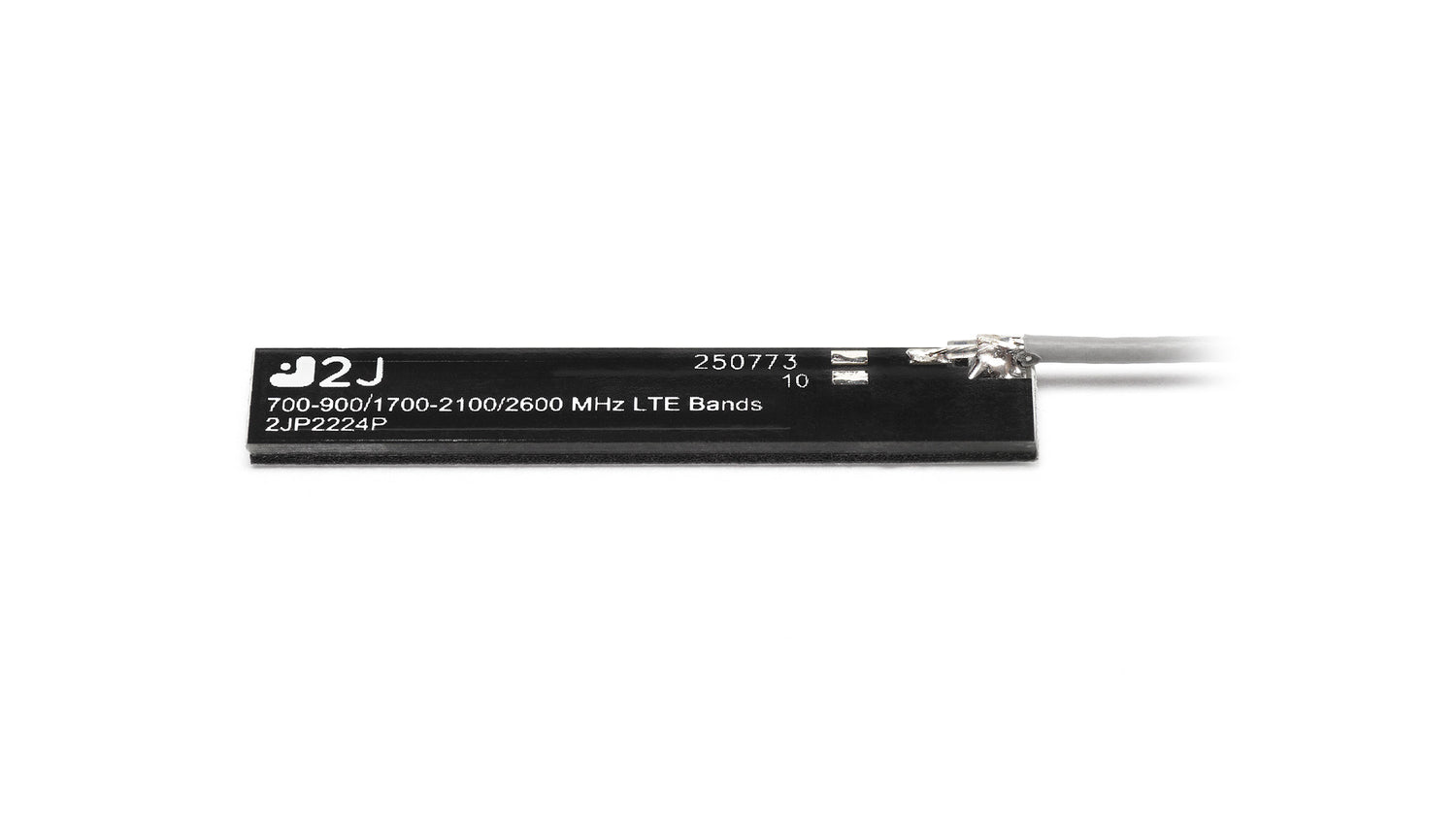

This high-performance rigid antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide frequency range. Its compact, ground plane independent design and self-adhesive mounting make it ideal for integration into a variety of internal applications, including consumer electronics, robotics, wearables, and IoT devices. The antenna supports a broad spectrum of cellular bands, ensuring compatibility with global networks and providing robust signal quality for mission-critical communications, asset tracking, and smart devices.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single
Cellular Technologies: 4G/LTE, 3G, 2G
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.1:1, ~3.1:1, ~2.9:1
Efficiency (%): ~30.8, ~41.1, ~49.5
Peak Gain (dBi): ~-1.8, ~1.3, ~1.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JP2224P-SP",
"title": "4G LTE/3G/2G High Performance Rigid Customizable Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "40 x 7 x 2.0",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-6.3",
"vswr": "~3.1:1",
"efficiency_percent": "~30.8",
"peakGain_dbi": "~-1.8",
"averageGain_db": "~-5.3"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-6.3",
"vswr": "~3.1:1",
"efficiency_percent": "~41.1",
"peakGain_dbi": "~1.3",
"averageGain_db": "~-3.9"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-6.7",
"vswr": "~2.9:1",
"efficiency_percent": "~49.5",
"peakGain_dbi": "~1.2",
"averageGain_db": "~-3.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "U.FL",
"cableType": "1.37mm Mini-Coax",
"cableLength_mm": 150
}
]
}
