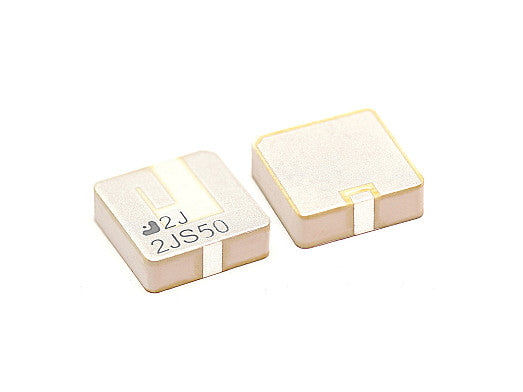

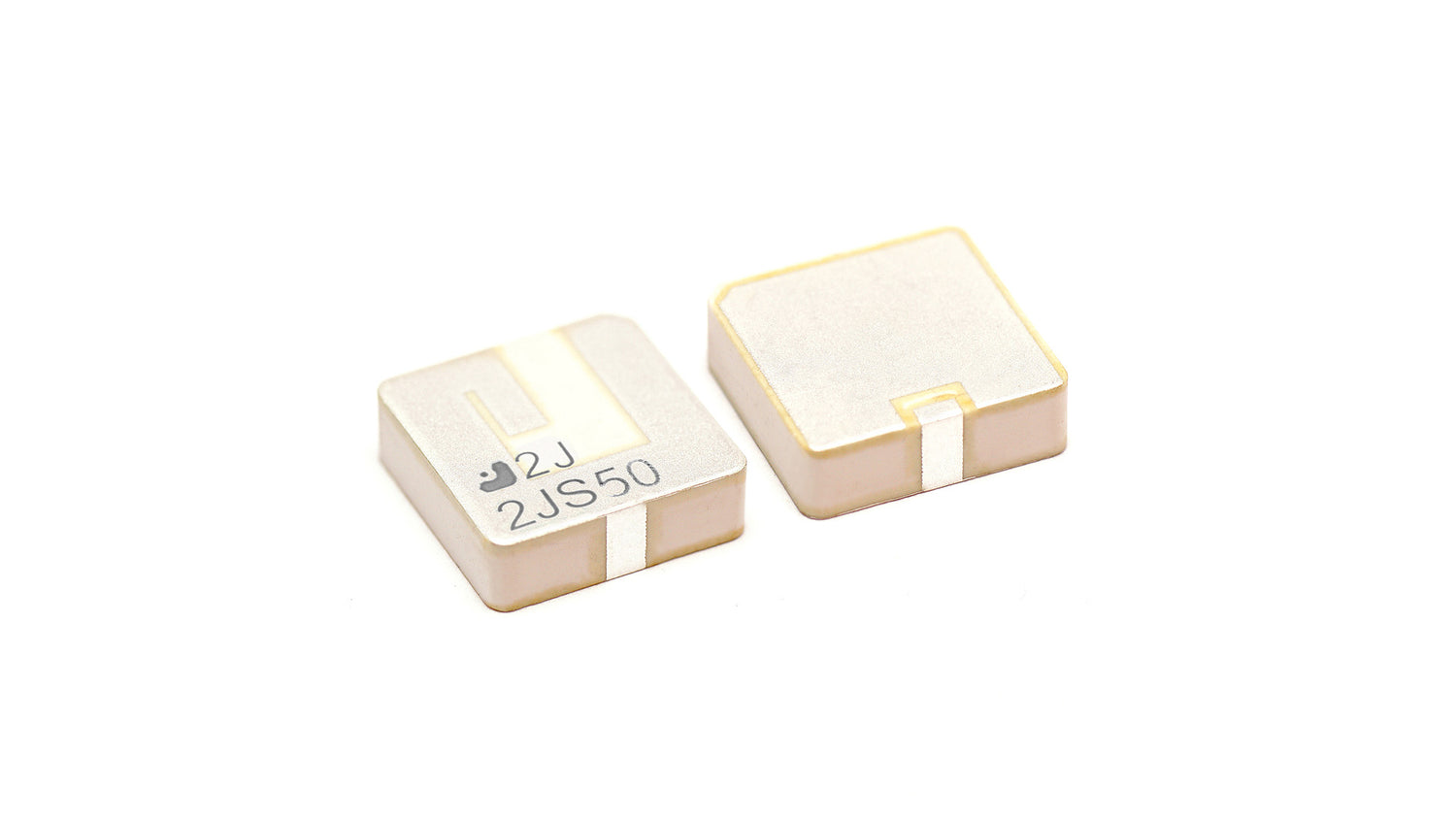

2JS50 ISM Antenna surface mount hemispherical

This compact hemispherical antenna is designed for high-performance 5.0 GHz ISM band applications, providing reliable short-range wireless connectivity for Wi-Fi, Bluetooth, ZigBee, and ISM standards. Its directional hemispherical radiation pattern and up to 5.1 dBi peak gain make it ideal for integration into smart devices, consumer electronics, and commercial or residential wireless networks. The ceramic housing ensures durability in extreme environmental conditions, and its ground plane dependent design allows for easy integration within a minimum area of 70x70mm. Delivered on tape and reel, it is optimized for automated manufacturing processes.

Connections

5.0GHz/WiFi/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: SMT Patch
Location: Internal
Mounting: Surface Mount Ceramic
Type: Single

Connection 1 - 5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 4920-5925 MHz
VSWR: ~2.5:1
Efficiency (%): ~65.9
Peak Gain (dBi): ~5.1
Impedance (Ohm): 50
Typical Shear Force: 50Kgf
