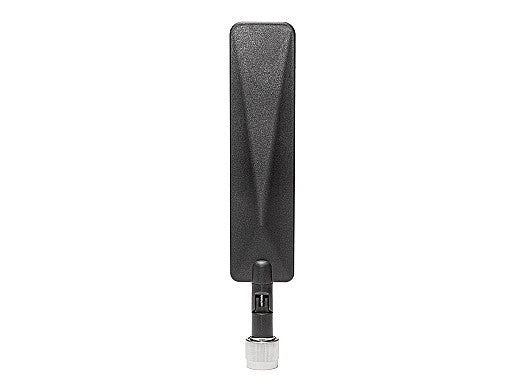

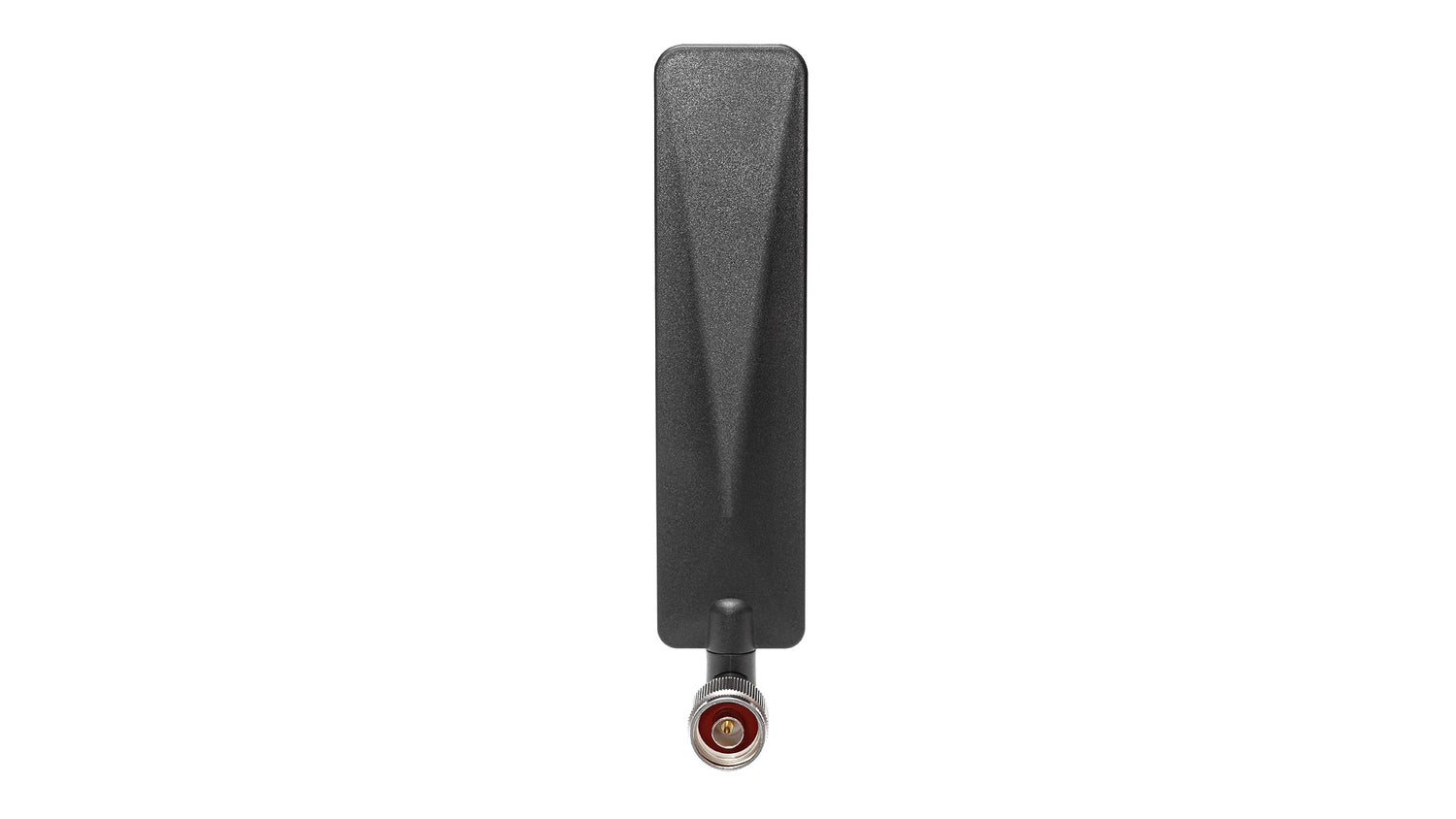

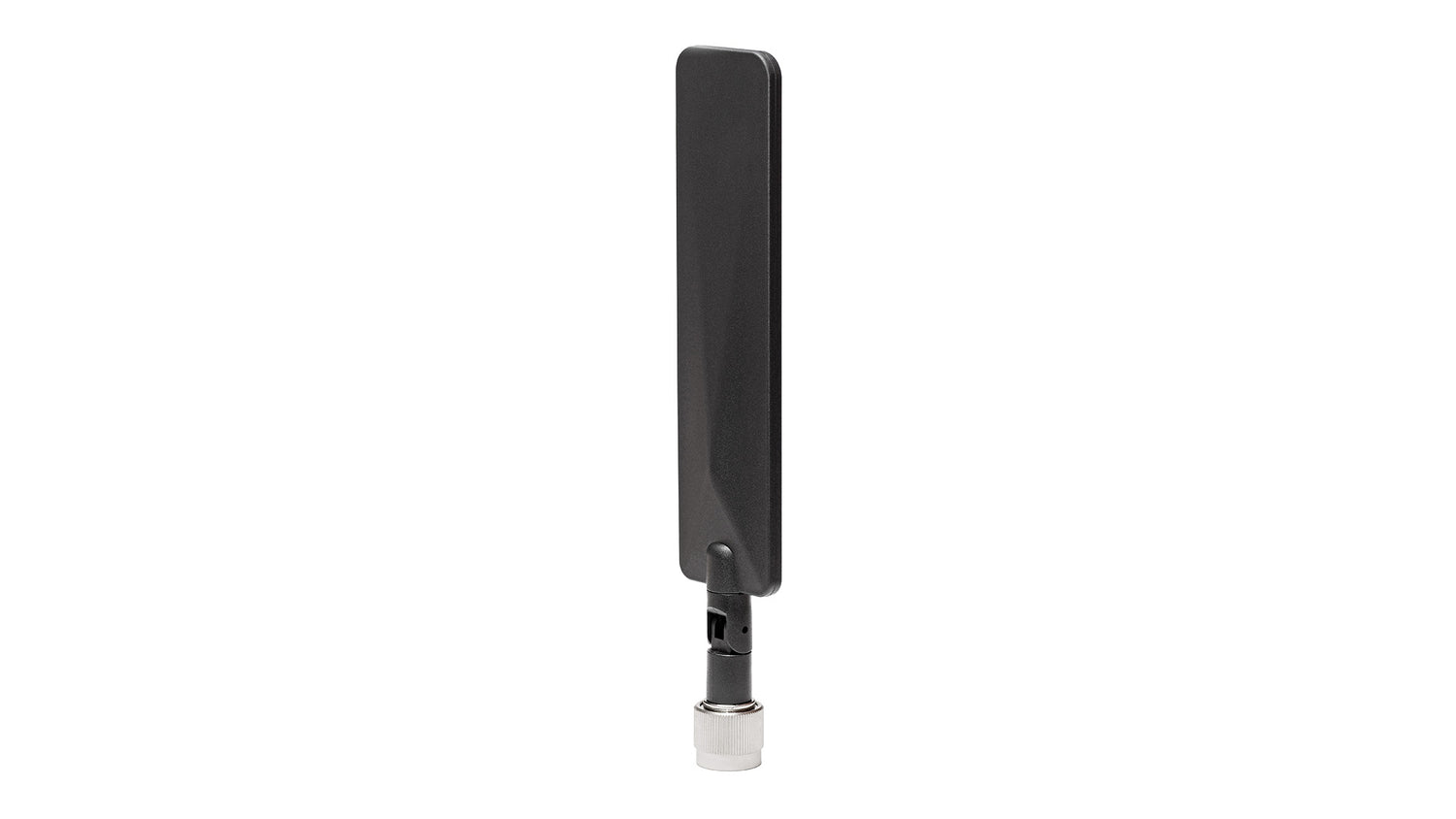

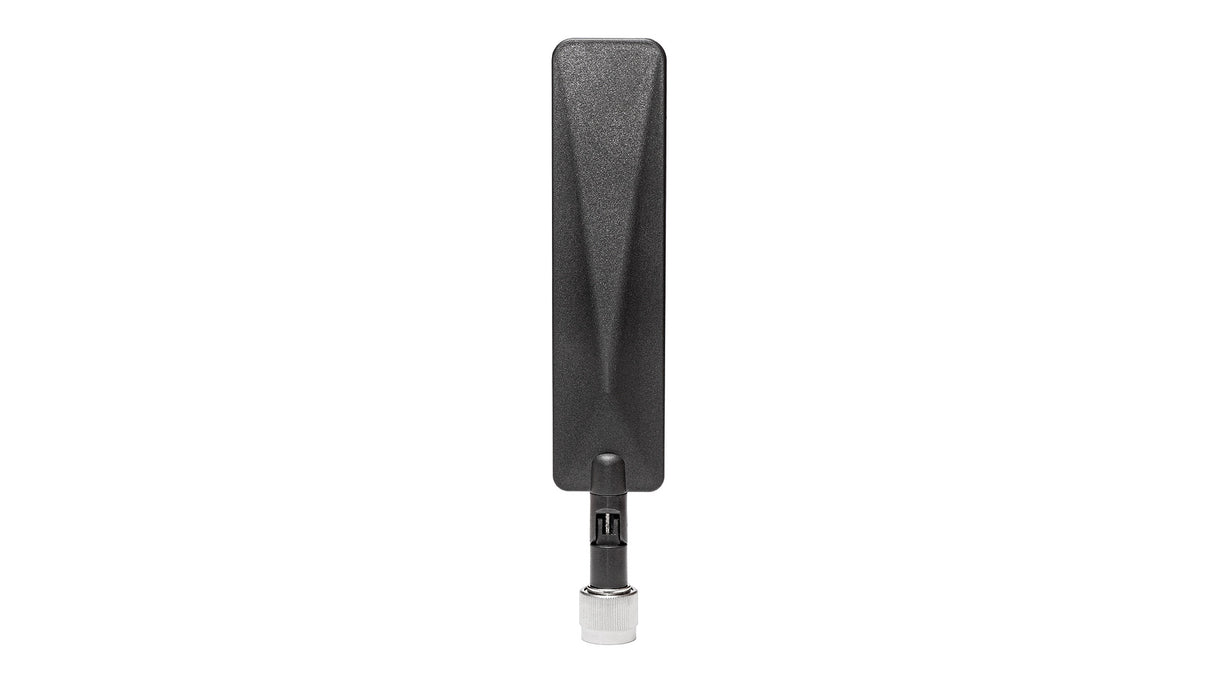

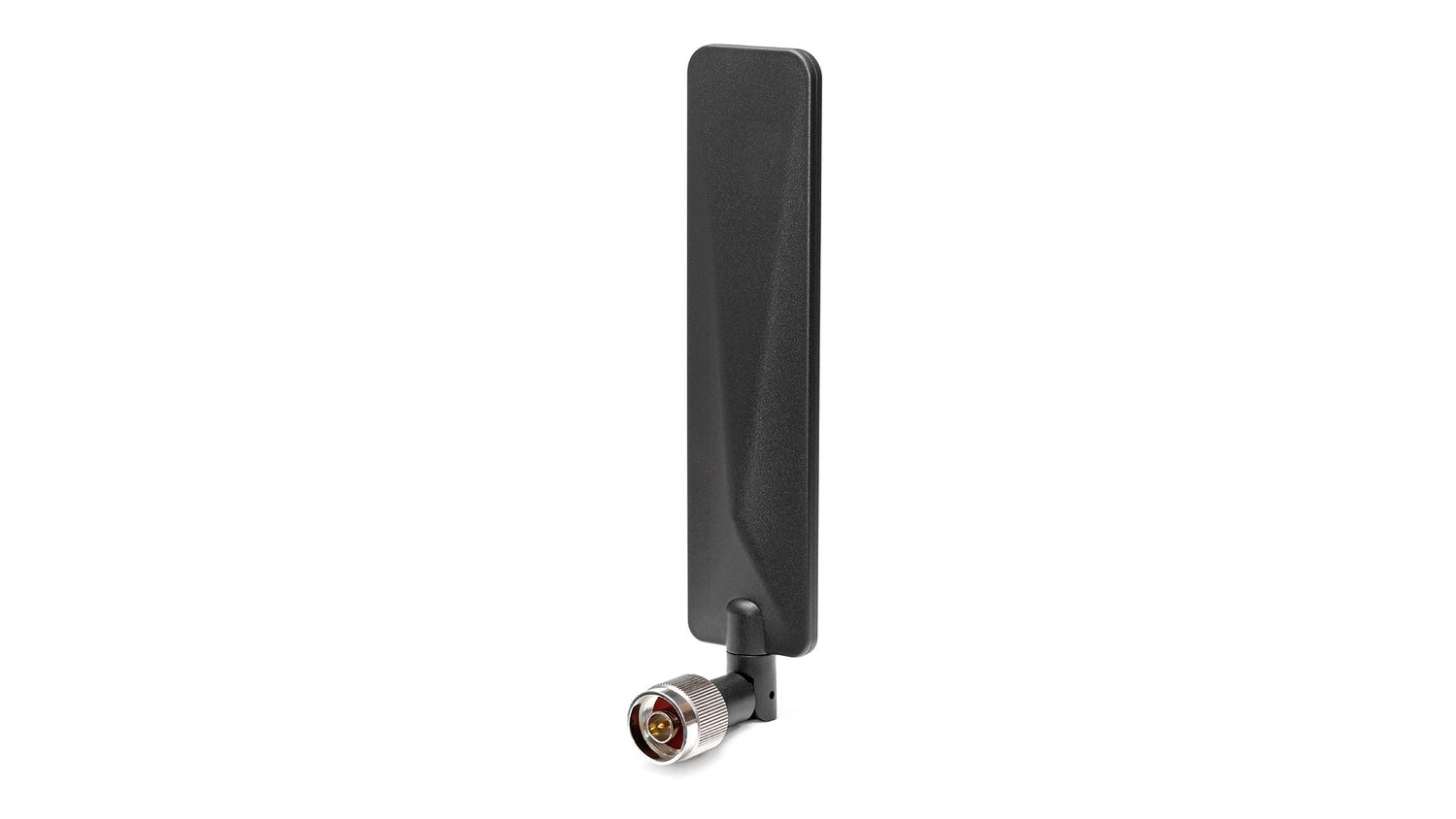

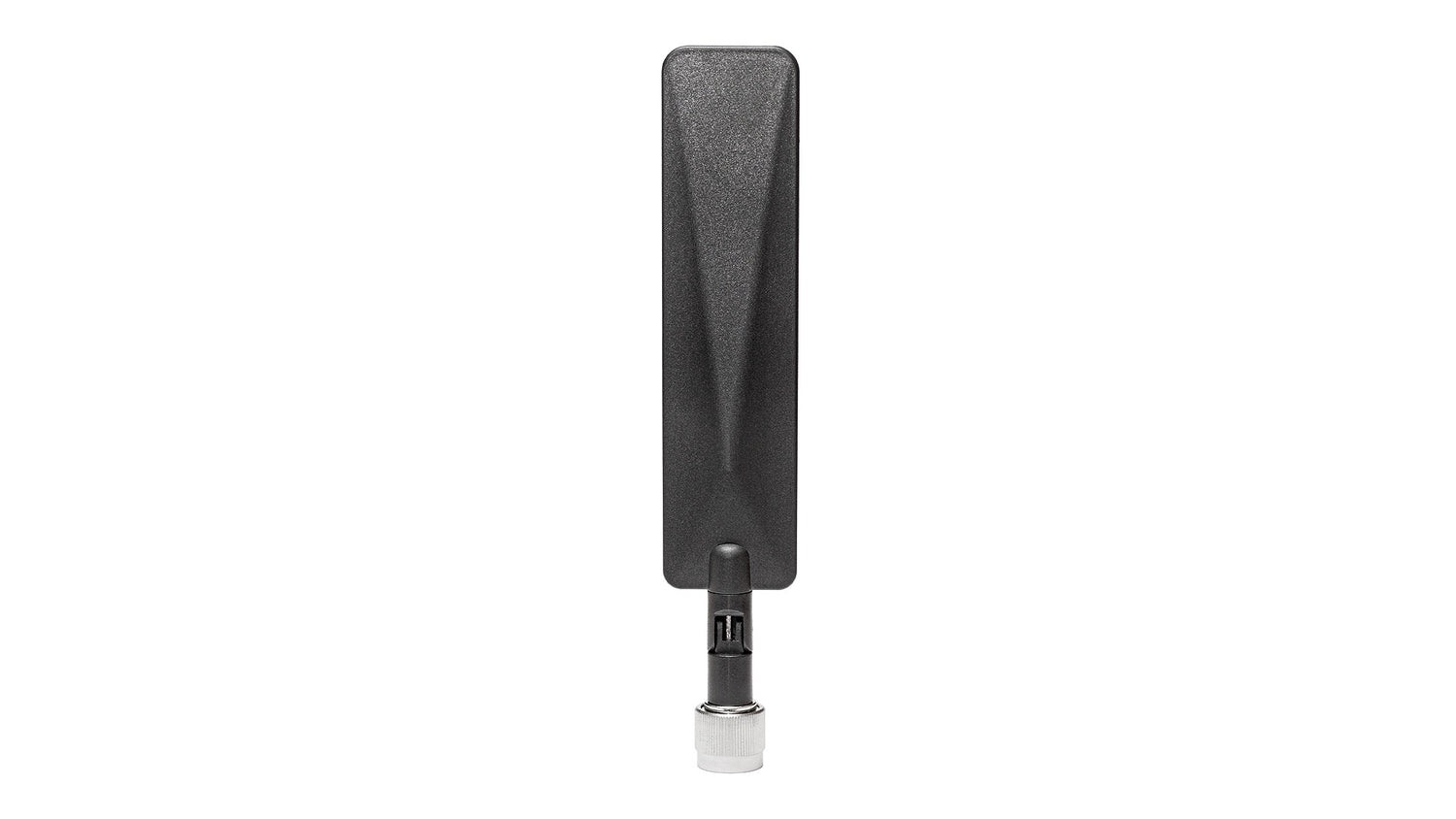

2JW0124-C955N 4G/LTE connector mount Dipole Antenna N-Male

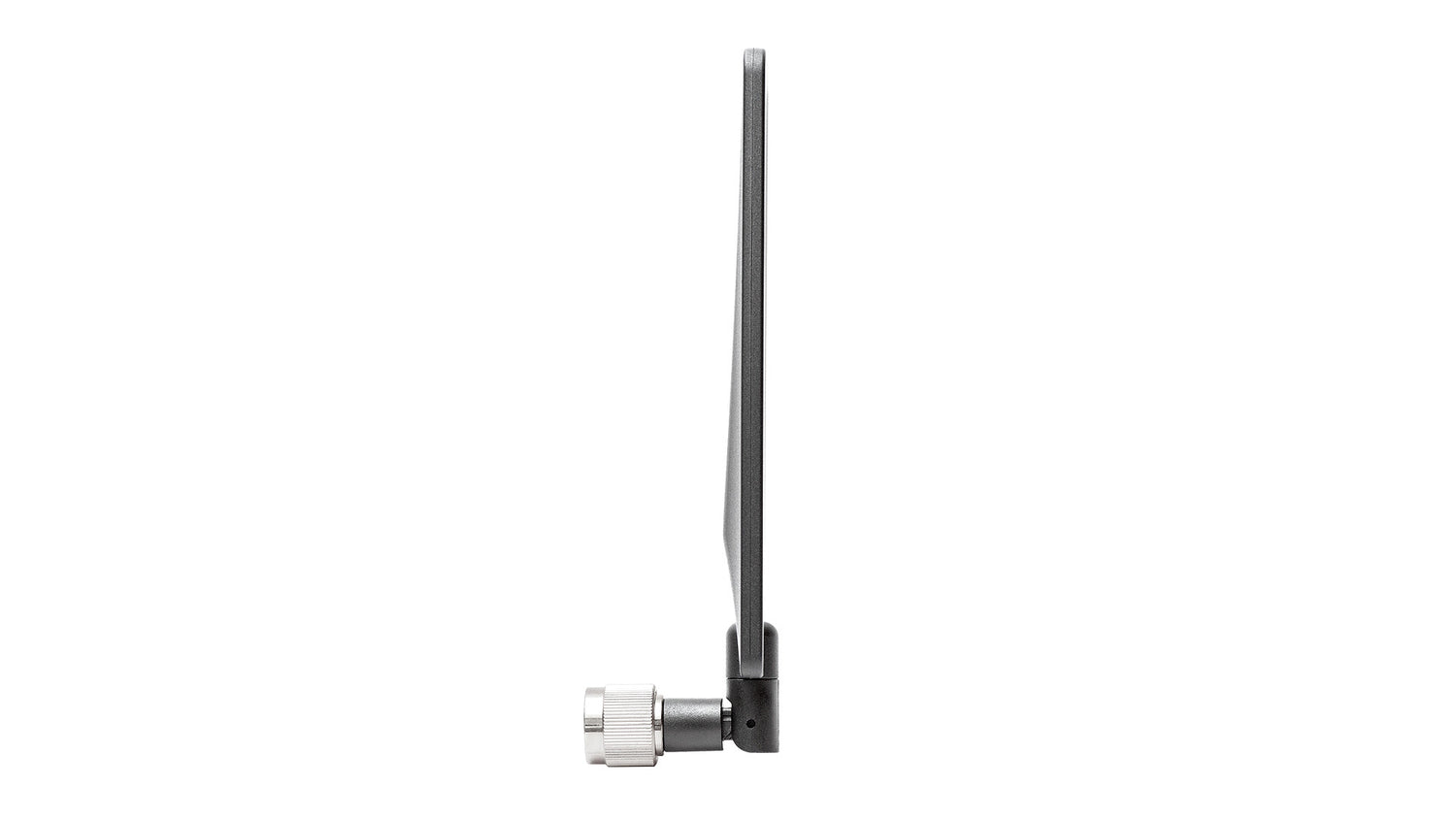

This ultra wideband antenna delivers high performance for worldwide 4G LTE applications, with full backward compatibility for 3G and 2G networks. Its high efficiency, omni-directional design ensures stable connectivity and high data throughput, making it ideal for access points, routers, small base stations, repeaters, boosters, fleet management, and telematics devices. The antenna features a 360-degree swivel and a hinged connector up to 90 degrees, providing flexible installation and orientation options, especially for MIMO systems. Two mounting swivel variations are available for different device configurations. For alternative swivel orientations, see 2JW0124a-C955N antenna.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: N-Male

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - CELLULAR/4G LTE

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~1.6:1, ~2.2:1
Efficiency (%): ~62, ~75, ~50
Peak Gain (dBi): ~0.4, ~2.6, ~1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
