Description

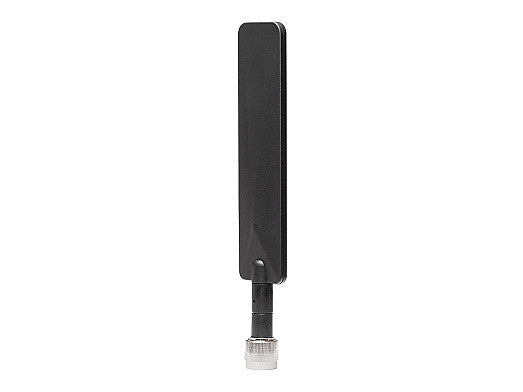

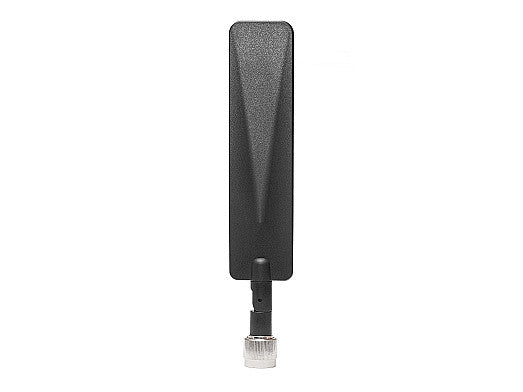

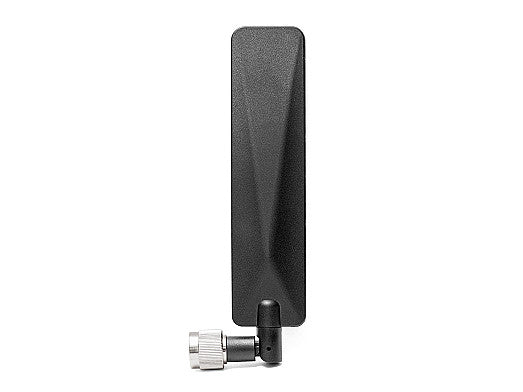

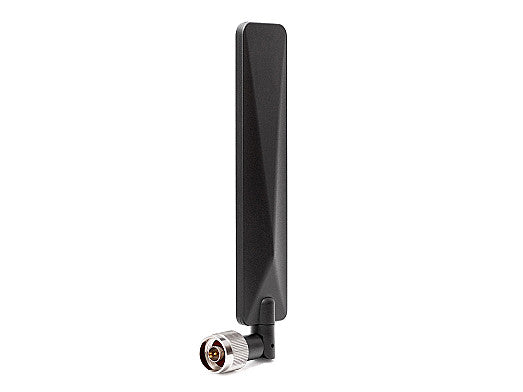

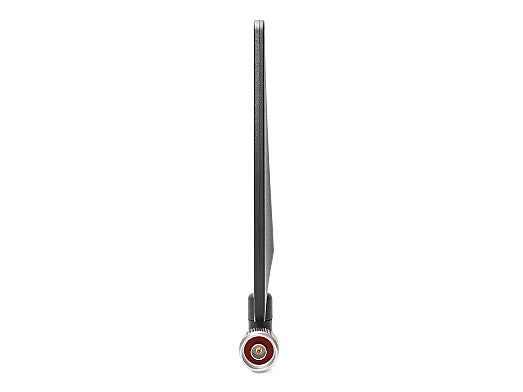

This ultra wideband antenna is designed for global cellular applications, supporting 4G LTE with 2G and 3G fallback. Its high efficiency and omni-directional design ensure stable, high-throughput connectivity for access points, routers, small base stations, repeaters, boosters, fleet management, and telematics devices. The antenna features a 360-degree swivel and a hinged connector for flexible installation and optimal orientation, making it ideal for MIMO systems and multi-antenna setups. It is suitable for major carrier approvals and certification processes worldwide.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Connector & Cable
- Connector Type: N-Male
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 205 × 38 × 19 mm
Connection 1 - 4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~1.6:1, ~2.2:1
Efficiency (%): ~62, ~75, ~50
Peak Gain (dBi): ~0.4, ~2.6, ~1.3
Polarisation: Linear
Max. Input Power (W): 25
