2J  |  SKU: 2JW0302-C442B

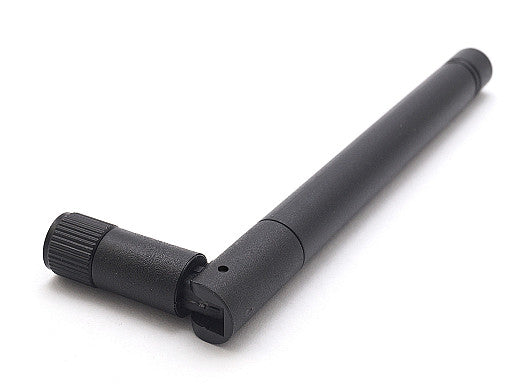

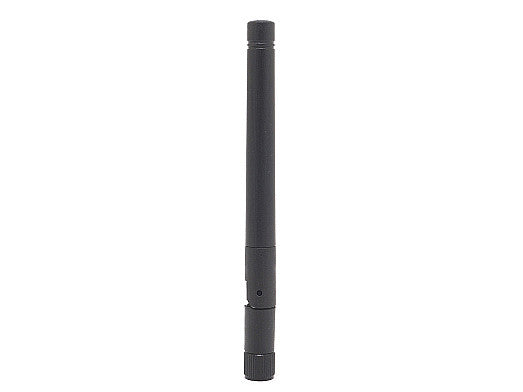

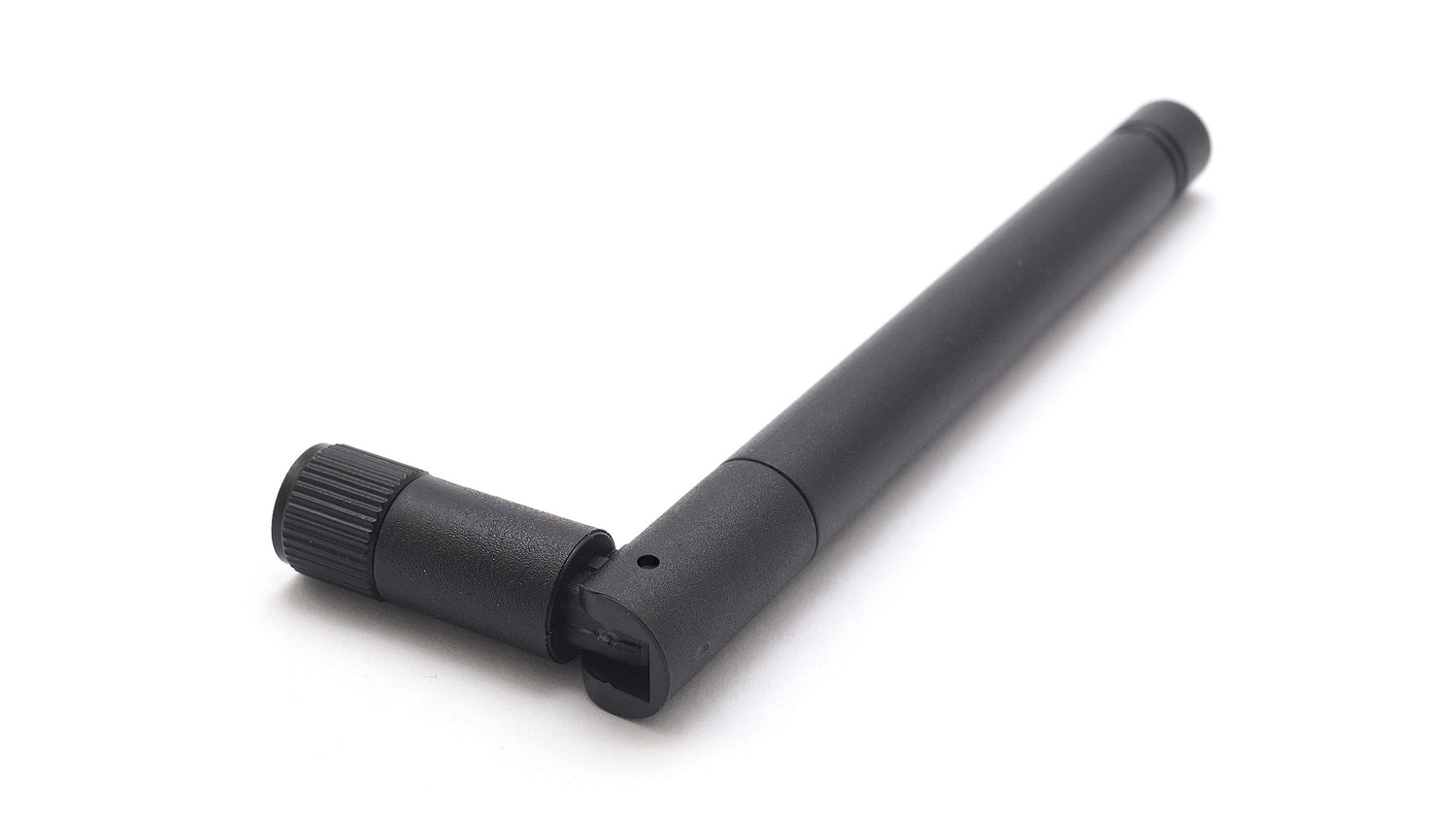

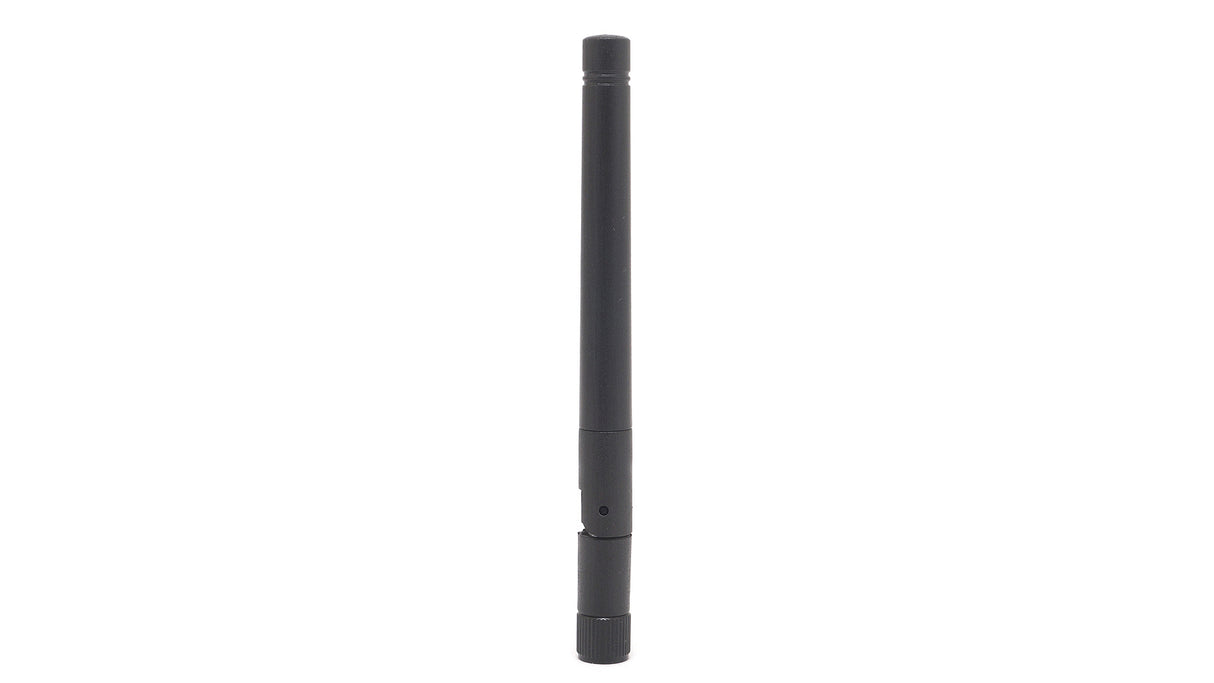

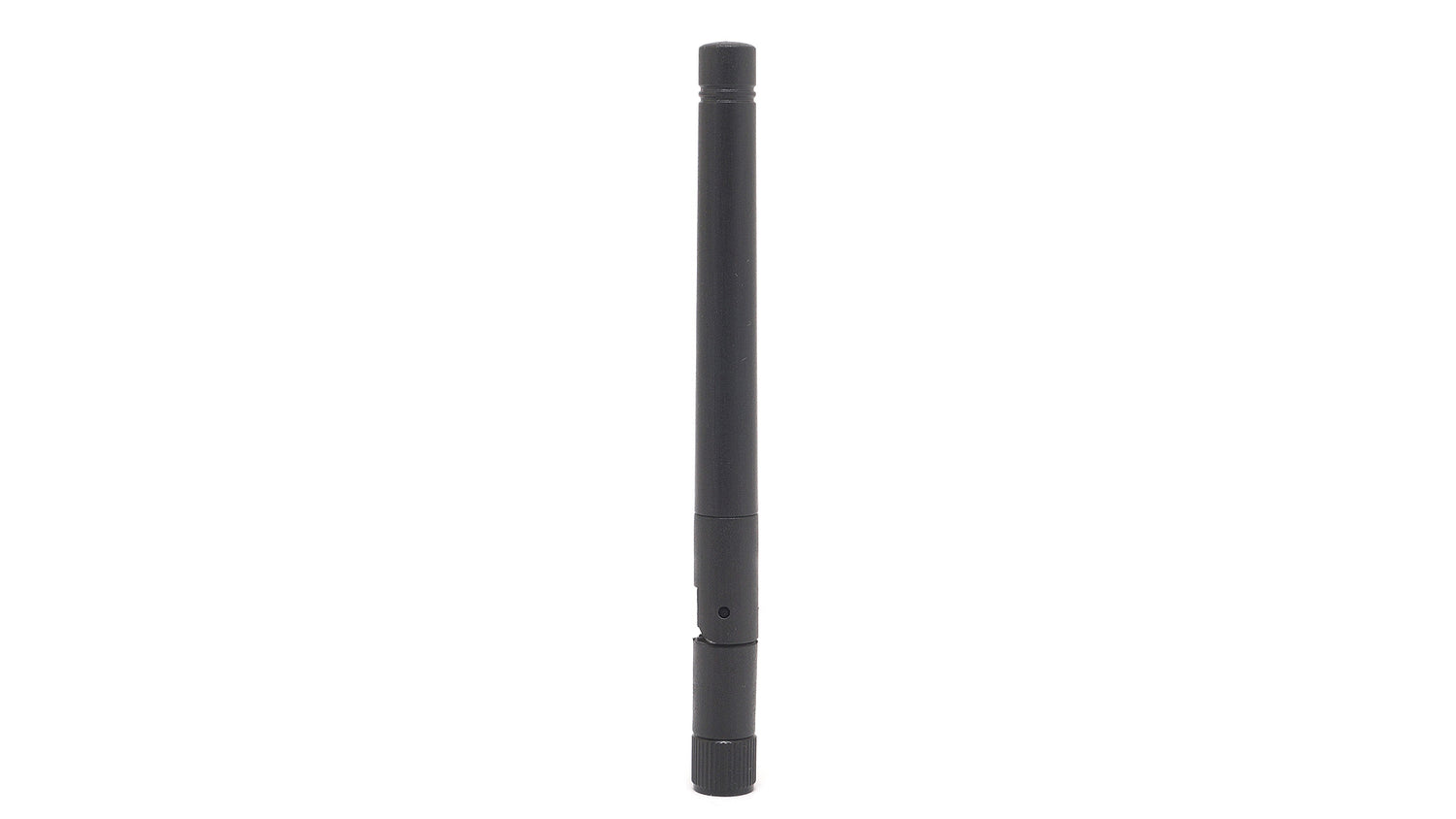

2JW0302-C442B Wi-Fi 6E/7, ISM connector mount Antenna

€3,74
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0129

Description

This high-performance antenna is designed for tri-band Wi-Fi 6E and Wi-Fi 7, as well as ISM applications. Its ground plane independent dipole design ensures reliable connectivity and high efficiency across 2.4, 5.0, and 6.0 GHz bands. The antenna is ideal for demanding environments such as smart homes, entertainment systems, medical devices, transportation, and IoT applications, where robust wireless performance is essential. The hinged connector allows for flexible installation and optimal positioning in a variety of external device setups.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~3.0:1, ~2.0:1
Efficiency (%): ~71.2, ~55.5, ~65.1
Peak Gain (dBi): ~4.8, ~7.1, ~5.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0302-C442B", "title": "WiFi 6E / WiFi 7 ISM Ground Plane Independent Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "113 × 10", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-14.1", "vswr": "~1.5:1", "efficiency_percent": "~71.2", "peakGain_dbi": "~4.8", "averageGain_db": "~-1.5" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-6.8", "vswr": "~3.0:1", "efficiency_percent": "~55.5", "peakGain_dbi": "~7.1", "averageGain_db": "~-2.4" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-12.0", "vswr": "~2.0:1", "efficiency_percent": "~65.1", "peakGain_dbi": "~5.9", "averageGain_db": "~-2.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "SMA-Male RP", "cableType": null, "cableLength_mm": null } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
