2J  |  SKU: 2JW0304-C675B

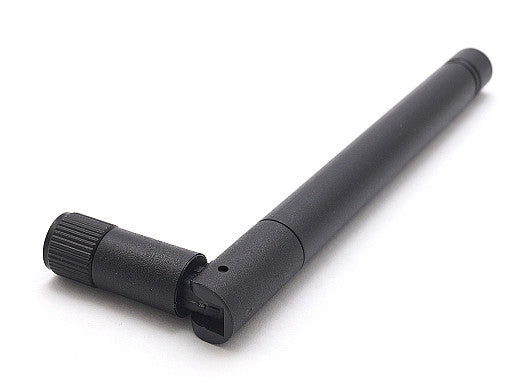

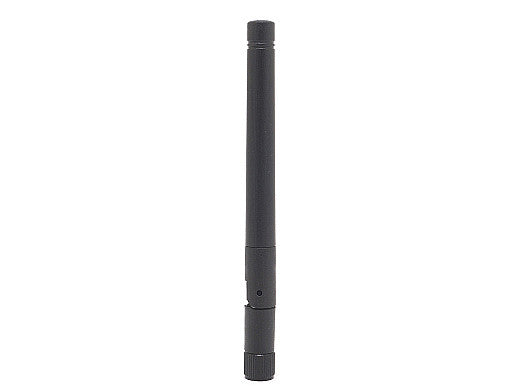

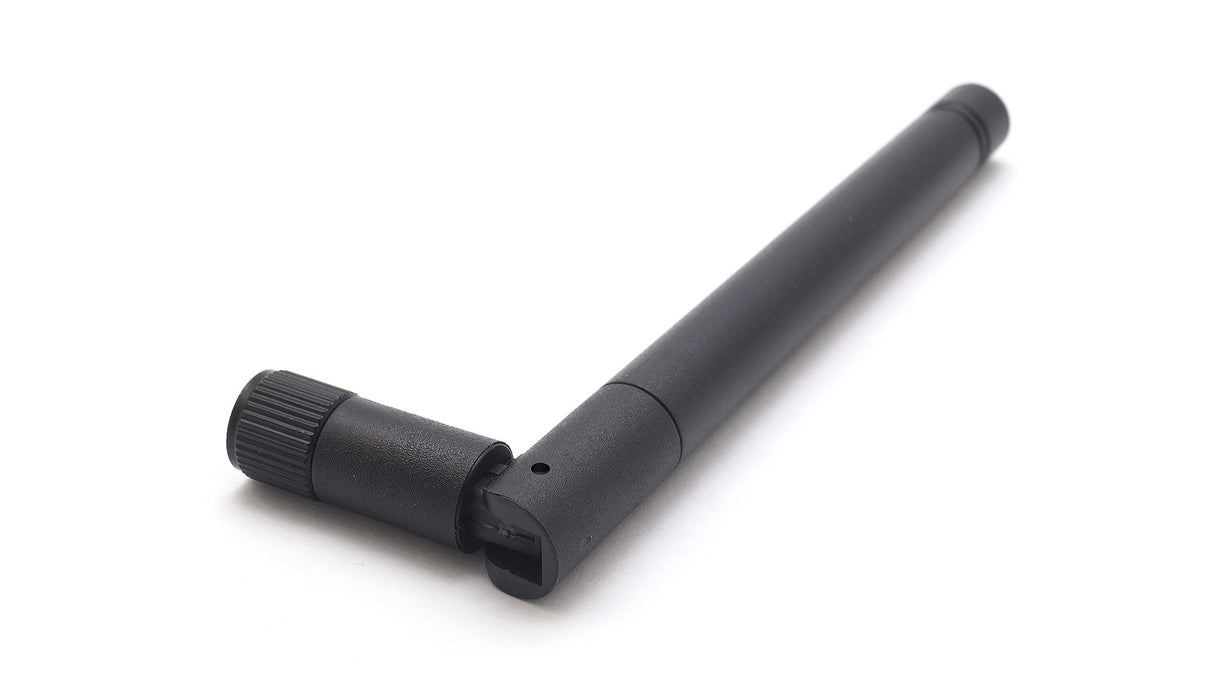

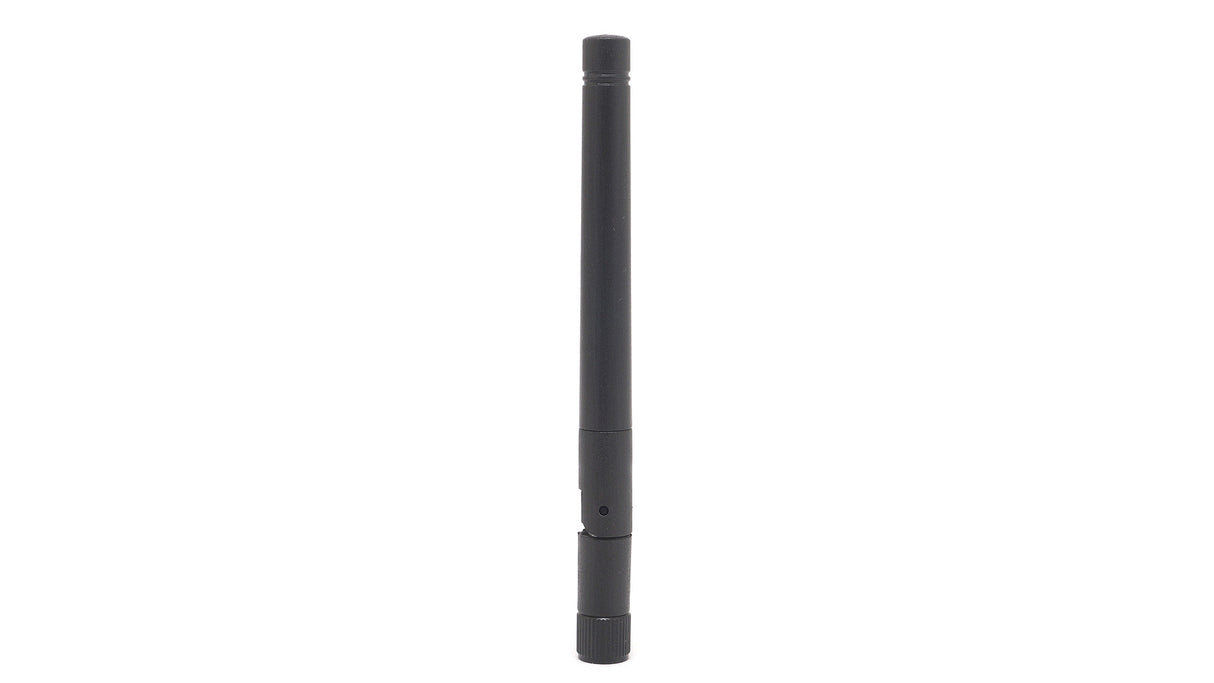

2JW0304-C675B 3G, 2G cellular connector mount Antenna

€4,30
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0127

Description

This ultra wideband antenna is designed for reliable cellular connectivity across 3G and 2G networks. Its ground plane independent dipole design ensures consistent performance, while the hinged connector allows for flexible installation in a variety of applications. Ideal for mobile networks, machine control, asset tracking, wearables, and more, this antenna delivers stable signal reception in demanding environments.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.1:1, ~1.6:1
Efficiency (%): ~30, ~59
Peak Gain (dBi): ~-1.3, ~2.0
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0304-C675B", "title": "CELLULAR Ultra Wideband Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "10 x 113", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "2G", "3G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-9.5", "vswr": "~2.1:1", "efficiency_percent": "~30", "peakGain_dbi": "~-1.3", "averageGain_db": "~-5.2" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-13.9", "vswr": "~1.6:1", "efficiency_percent": "~59", "peakGain_dbi": "~2.0", "averageGain_db": "~-2.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
