2J  |  SKU: 2JW0315-C675B

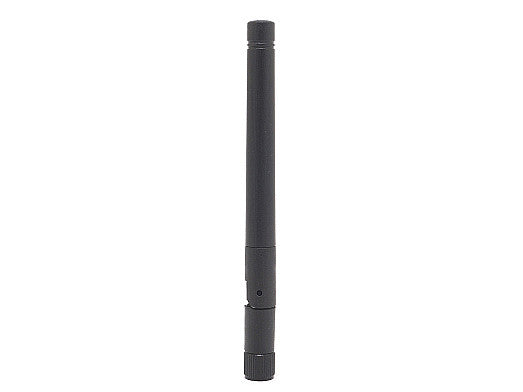

2JW0315-C675B ISM connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

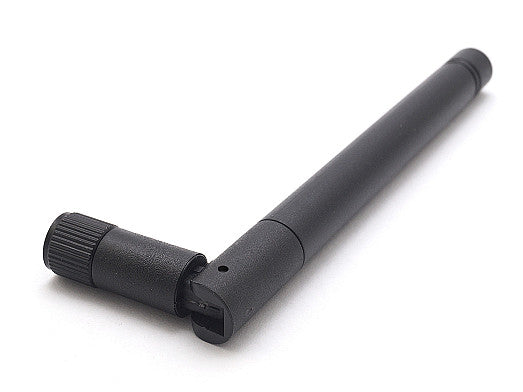

This high-performance antenna is optimized for 868 and 915 MHz ISM bands, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its ground plane independent design ensures reliable operation in a wide range of installation environments. The hinged connector allows for flexible positioning, while the dipole construction delivers strong signal performance for LPWAN, ZigBee, LoRa, Sigfox, and RFID systems.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LPWA, LoRa, Sigfox
Mounting: Connector Mount
Short-Range Wireless Standards: ZigBee
Type: Single
Dimensions: 113 × Ø 10 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.8:1, ~1.7:1
Efficiency (%): ~73.4, ~73.4
Peak Gain (dBi): ~3.8, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0315-C675B", "title": "868/915 MHz ISM Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "113 × Ø 10", "elements": [ { "elementID": "ISM 868/915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "Sigfox", "LoRa", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-10.7", "vswr": "~1.8:1", "efficiency_percent": "~73.4", "peakGain_dbi": "~3.8", "averageGain_db": "~-1.3" }, { "range_mhz": "902-928", "returnLoss_db": "~-11.5", "vswr": "~1.7:1", "efficiency_percent": "~73.4", "peakGain_dbi": "~4.0", "averageGain_db": "~-1.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868/915 MHz", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
