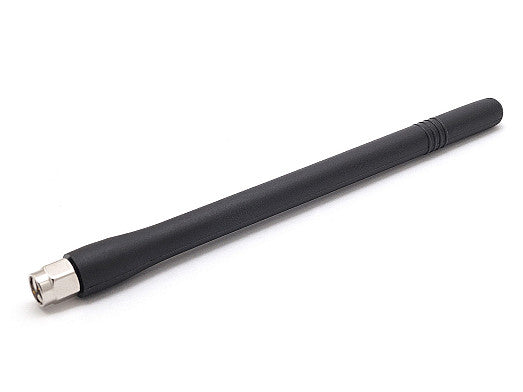

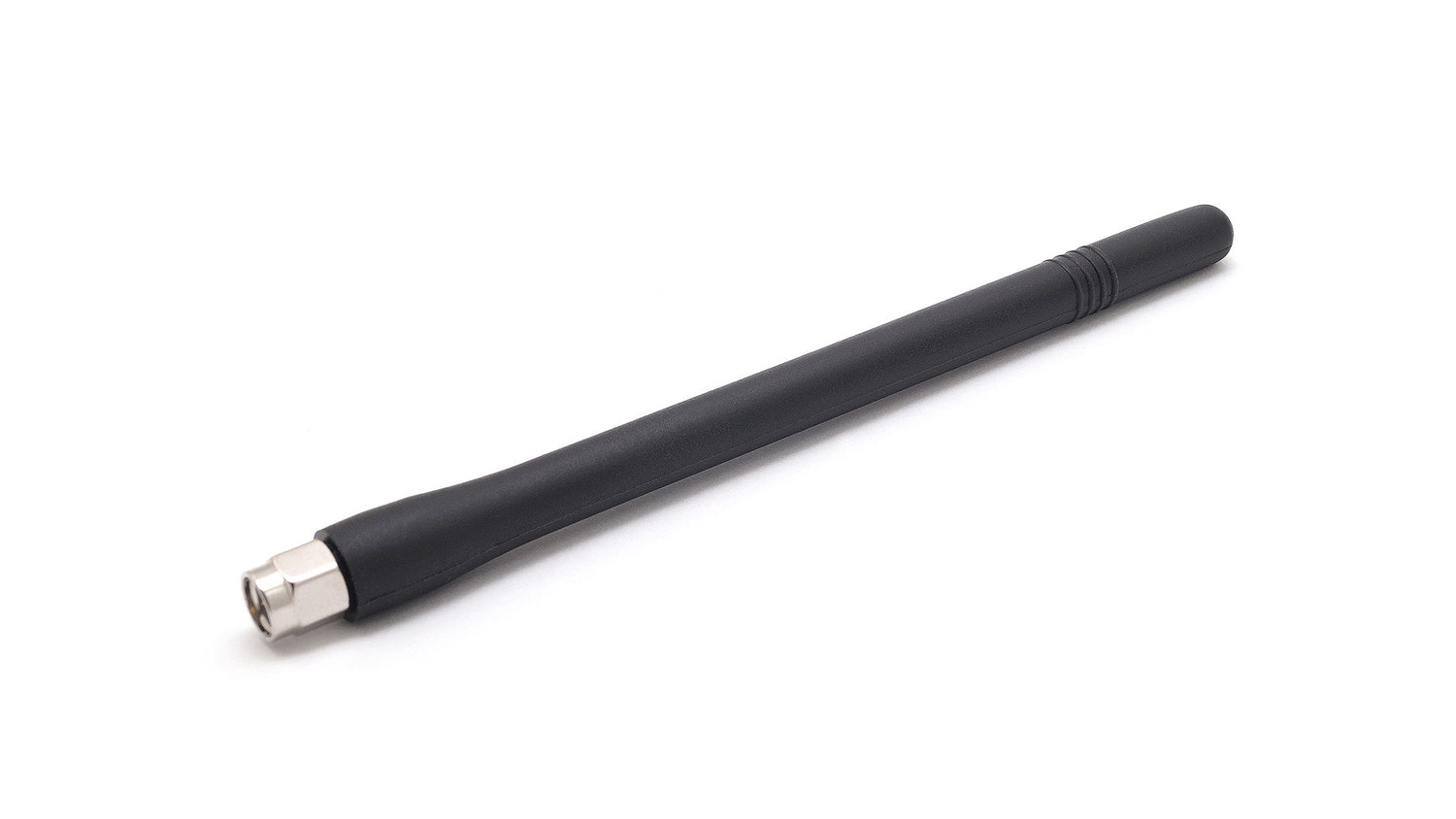

2JW0402-2.4-C20N Wi-Fi, ISM dipole Antenna connector mount

This high-efficiency dipole antenna is designed for reliable performance in the 2.4 GHz ISM band, supporting Wi-Fi, Bluetooth, ZigBee, LoRa, and SigFox applications. Its ground plane independence and flexible rod construction make it ideal for a wide range of wireless connectivity needs in environments such as smart homes, industrial automation, entertainment systems, and more. The antenna is suitable for external installations where robust and consistent wireless communication is required.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490 MHz
VSWR: ~1.9:1
Efficiency (%): ~49.6
Peak Gain (dBi): ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
