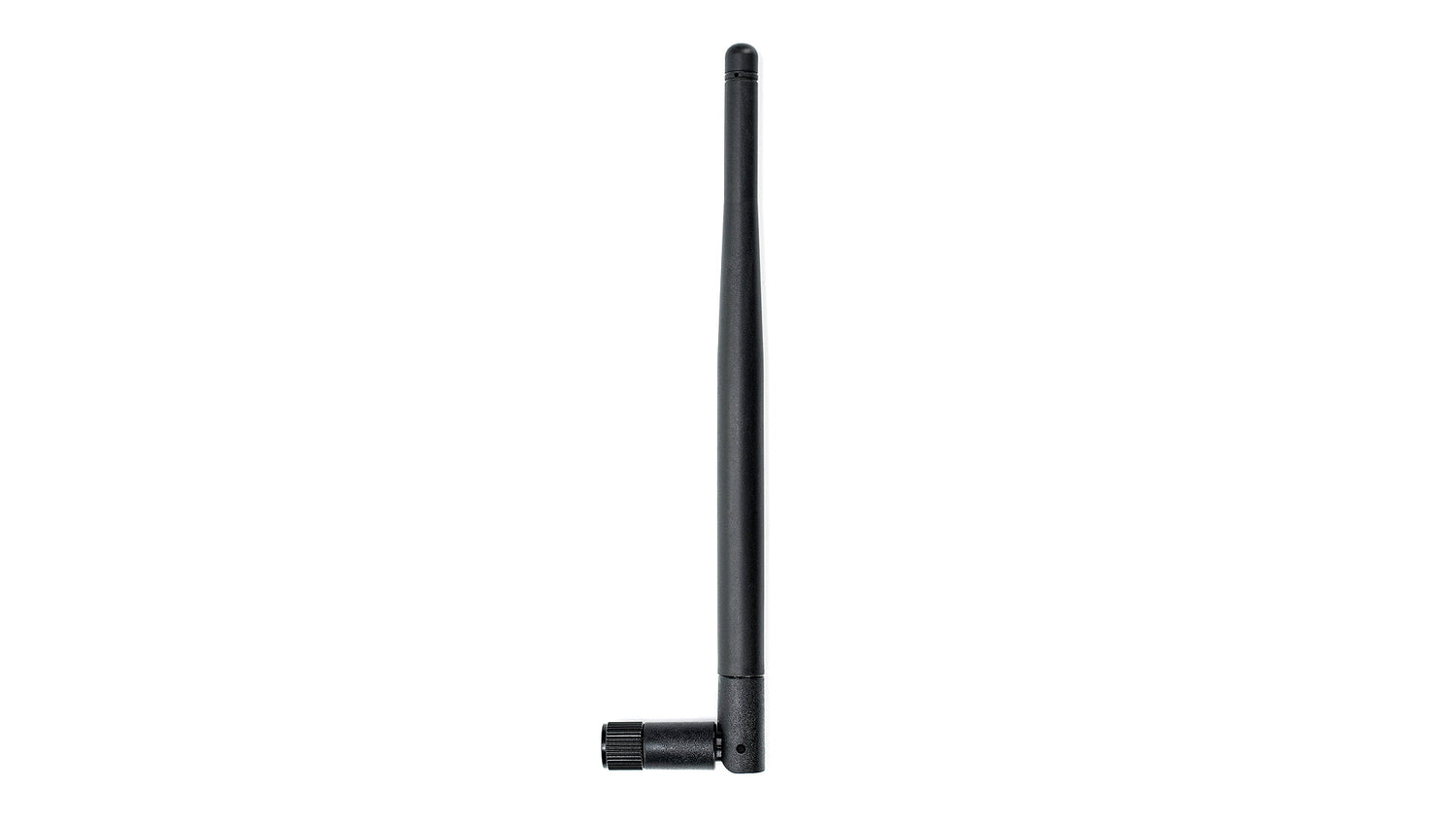

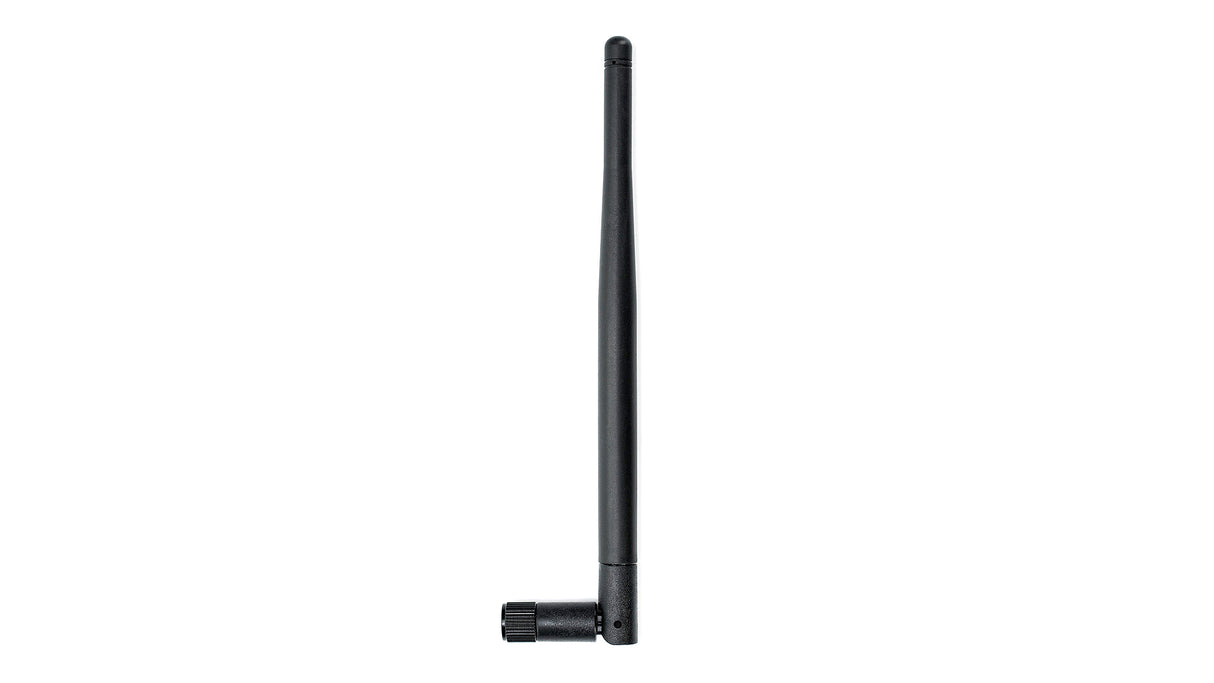

2JW0502-C442B Wi-Fi 6E/7, ISM hinged connector Antenna RPSMA-M

€6,80
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance tri-band antenna is designed for Wi-Fi 6E, Wi-Fi 7, and ISM applications, offering robust connectivity across 2.4, 5.0, and 6.0 GHz bands. Its ground plane independent dipole design ensures reliable operation and high efficiency, making it ideal for demanding environments. The hinged connector allows for flexible installation and optimal positioning. Perfect for smart home, IoT, entertainment, industrial, and commercial wireless applications where high gain and consistent performance are required.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: RPSMA-M

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, Zigbee, ISM
Type: Single
Dimensions: 173 × Ø 10 mm

Connection 1 - Wi-Fi 6E/7, ISM

Standards: Wi-Fi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.2:1, ~2.1:1, ~3.4:1
Efficiency (%): ~58.4, ~56.1, ~44.3
Peak Gain (dBi): ~3.1, ~6.6, ~4.5
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0502-C442B", "title": "Tri Band WIFI 6E / WIFI 7 ISM Hinged Connector Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "173 x Ø 10", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-9.0", "vswr": "~1.2:1", "efficiency_percent": "~58.4", "peakGain_dbi": "~3.1", "averageGain_db": "~-1.8" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-9.1", "vswr": "~2.1:1", "efficiency_percent": "~56.1", "peakGain_dbi": "~6.6", "averageGain_db": "~-2.2" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-5.5", "vswr": "~3.4:1", "efficiency_percent": "~44.3", "peakGain_dbi": "~4.5", "averageGain_db": "~-3.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "RP-SMA-Male", "cableType": null, "cableLength_mm": 0 } ] }
