2J  |  SKU: 2JW0715-433-C20N

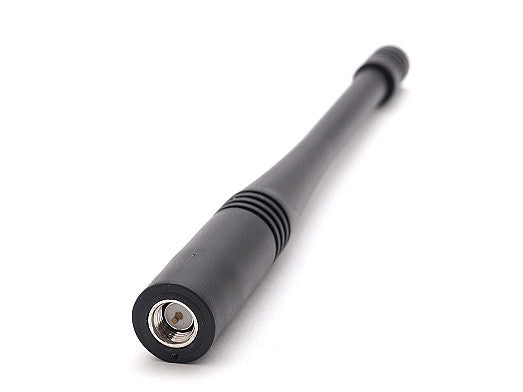

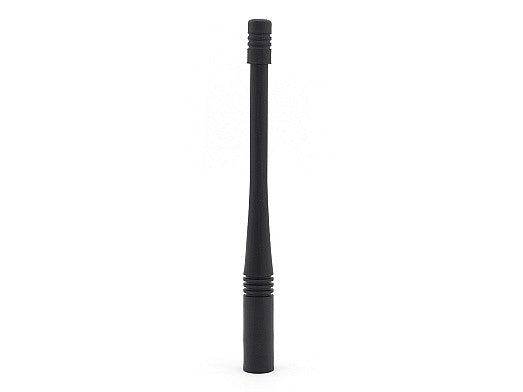

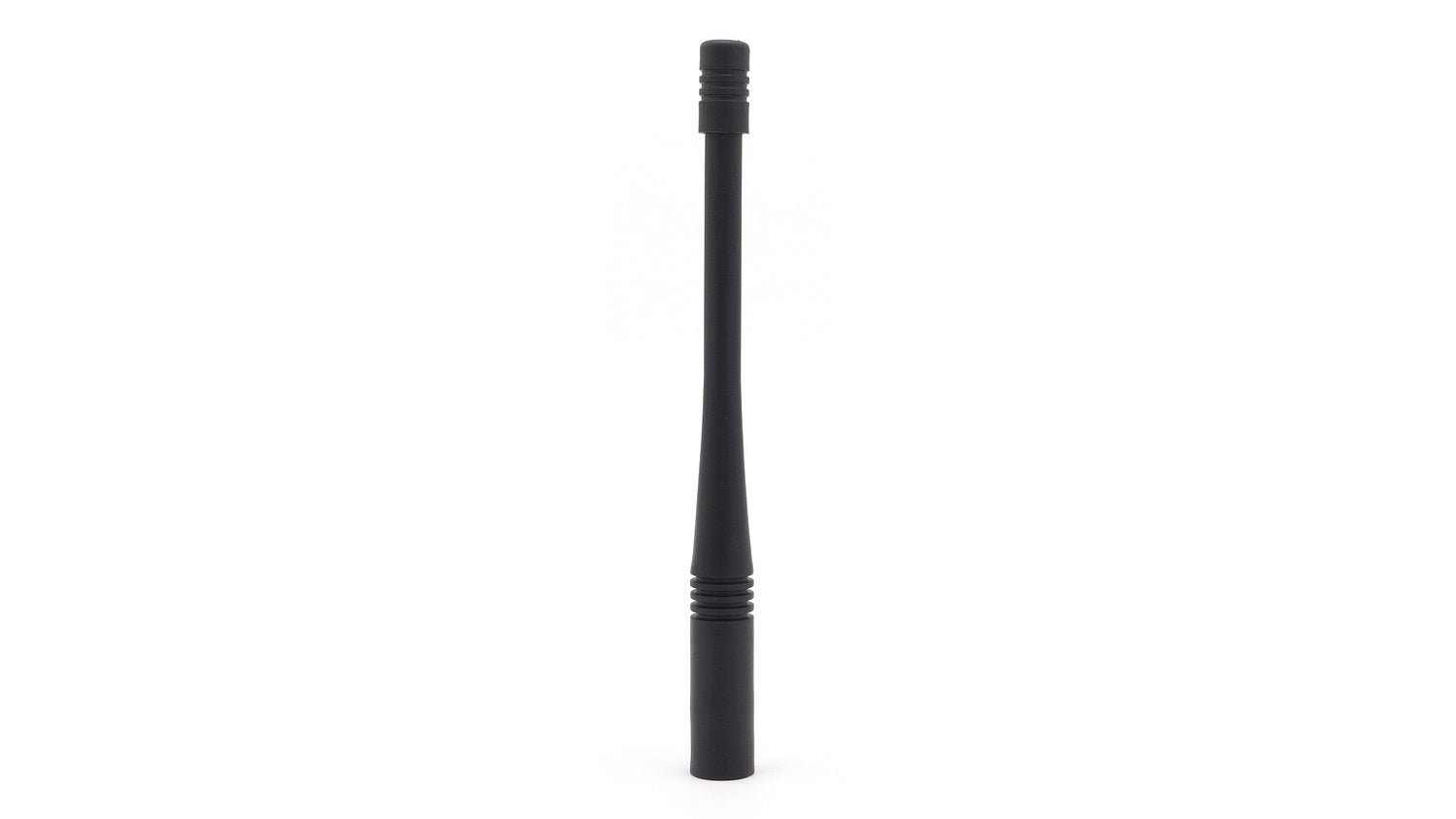

2JW0715-433-C20N 433MHz, ISM, LoRa connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-efficiency ultra wideband antenna is designed for reliable performance in the 433 MHz ISM band, supporting LoRa, LPWA, Sigfox, RFID, and other IoT applications. Its ground plane dependent monopole design and flexible rod construction make it ideal for a wide range of industrial, smart city, and IoT deployments where robust connectivity and high efficiency are required. Suitable for use in smart home, industrial monitoring, asset tracking, and more.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 132 x 12.6 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~3.8:1
Efficiency (%): ~60
Peak Gain (dBi): ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0715-433-C20N", "title": "433 MHz ISM Ultra Wideband High Efficiency Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "132 x 12.6", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-4.6", "vswr": "~3.8:1", "efficiency_percent": "~60", "peakGain_dbi": "~-0.3", "averageGain_db": "~-2.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
