2J | SKU: 2JW0815-868-C20N

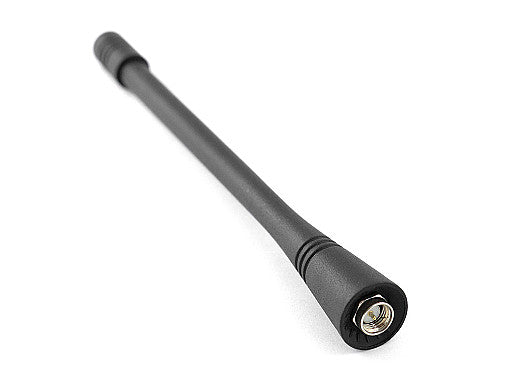

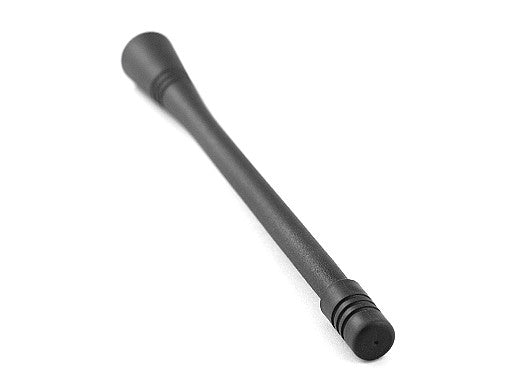

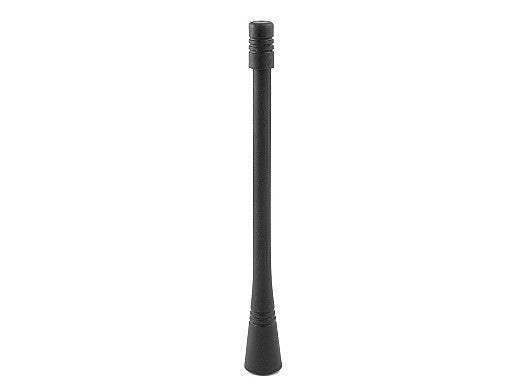

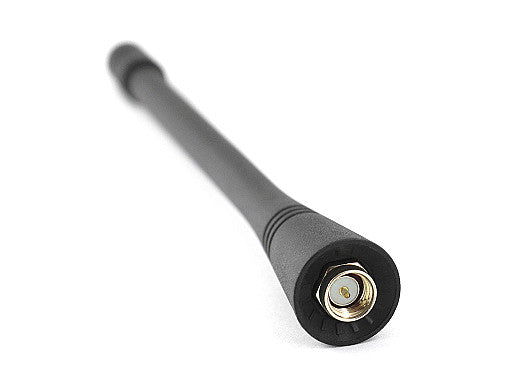

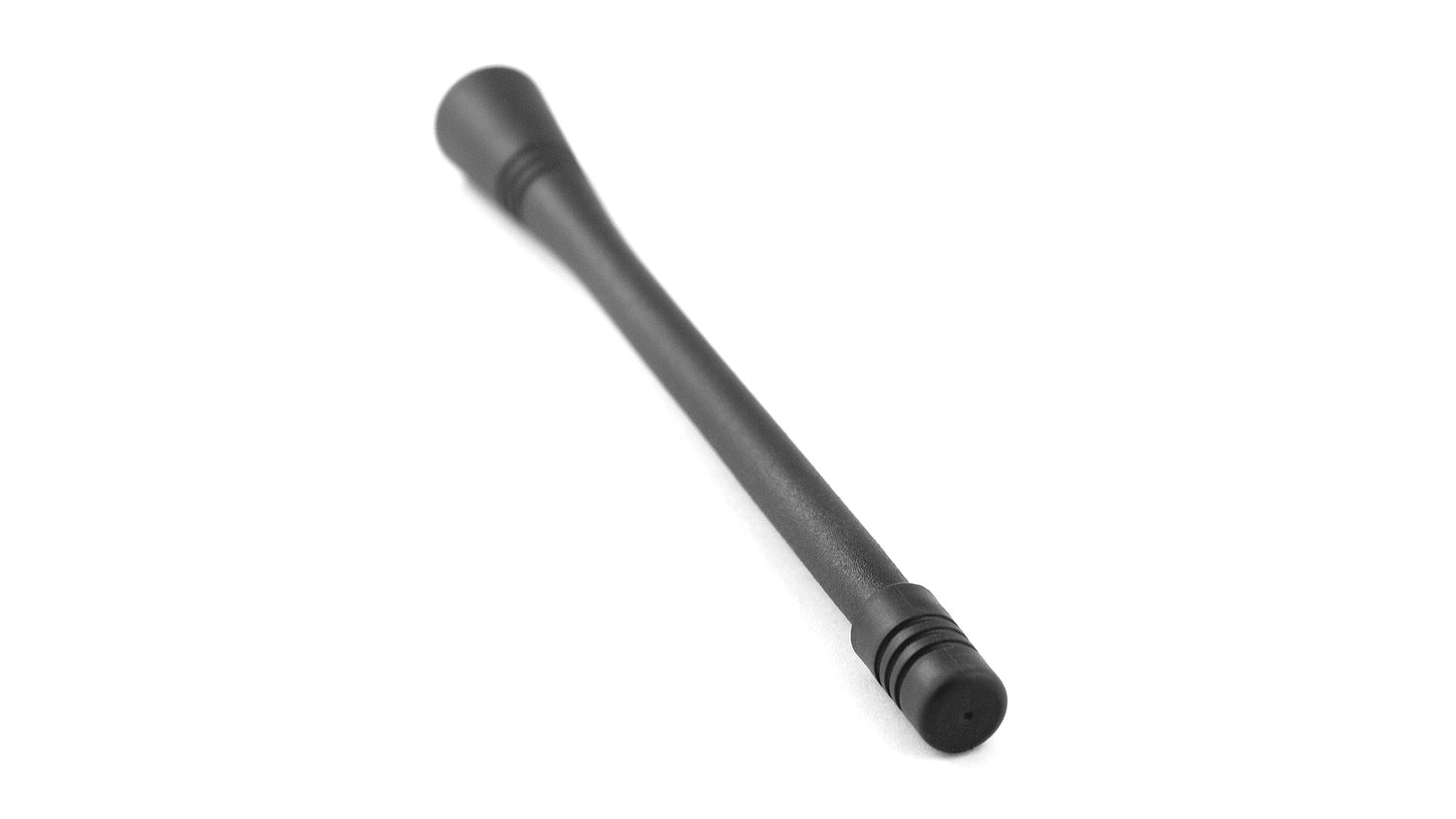

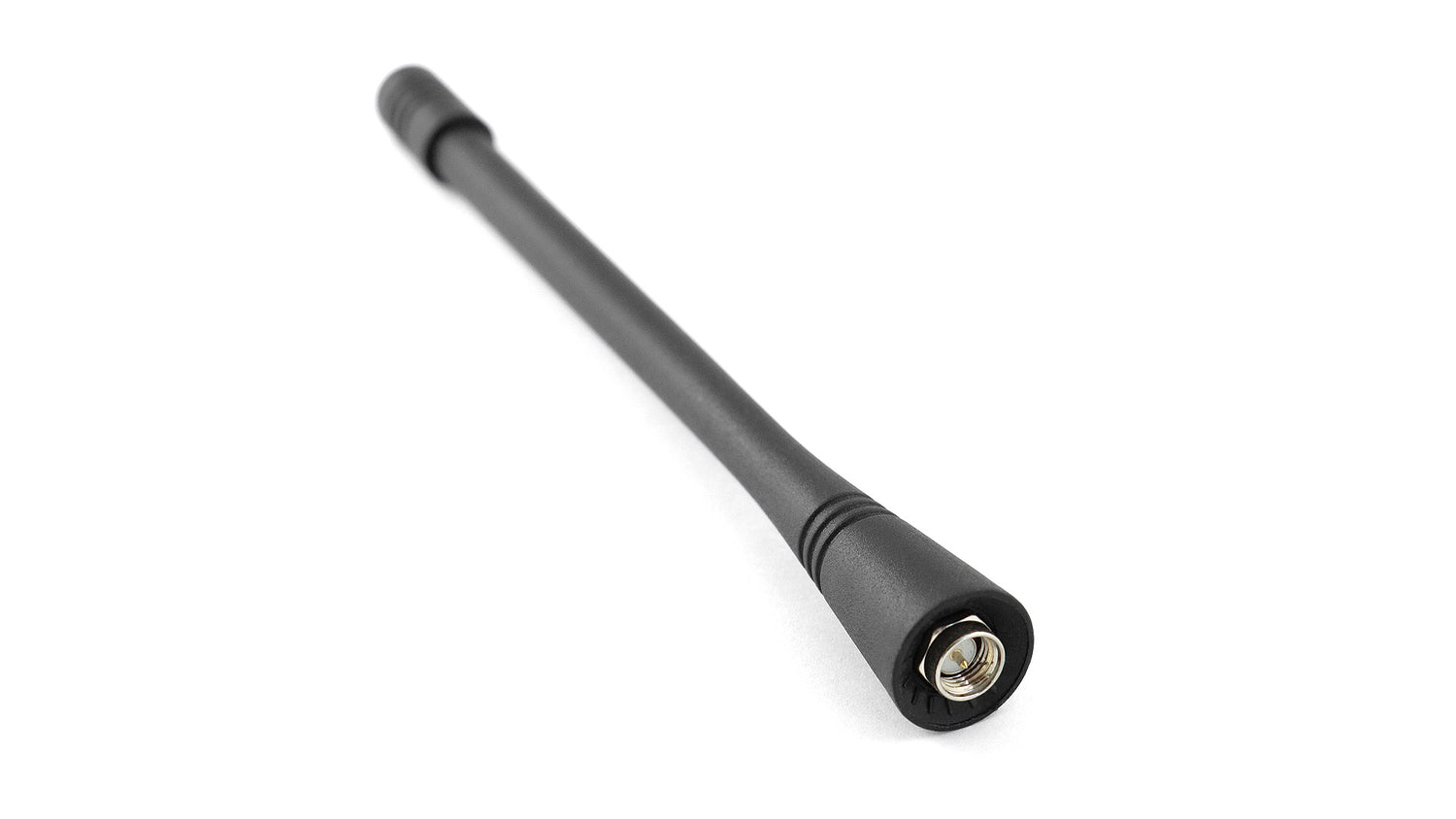

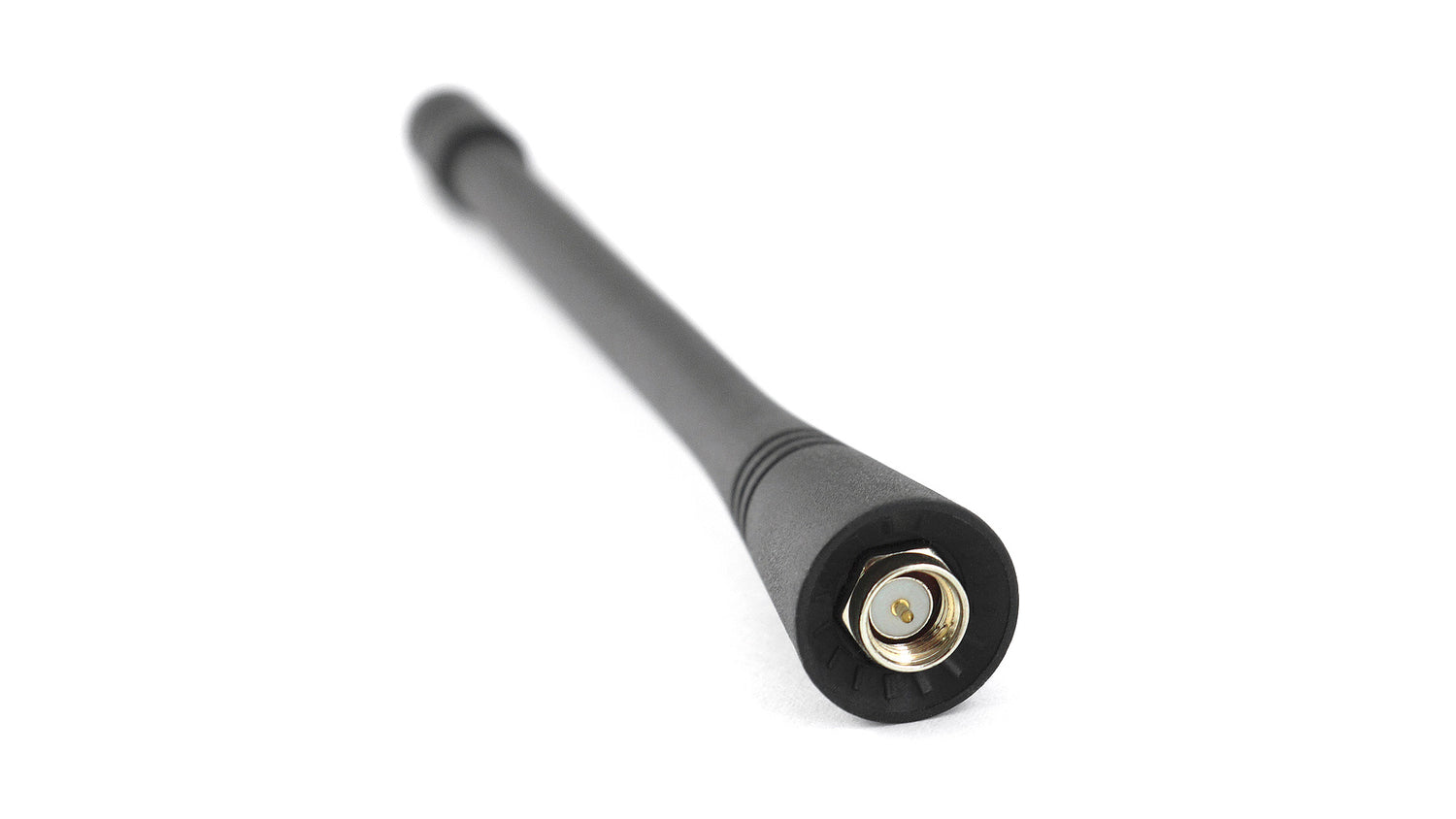

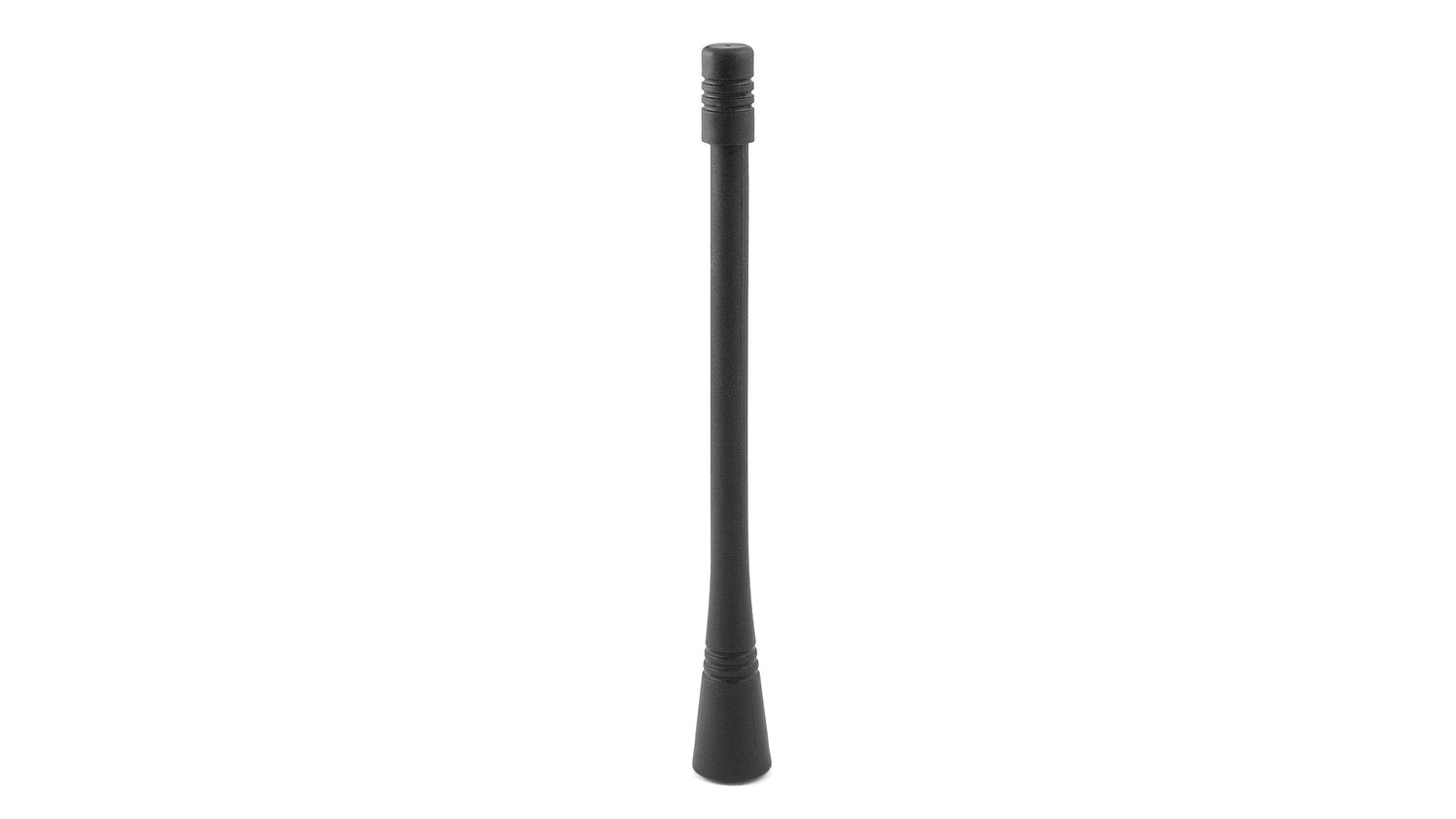

2JW0815-868-C20N ISM connector mount Antenna

Name: 2JW0815-868-C20N ISM connector mount Antenna
Brand: 2J
SKU: 2JW0815-868-C20N
Availability: OutOfStock

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is designed for reliable operation in the 868 MHz ISM band, supporting technologies such as Sigfox, LoRa, LPWA, RFID, and ZigBee. Its dipole design and ground plane independence ensure consistent performance across a wide range of IoT and industrial applications. The flexible rod construction and compact profile make it ideal for installations where space and durability are critical. Suitable for smart home, industrial IoT, asset tracking, and other wireless communication systems.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 137.3 x Ø 15.7 mm

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~2.0:1
Efficiency (%): ~55.3
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0815-868-C20N", "title": "868 MHz ISM Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "137.3 x Ø 15.7", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-9.7", "vswr": "~2.0:1", "efficiency_percent": "~55.3", "peakGain_dbi": "~2.6", "averageGain_db": "~-2.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
