2J  |  SKU: 2JW0815-915-C20N

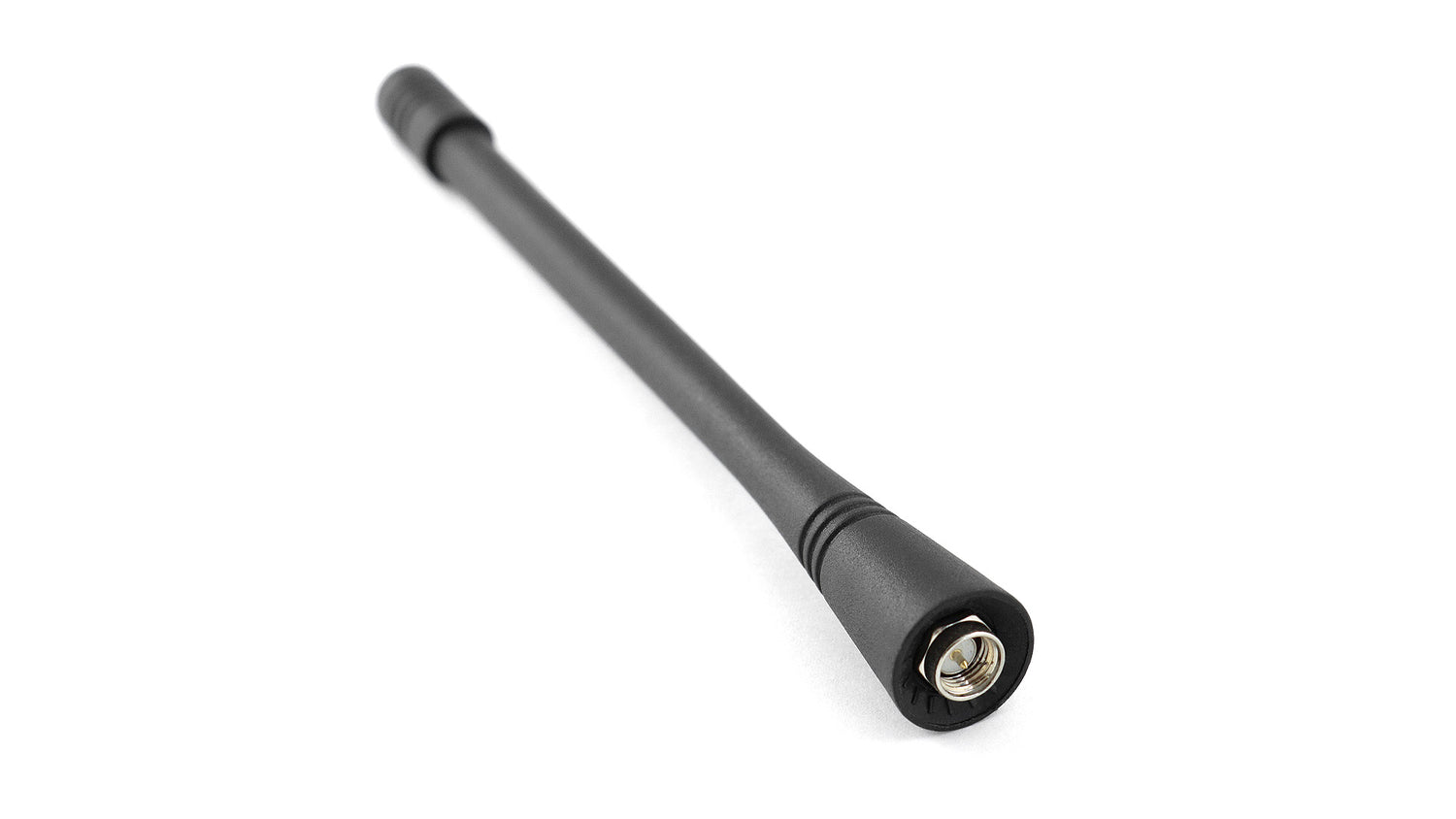

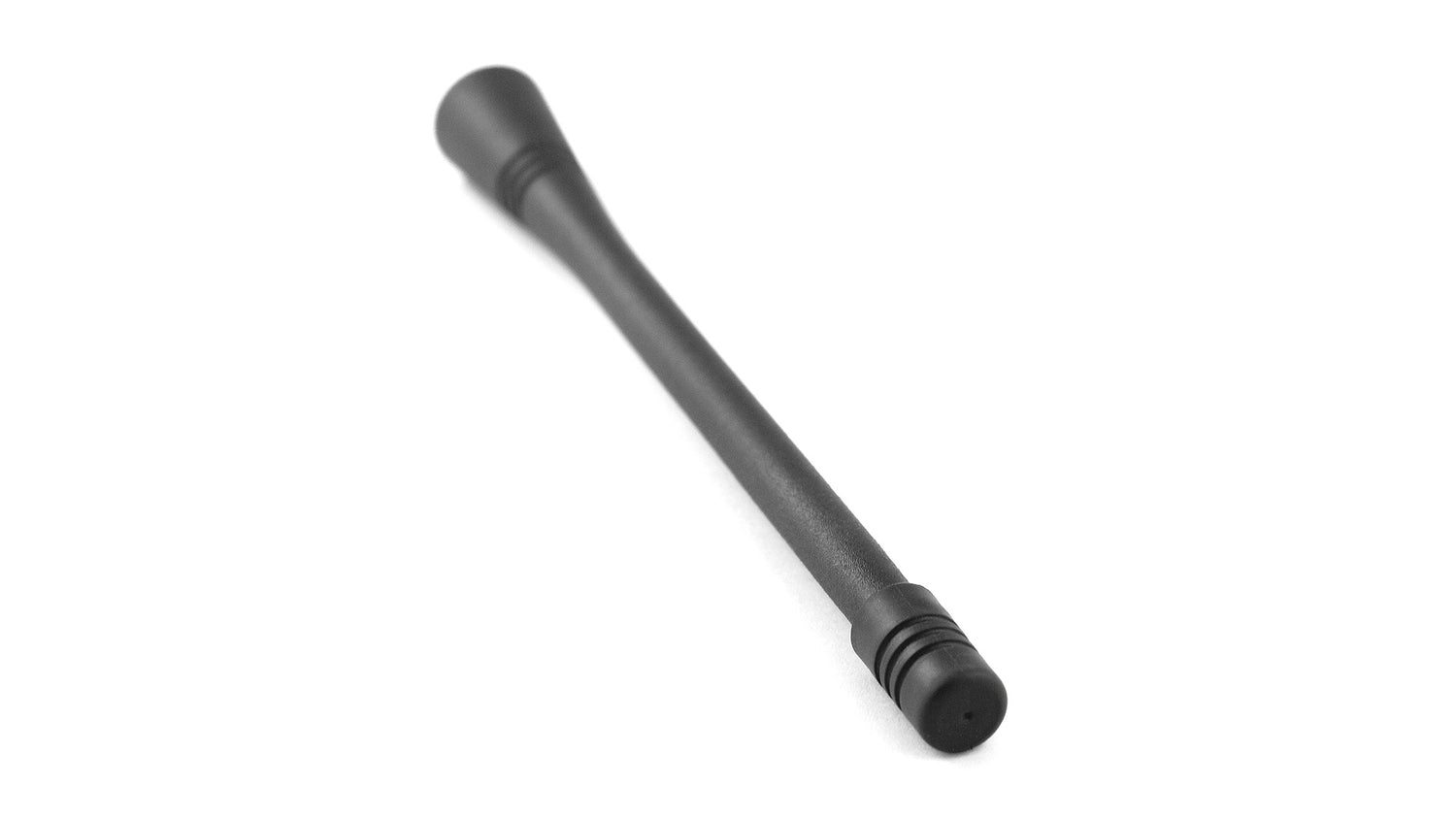

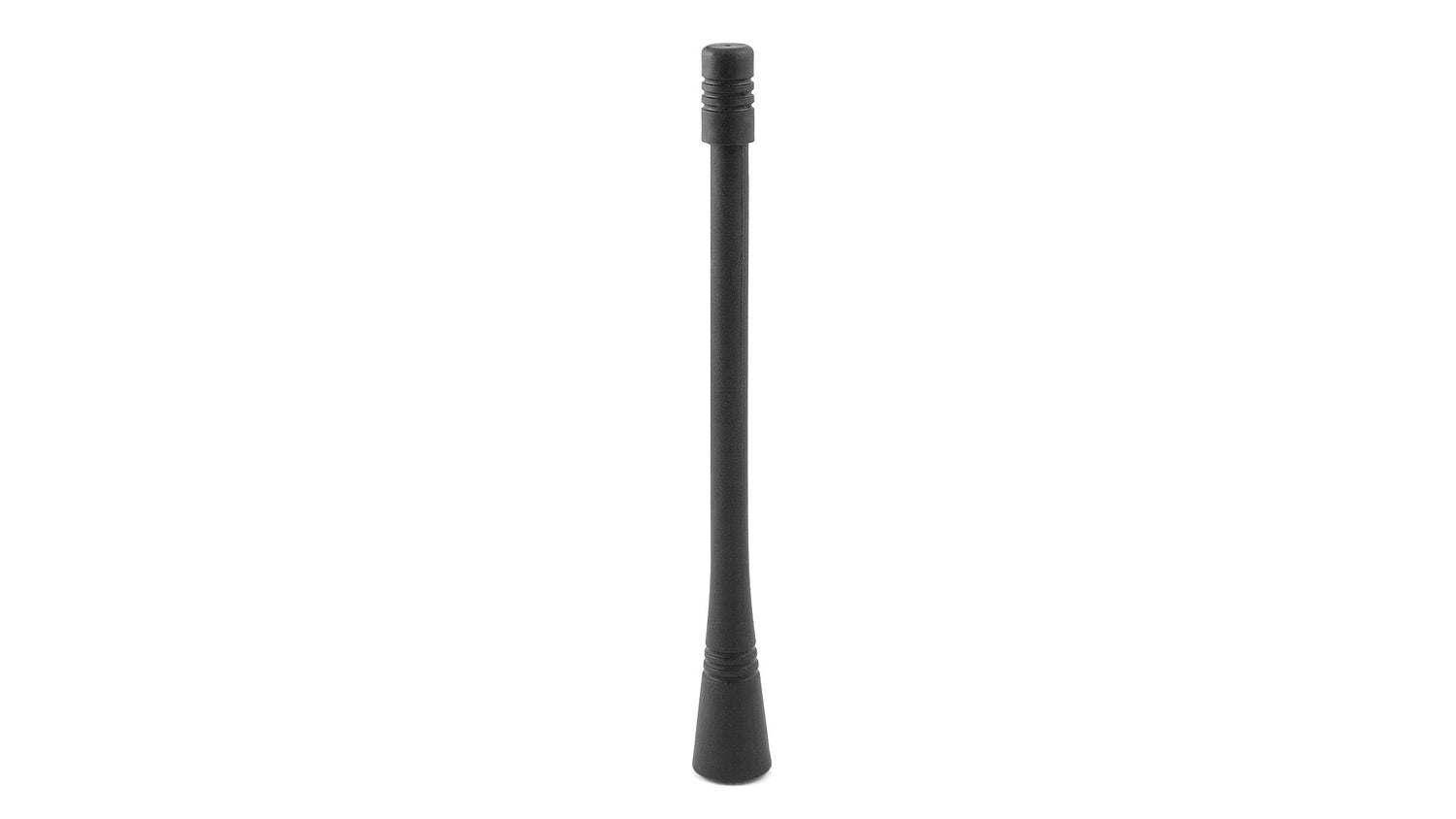

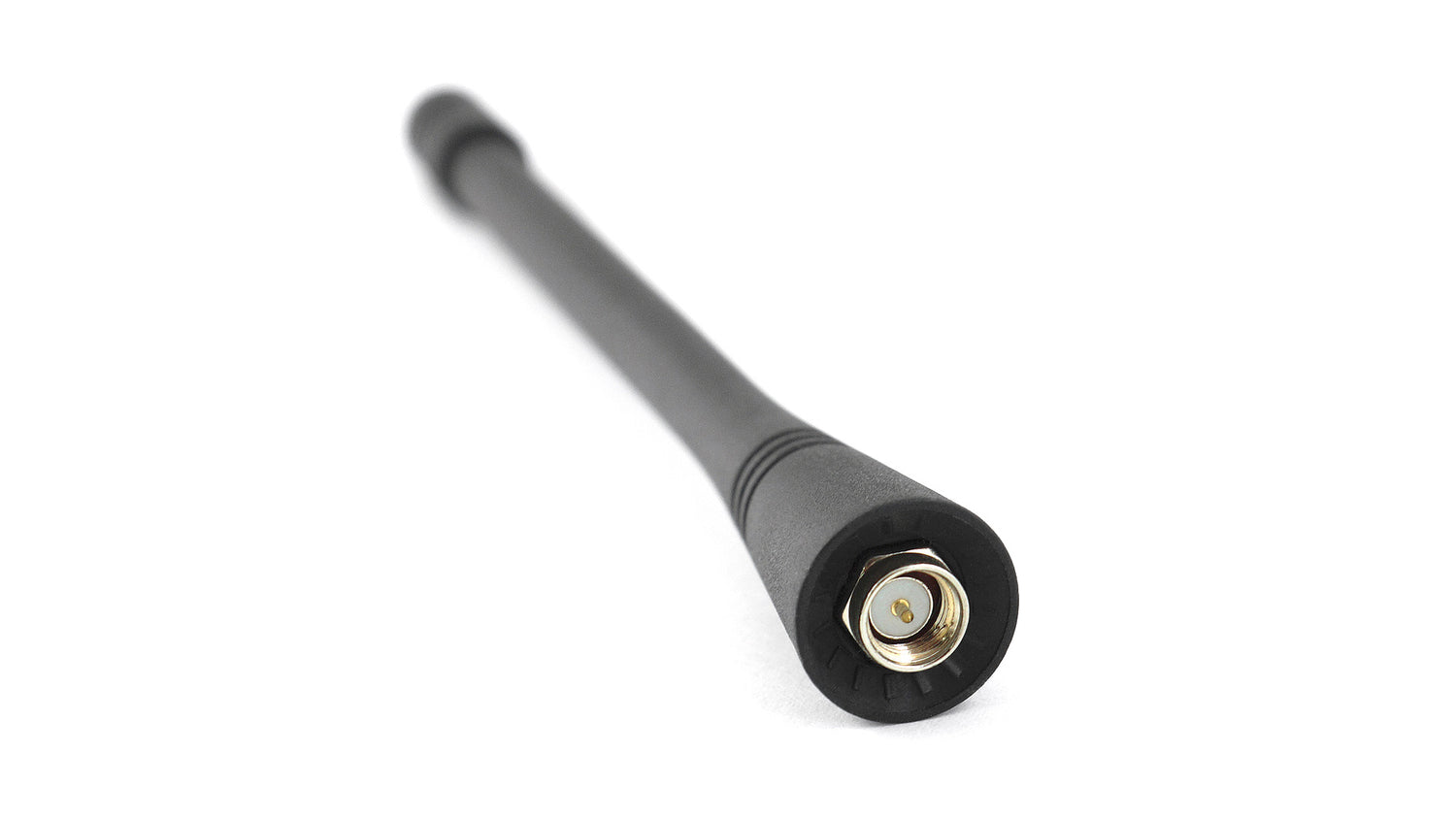

2JW0815-915-C20N ISM connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low profile ultra wideband antenna is designed for reliable performance in the 915 MHz ISM band, supporting a wide range of IoT and industrial applications. Its dipole design ensures high efficiency and ground plane independence, making it ideal for installations where flexibility and consistent signal quality are required. The antenna's robust construction and flexible rod form factor allow for easy integration into various environments, including smart cities, industrial monitoring, asset tracking, and more.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 137.3 x Ø 15.7 mm

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.6:1
Efficiency (%): ~65.1
Peak Gain (dBi): ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0815-915-C20N", "title": "915 MHz ISM Low Profile Ultra Wideband Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "137.3 x Ø 15.7", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-12.4", "vswr": "~1.6:1", "efficiency_percent": "~65.1", "peakGain_dbi": "~2.1", "averageGain_db": "~-2.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "C20N", "cableLength_mm": null } ] }
