2J  |  SKU: 2JW0915-915-C952B

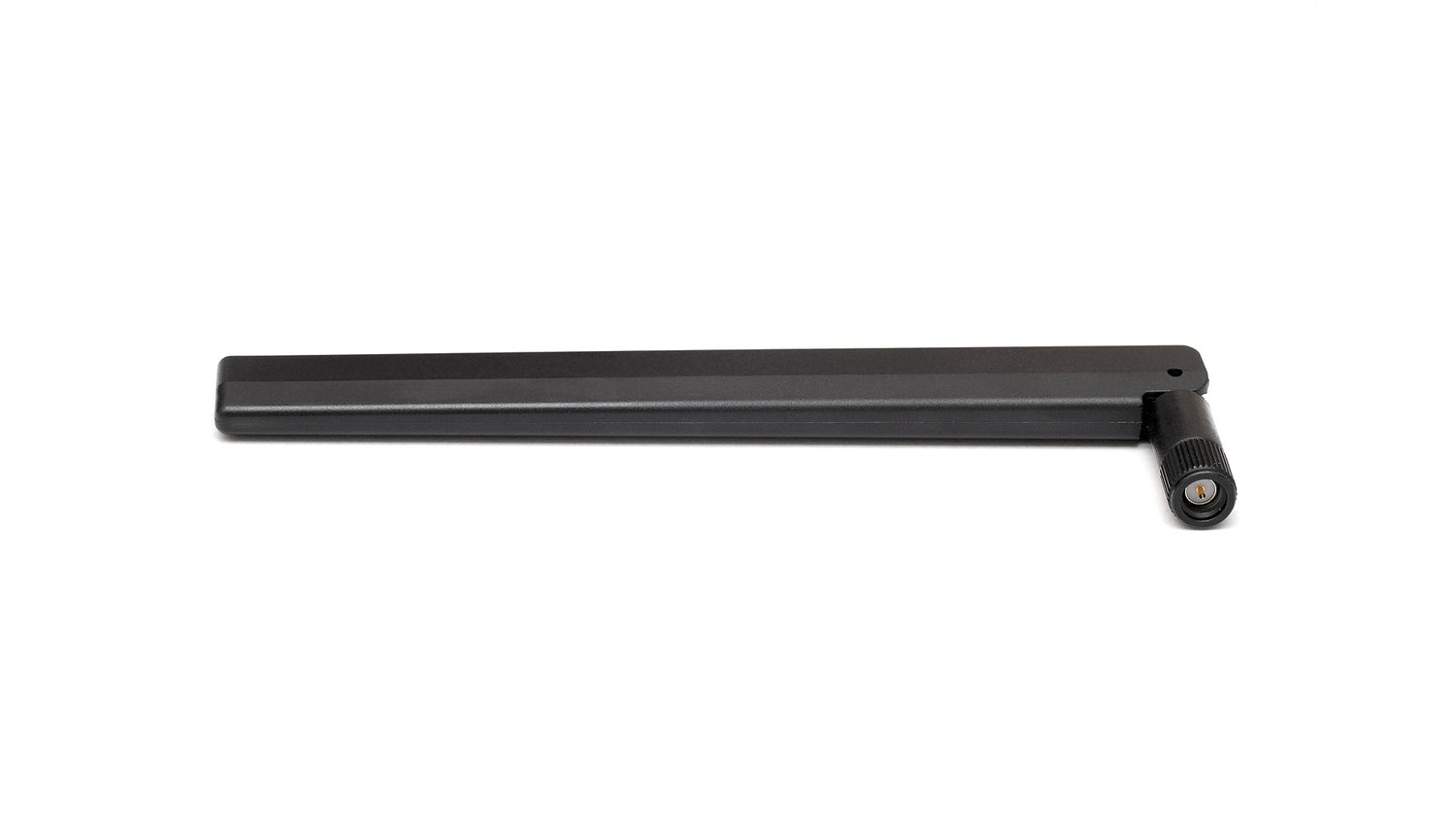

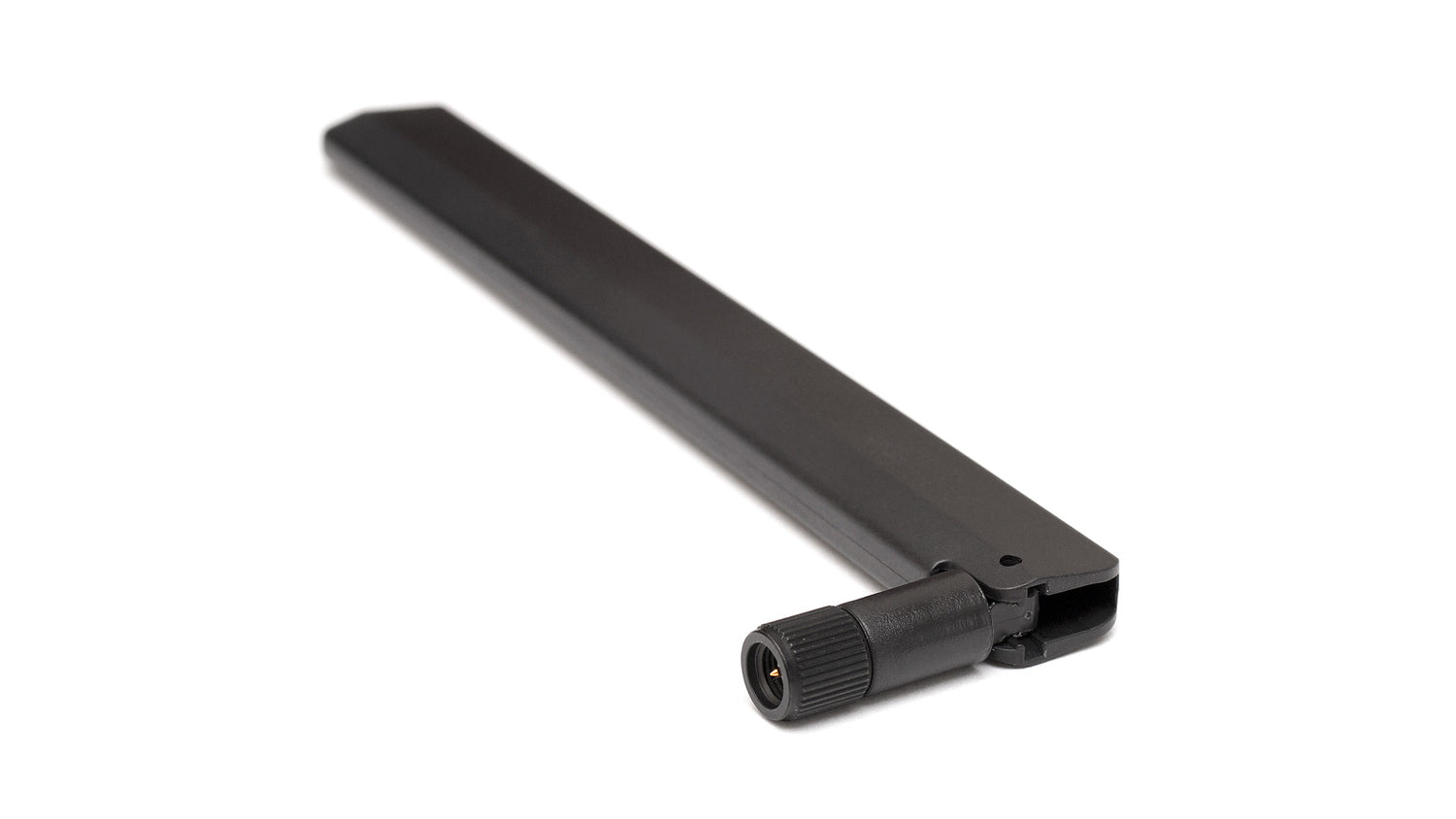

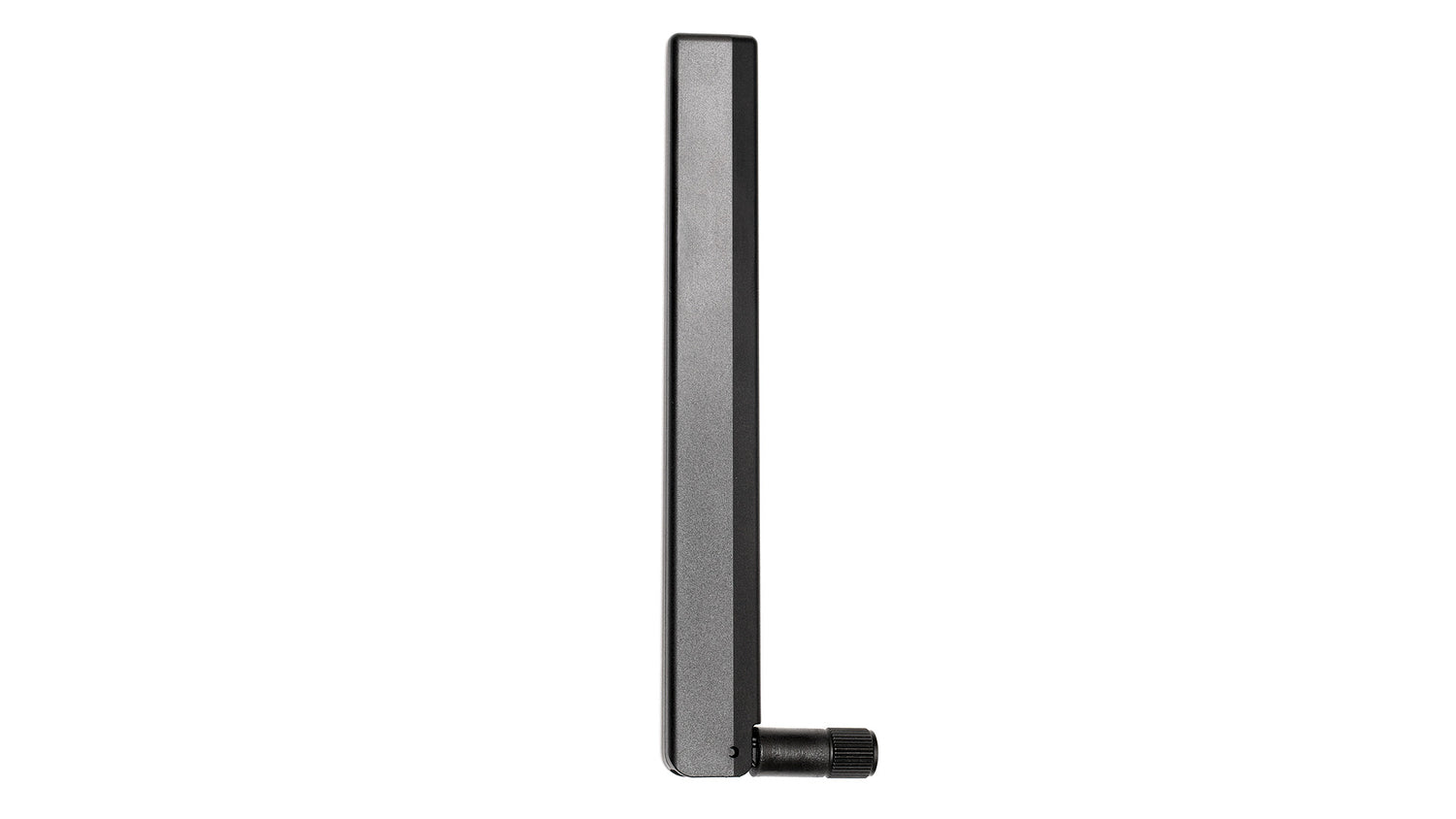

2JW0915-915-C952B ISM connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is optimized for 915 MHz ISM applications and is designed for worldwide coverage in IoT, smart home, industrial, and asset tracking environments. Its ground plane independent dipole design ensures reliable operation and consistent performance, even in challenging installation scenarios. The hinged connector allows for flexible positioning, making it ideal for a wide range of deployments including smart cities, healthcare, logistics, and more.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 170 × 18 × 10 mm

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.2:1
Efficiency (%): ~80.0
Peak Gain (dBi): ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW0915-915-C952B", "title": "915 MHz ISM Ground Plane Independent Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "170 × 18 × 10", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "Sigfox", "LoRa", "LPWA", "RFID", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-21.7", "vswr": "~1.2:1", "efficiency_percent": "~80.0", "peakGain_dbi": "~3.8", "averageGain_db": "~-1.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
