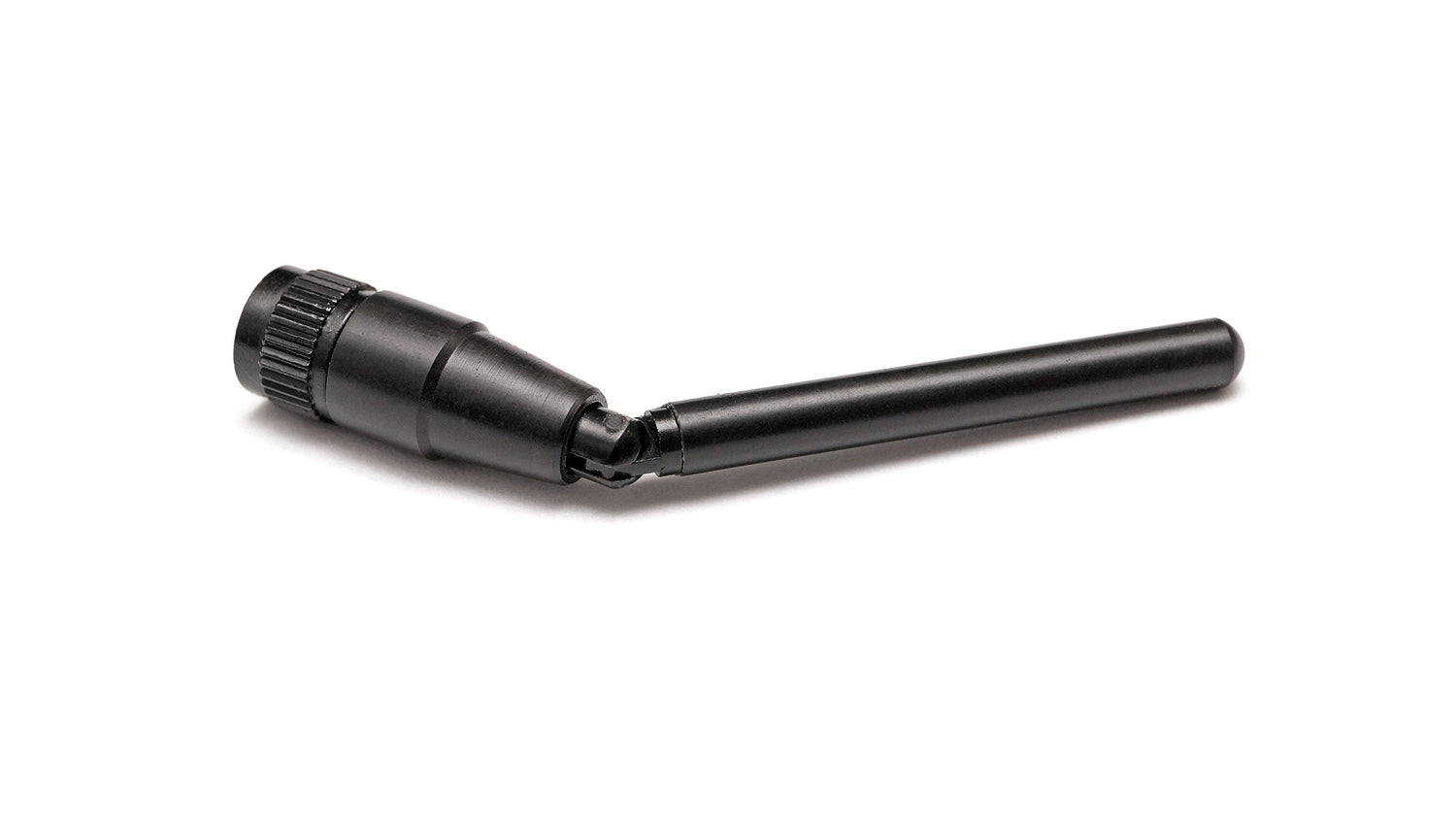

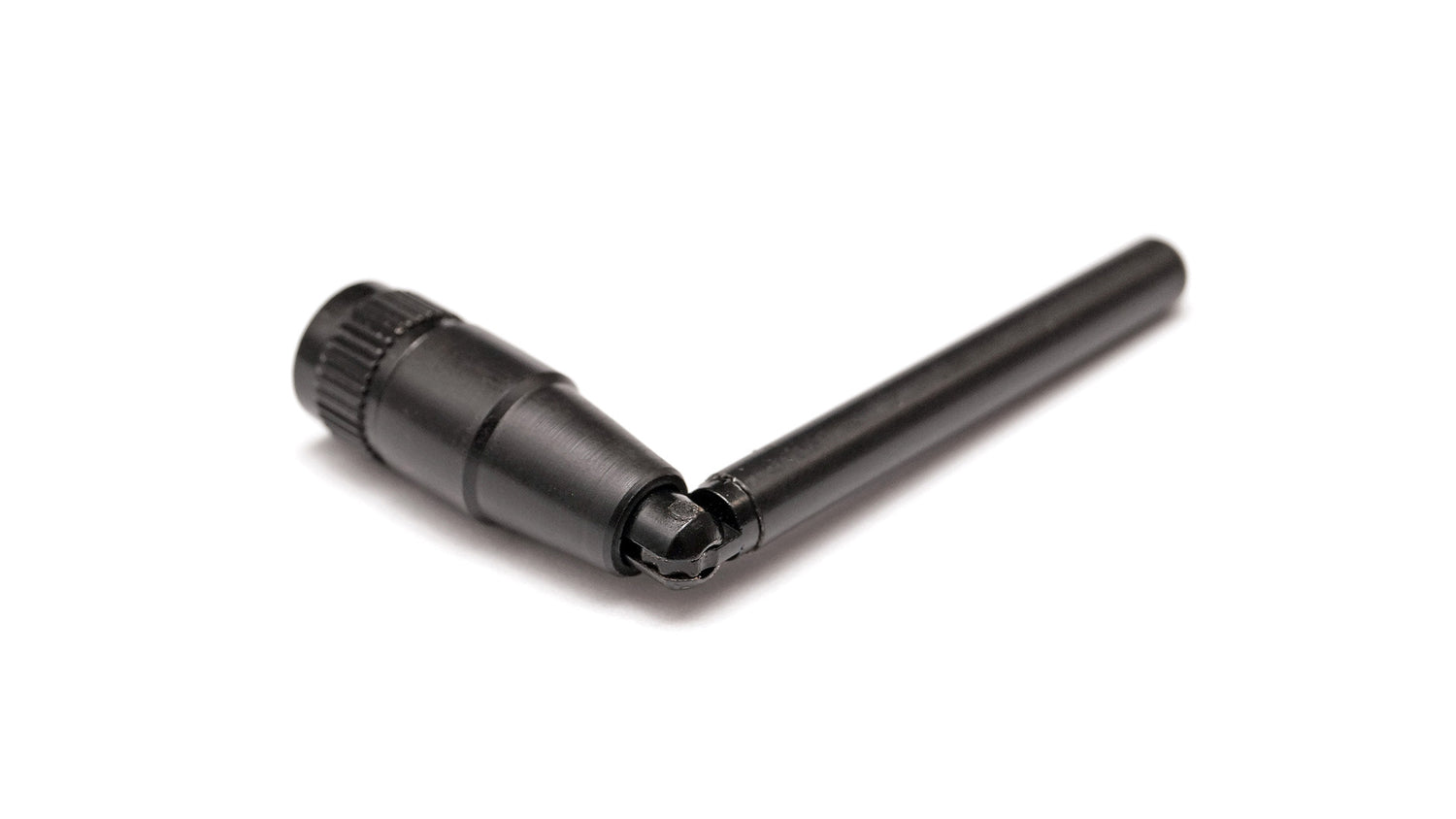

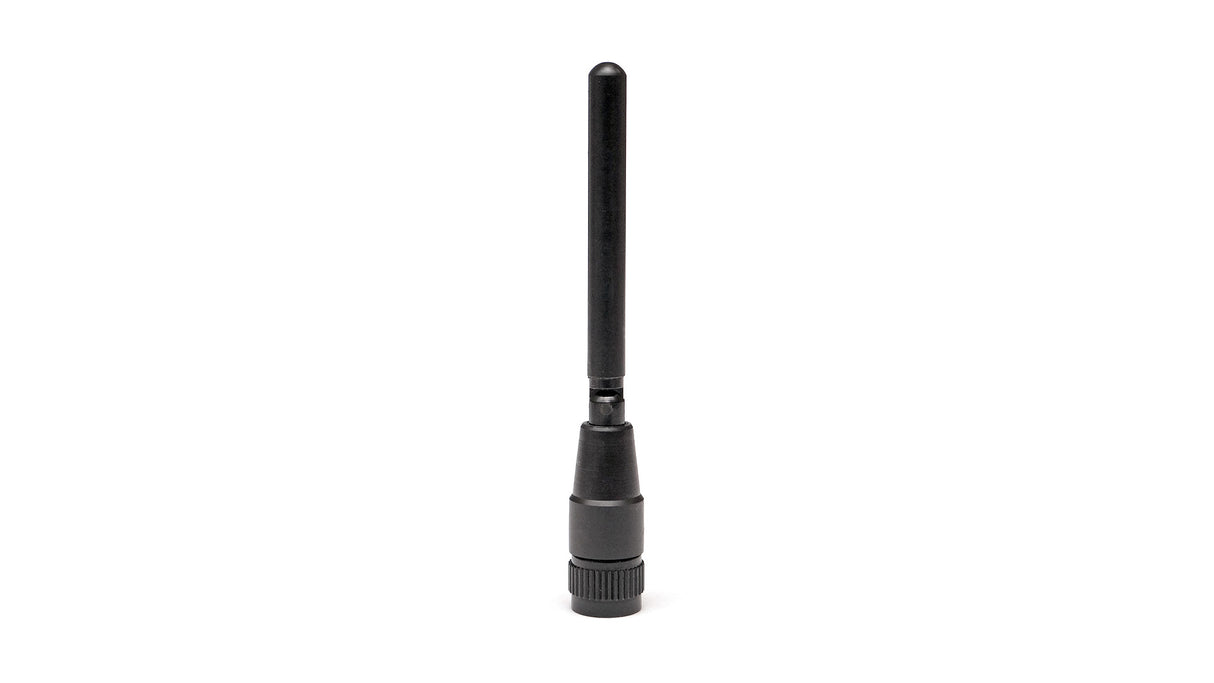

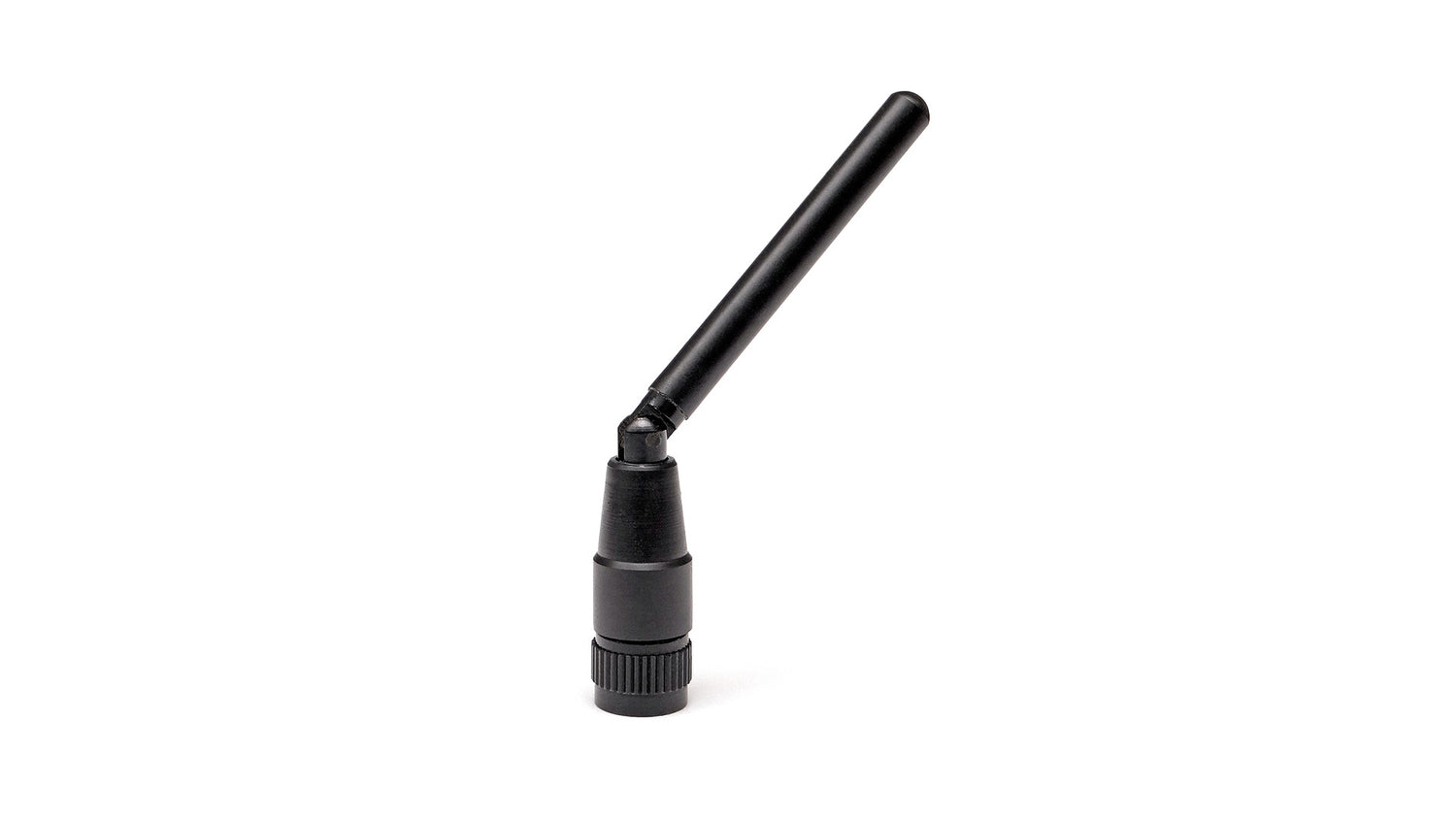

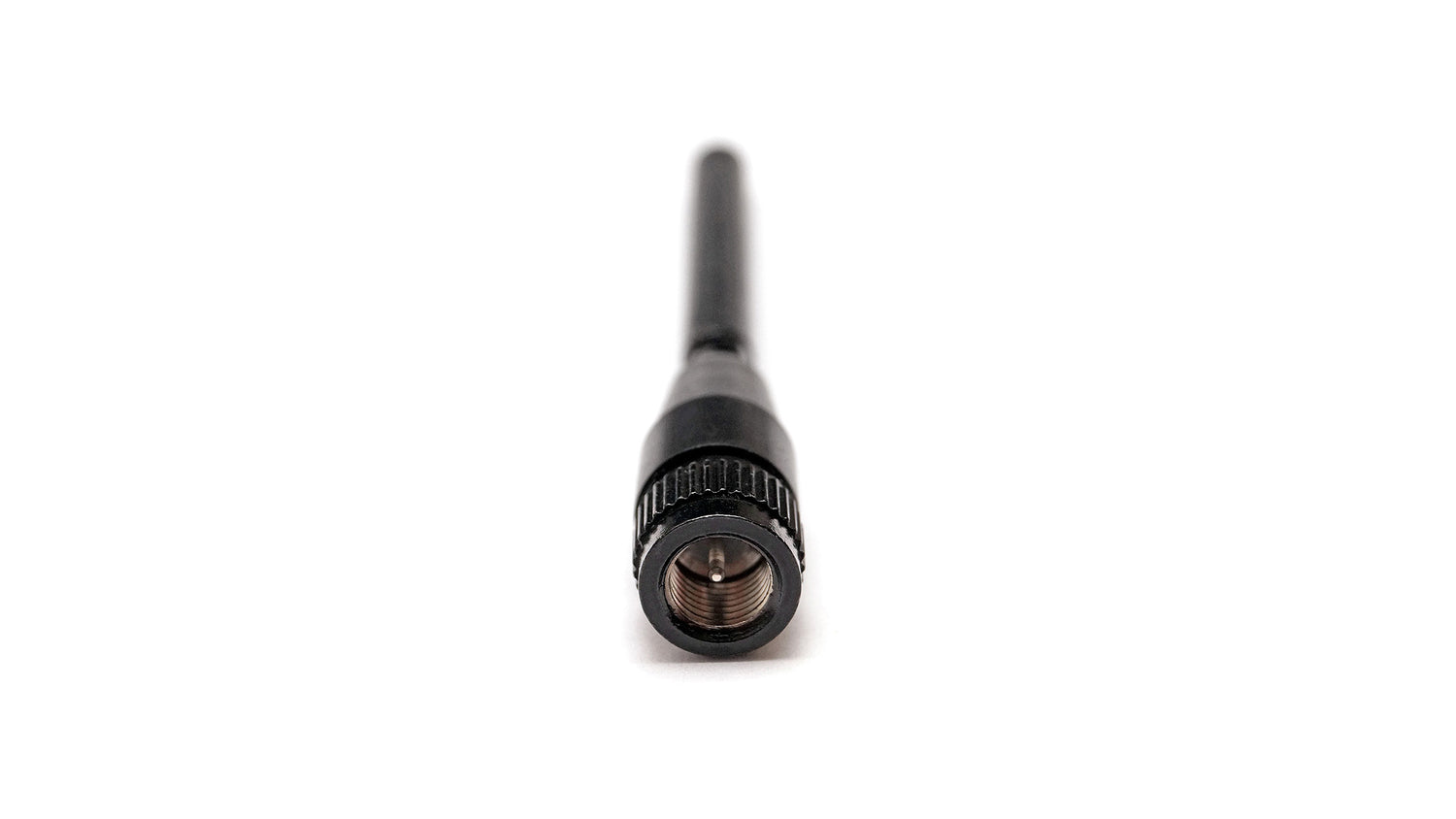

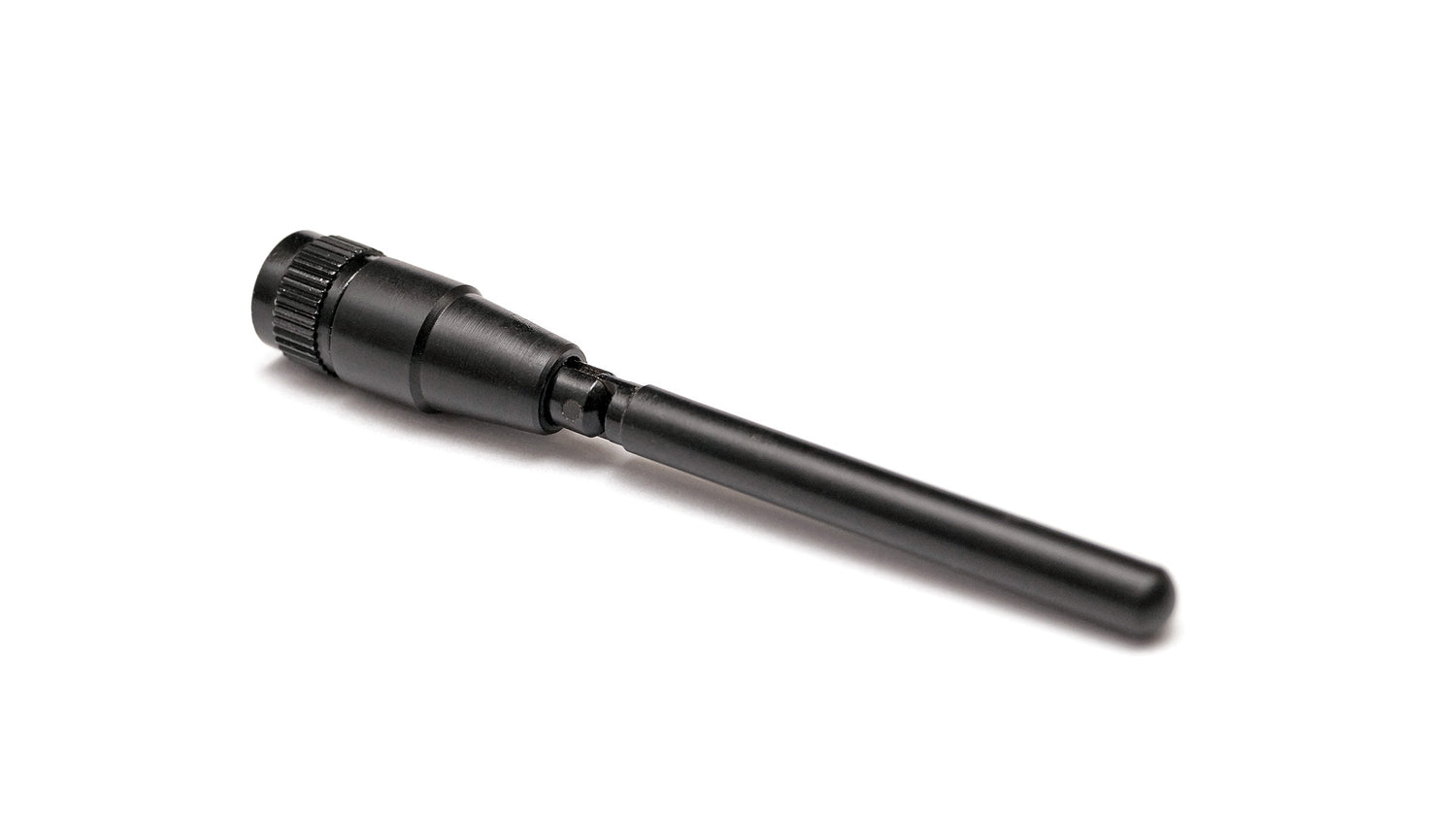

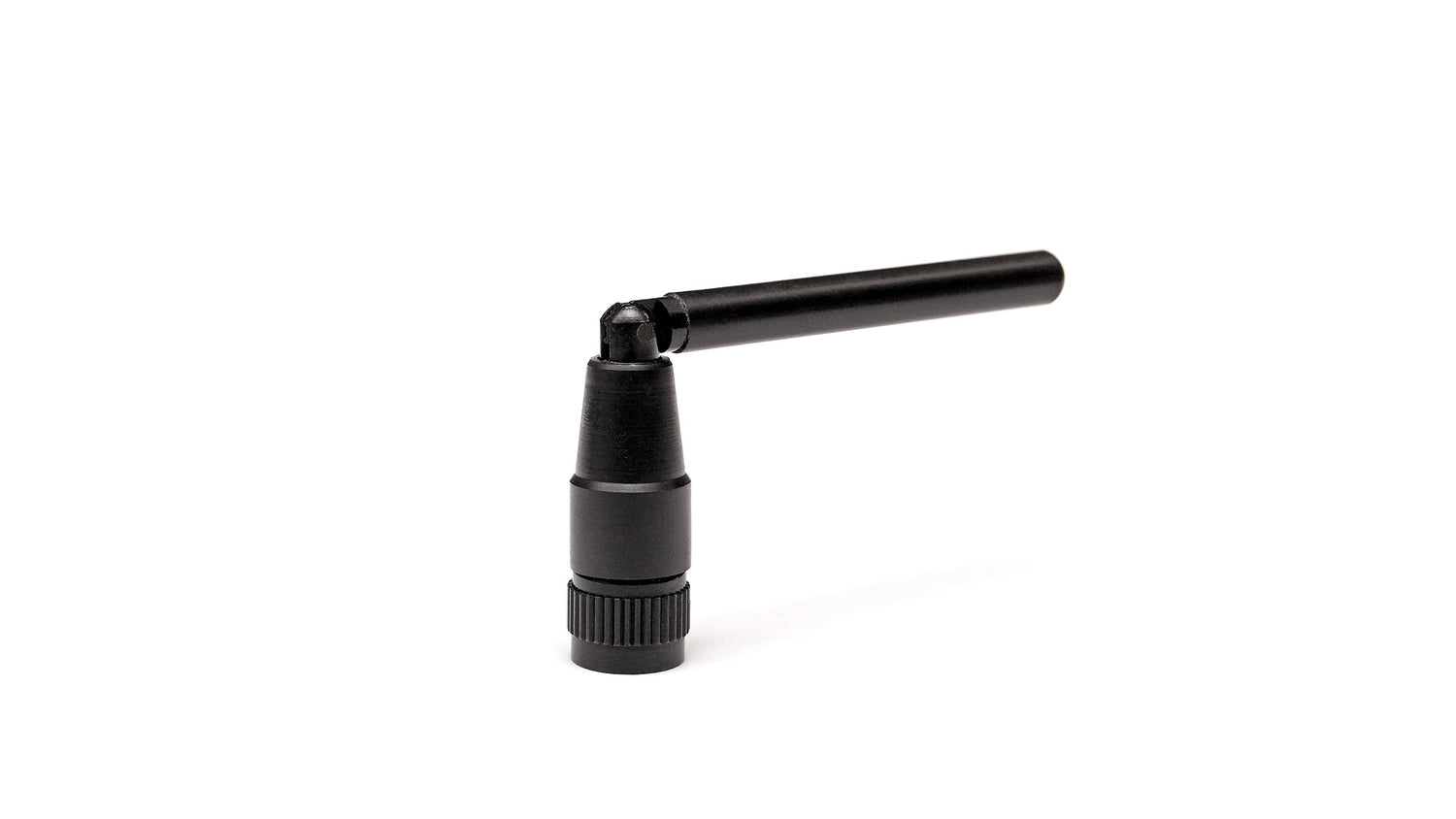

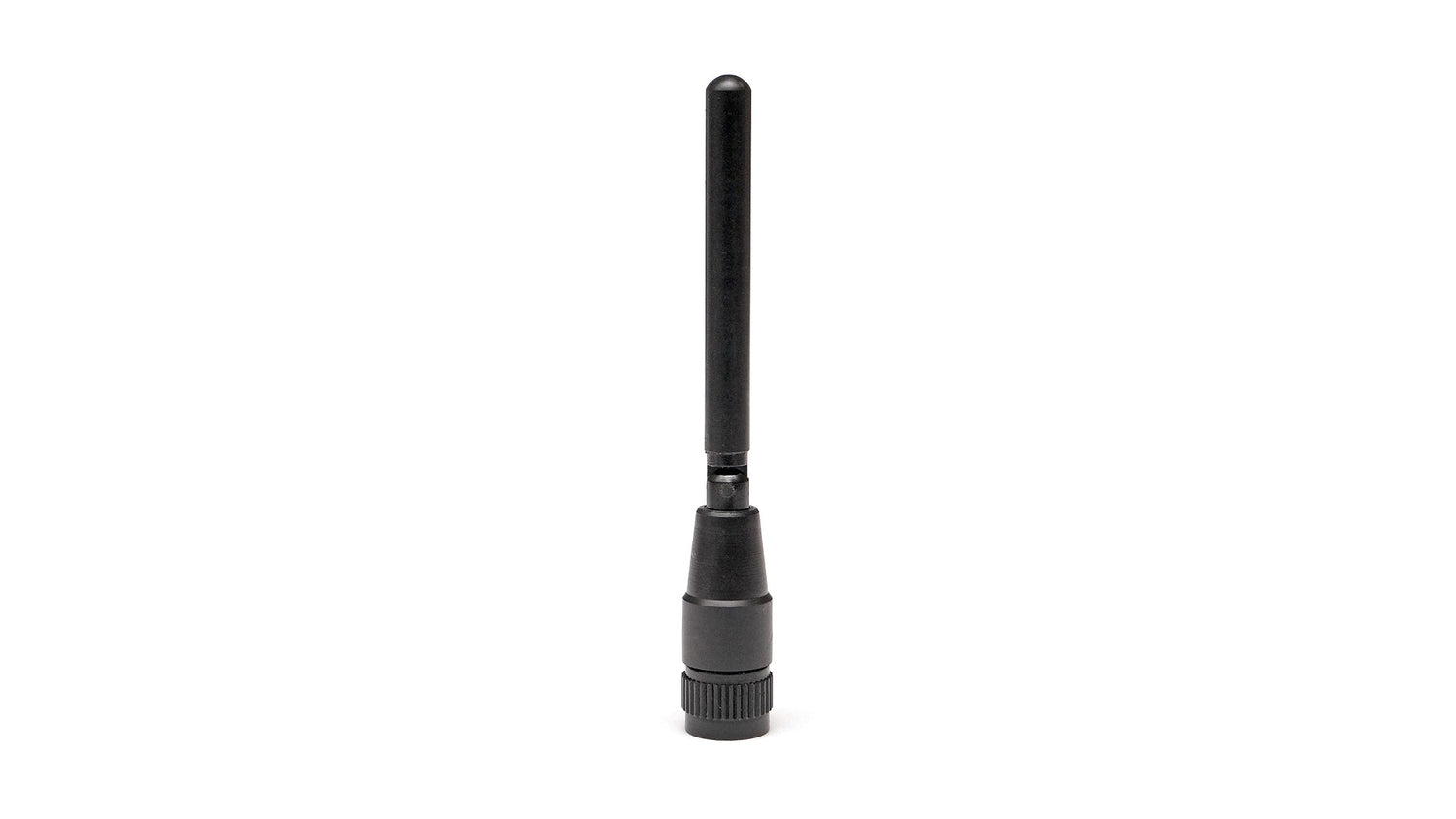

This high-efficiency antenna is designed for reliable GNSS performance, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its compact form factor and ground plane dependent design make it ideal for applications where space is limited and precise location tracking is essential. Typical use cases include logistics, smart cities, fleet management, autonomous driving, drone operation, surveying, and more. The antenna delivers strong signal reception and high efficiency, making it suitable for demanding environments.
Connections
GPS/GLO/BEI/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Satellite Navigation: GNSS
Type: Single
Connection 1 - GNSS
Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
VSWR: ~1.3:1
Efficiency (%): ~70
Peak Gain (dBi): ~2.9
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JW1001",
"title": "GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz High Efficiency Connector Mount Antenna",
"mountingType": "Connector Mount",
"ipRating": null,
"dimensions_mm": "Ø 10 × 71",
"elements": [
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"BeiDou",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1561.098",
"returnLoss_db": "~-17.2",
"vswr": "~1.3:1",
"efficiency_percent": "~70",
"peakGain_dbi": "~2.9",
"averageGain_db": "~-1.5"
},
{
"range_mhz": "1575.42",
"returnLoss_db": "~-16.0",
"vswr": "~1.3:1",
"efficiency_percent": "~70",
"peakGain_dbi": "~2.8",
"averageGain_db": "~-1.6"
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "~-15.9",
"vswr": "~1.3:1",
"efficiency_percent": "~69",
"peakGain_dbi": "~2.9",
"averageGain_db": "~-1.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": null,
"cableLength_mm": null
}
]
}
