2J  |  SKU: 2JW1115-C952B

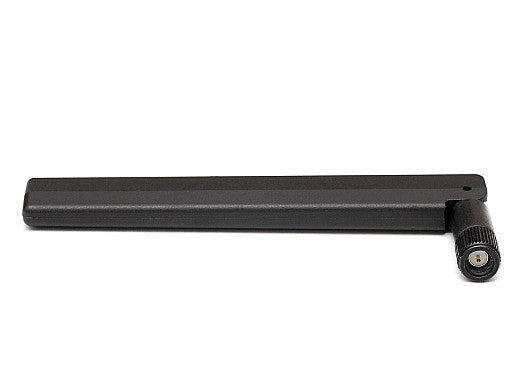

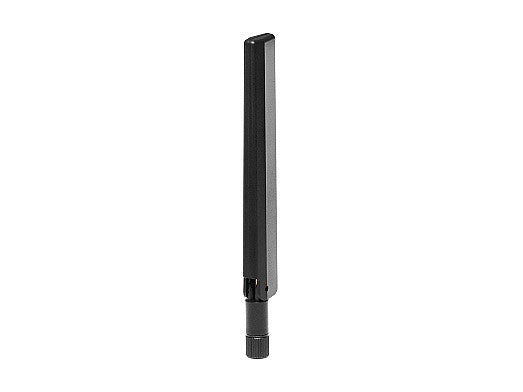

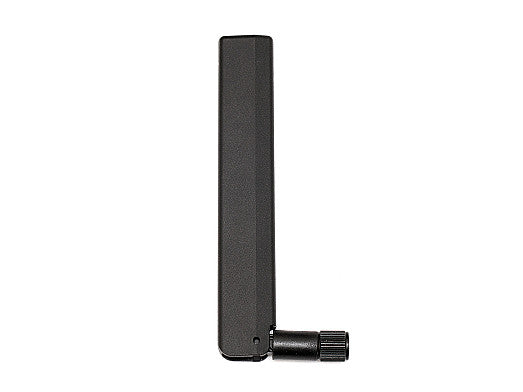

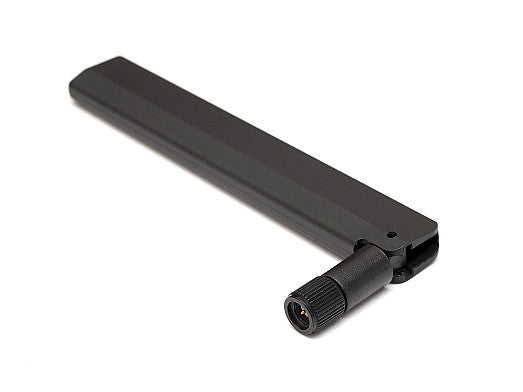

2JW1115-C952B ISM connector mount Antenna

€5,21
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance antenna is designed for reliable operation in the 868/915 MHz ISM bands, making it ideal for IoT, LPWA, Sigfox, LoRa, ZigBee, and RFID applications. Its ground plane independent design ensures consistent performance across a wide range of installation environments. The hinged connector allows for flexible positioning, while the robust construction supports demanding industrial and commercial use cases. Typical applications include smart cities, industrial IoT, asset tracking, automation, and wireless security systems.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 135 × 19 × 10 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.5:1, ~3.0:1
Efficiency (%): ~70.0, ~70.9
Peak Gain (dBi): ~2.3, ~3.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW1115-C952B", "title": "868/915 MHz ISM Ground Plane Independent Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "135 × 19 × 10", "elements": [ { "elementID": "ISM", "type": "ISM", "technologies": [ "Sigfox", "LoRa", "LPWA", "RFID", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-15.1", "vswr": "~1.5:1", "efficiency_percent": "~70.0", "peakGain_dbi": "~2.3", "averageGain_db": "~-1.6" }, { "range_mhz": "902-928", "returnLoss_db": "~-6.1", "vswr": "~3.0:1", "efficiency_percent": "~70.9", "peakGain_dbi": "~3.3", "averageGain_db": "~-1.5" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM", "type": "SMA-Male", "cableType": null, "cableLength_mm": null } ] }
