2J  |  SKU: 2JW1126-C952B

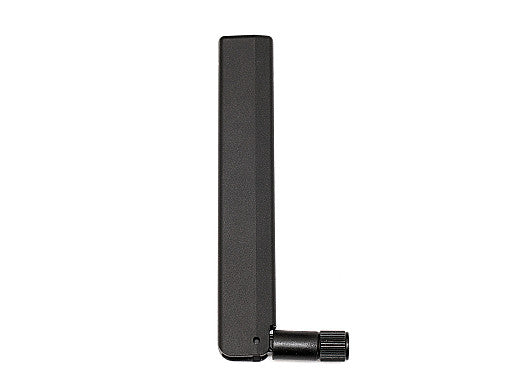

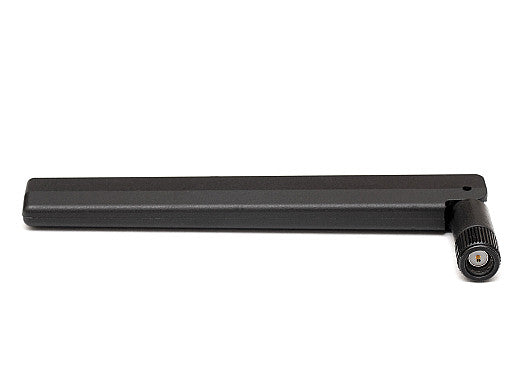

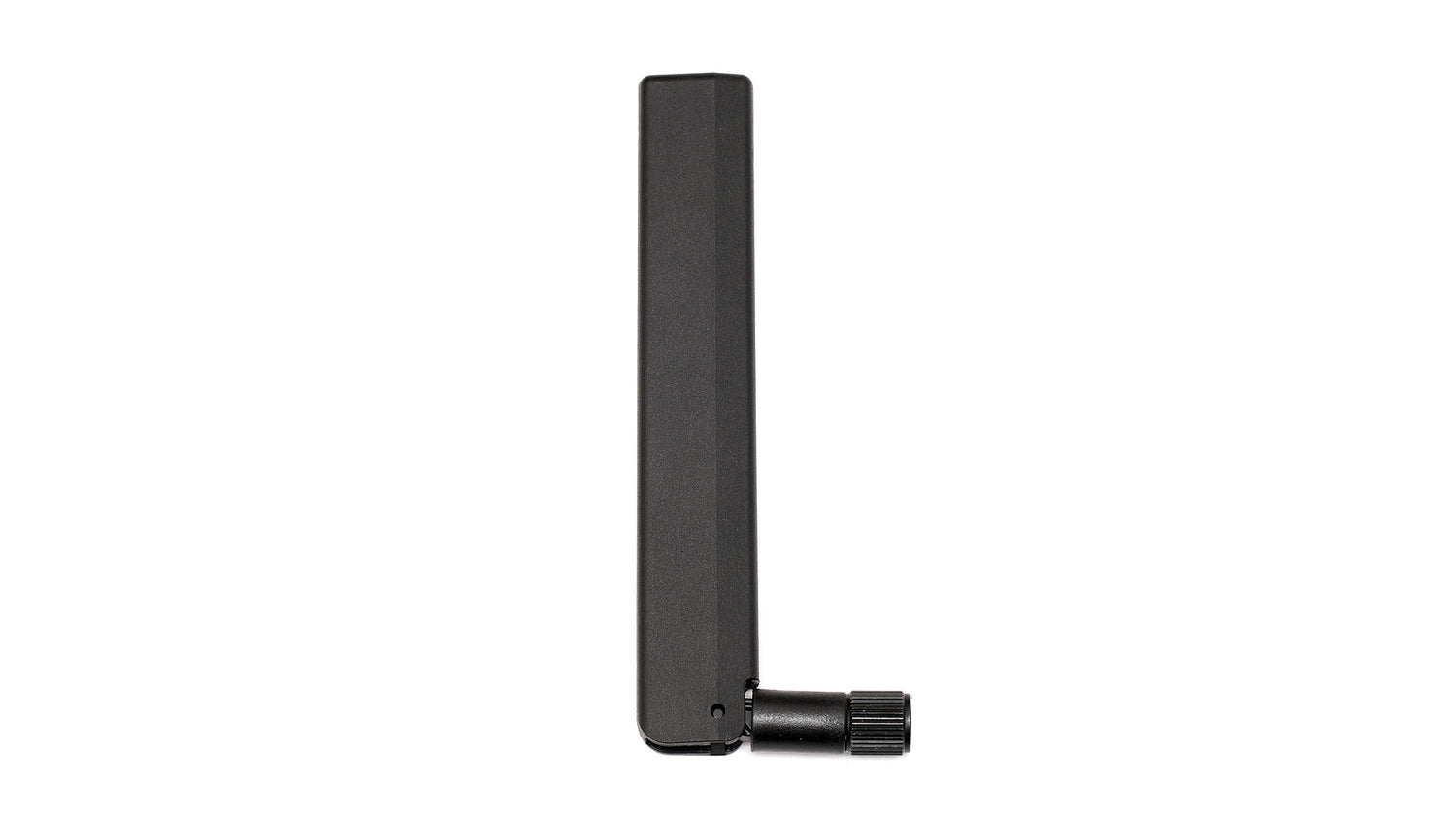

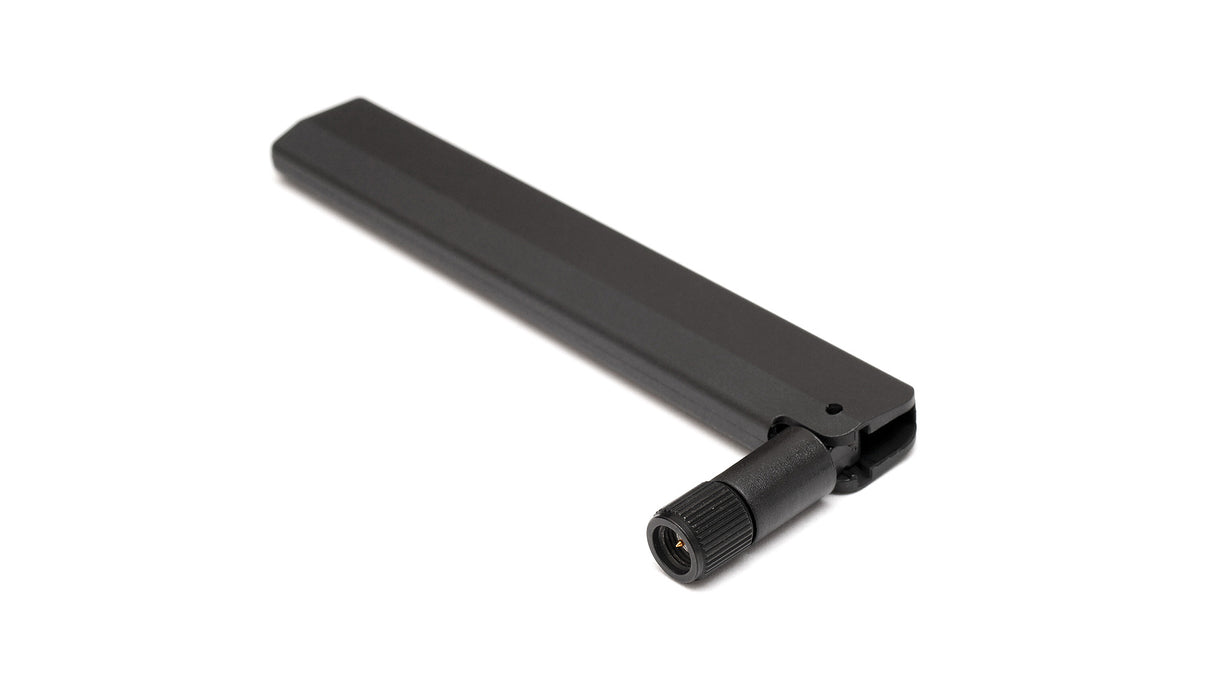

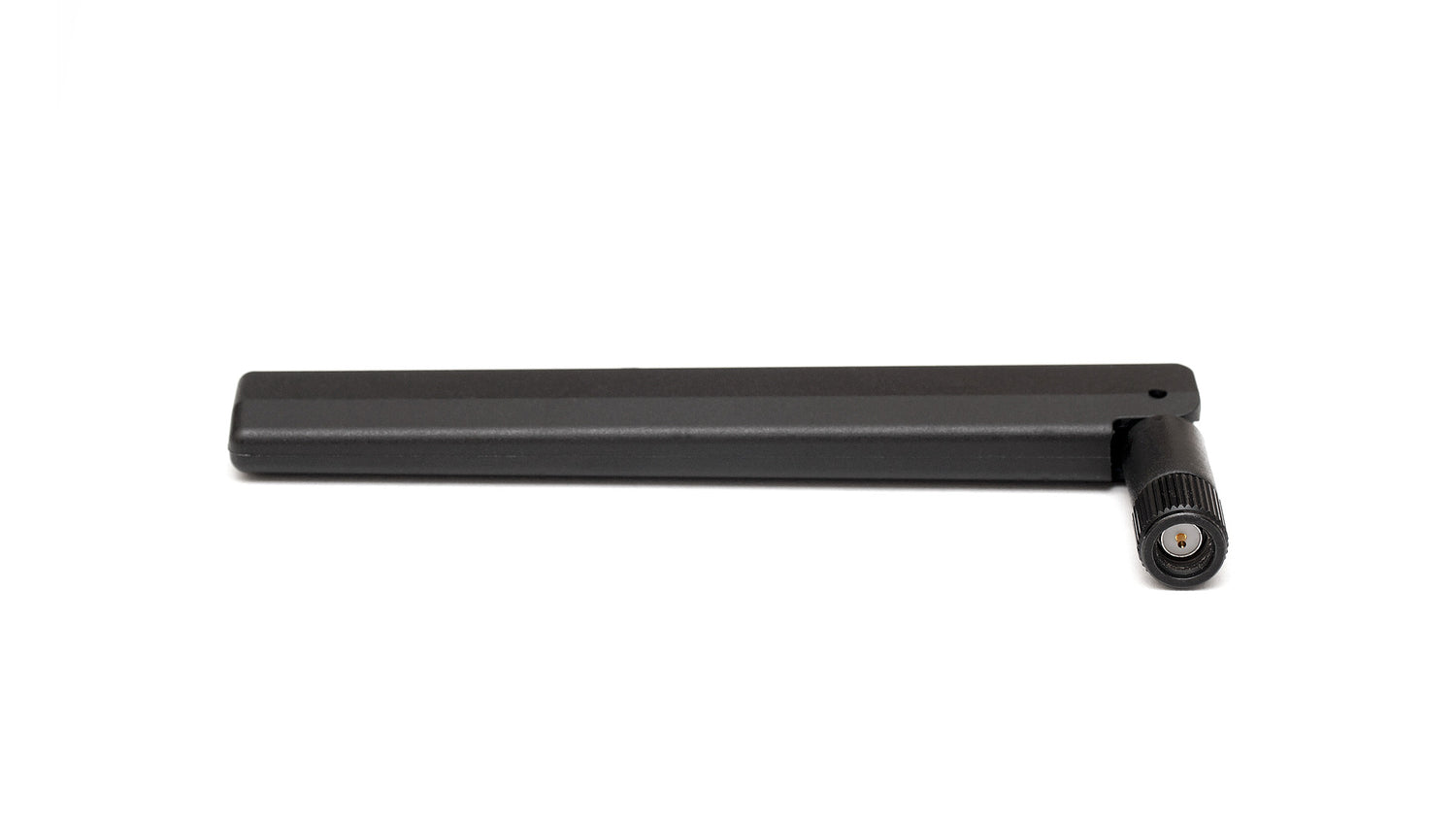

2JW1126-C952B Iridium connector mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-efficiency antenna is designed for optimal performance on the Iridium satellite network, supporting reliable connectivity within the 1616-1627 MHz frequency range. Its ground plane independent dipole design ensures consistent signal quality, making it ideal for demanding applications such as satellite internet, transportation, agriculture, marine, mining, asset tracking, aviation, military, remote monitoring, and emergency communications. The hinged connector mount allows for flexible installation in a variety of environments.

Connections

IRIDIUM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 135 × 19 × 10 mm

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.4:1
Efficiency (%): ~85.5
Passive Gain (dBiC): ~2.5
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarization: Linear

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW1126-C952B", "title": "Iridium Certified High Efficiency Connector Mount Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "135 × 19 × 10", "elements": [ { "elementID": "Iridium", "type": "Iridium", "technologies": [ "Iridium" ], "frequencies": [ { "range_mhz": "1616-1627", "returnLoss_db": "~-14.8", "vswr": "~1.4:1", "efficiency_percent": "~85.5", "peakGain_dbi": "~2.5", "averageGain_db": "~-0.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Iridium", "type": "SMA-Male-Black", "cableType": null, "cableLength_mm": null } ] }
