2J  |  SKU: 2JW1302-C442B

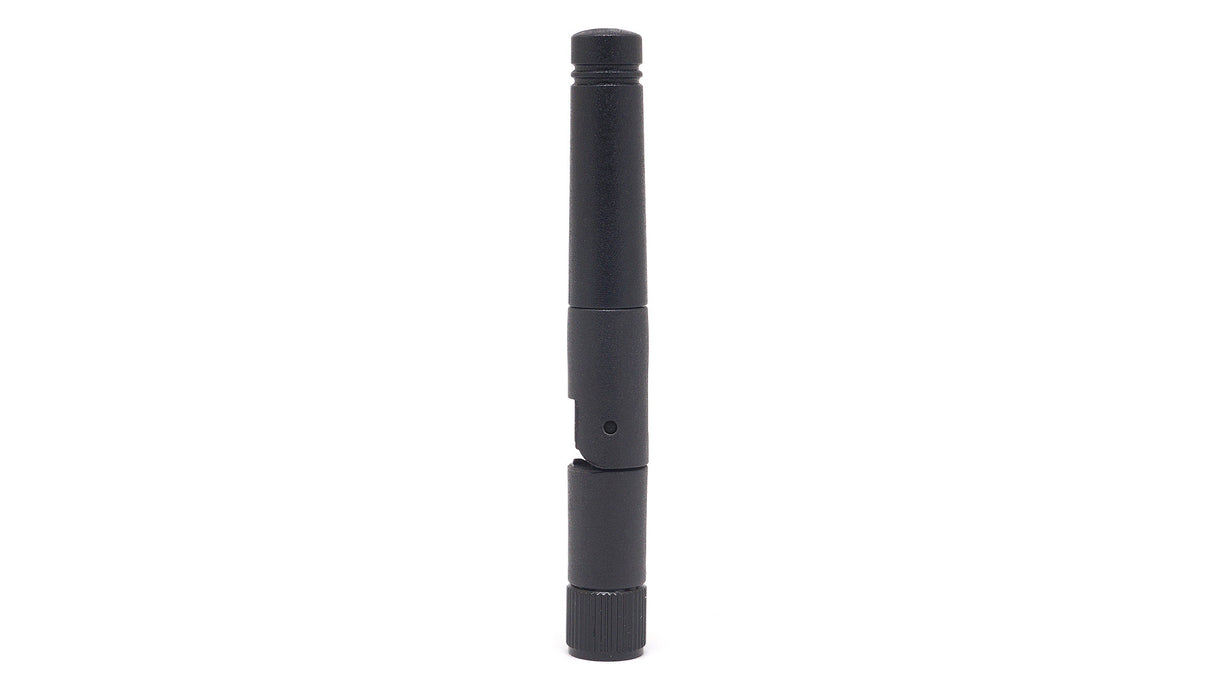

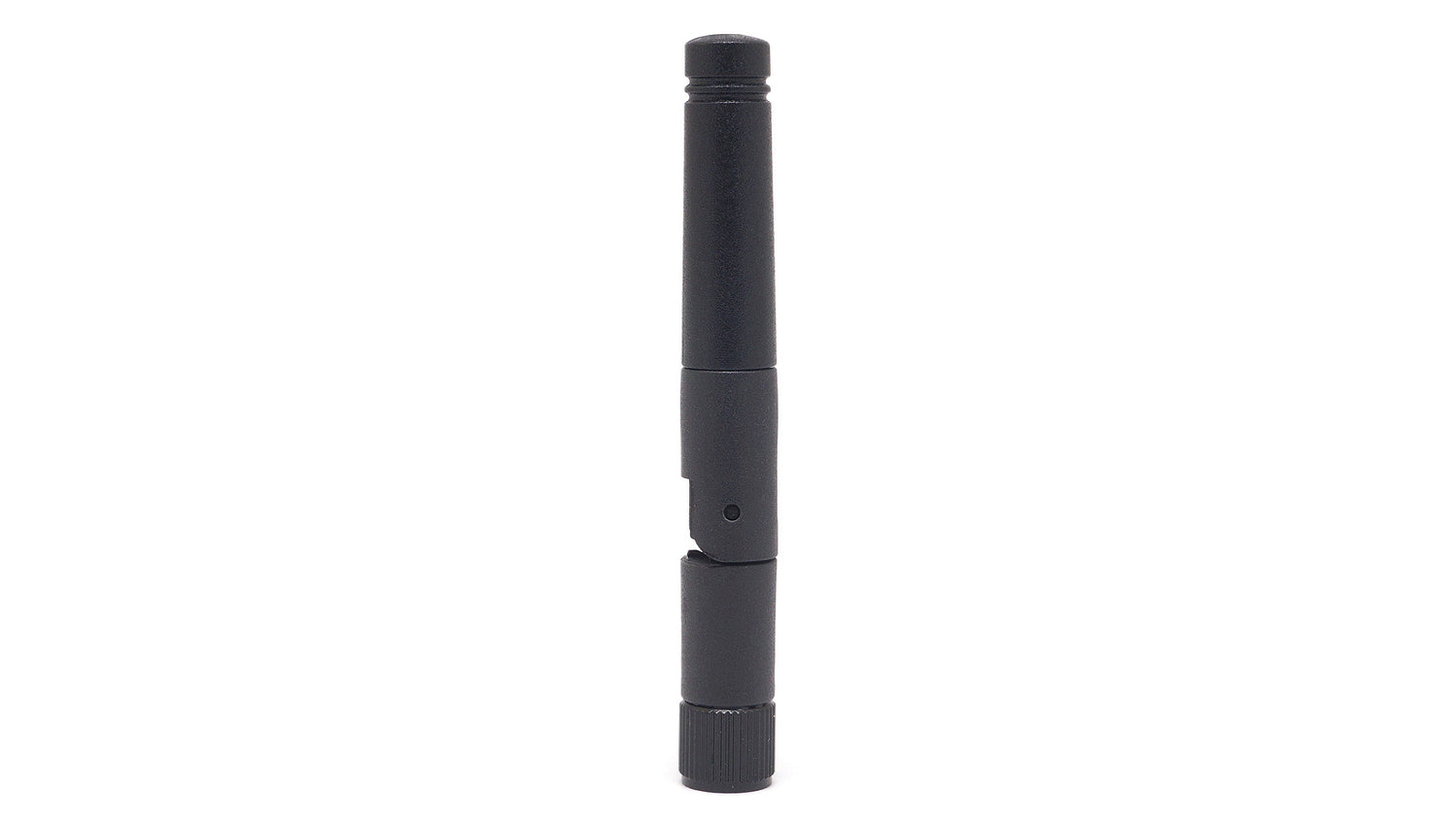

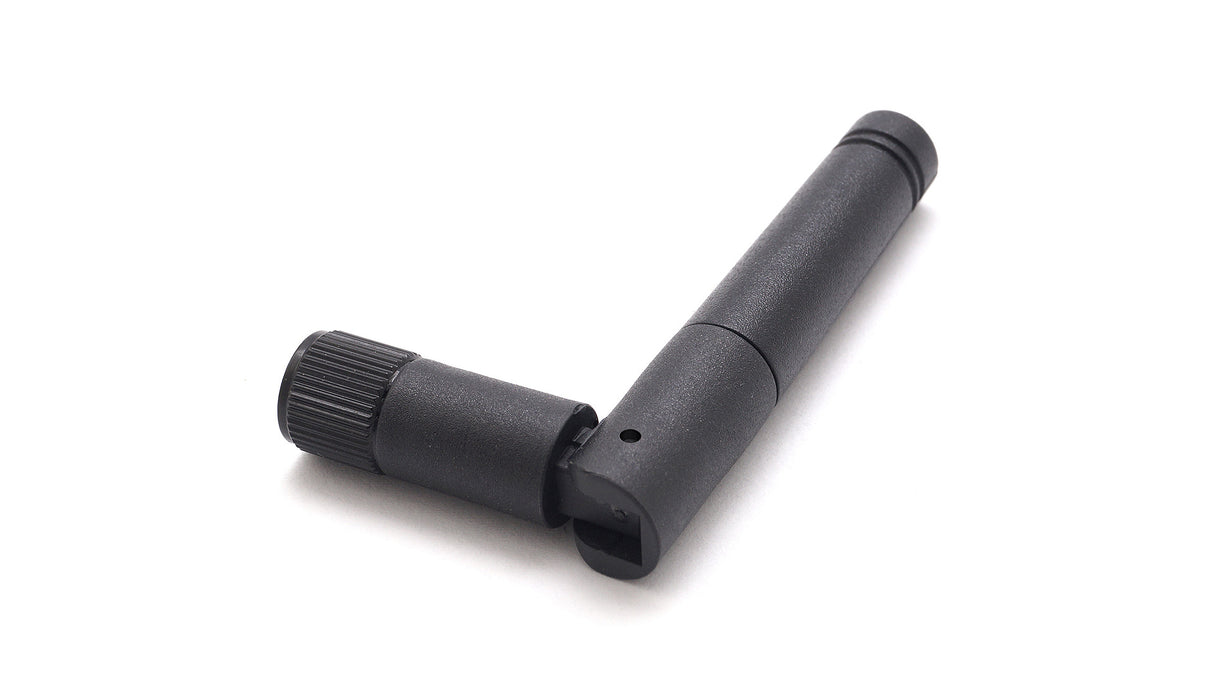

2JW1302-C442B Wi-Fi, ISM swivel Antenna Connector Mount

€7,60
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-wideband antenna is designed for reliable performance across both 2.4 GHz and 5.0 GHz ISM bands, making it ideal for Wi-Fi, Bluetooth, ZigBee, and other short-range wireless applications. Its compact dipole design and ground plane independence ensure consistent efficiency and gain, even in challenging installation environments. The hinged connector allows for flexible positioning, making it suitable for a wide range of devices and installations in smart home, industrial, transportation, and IoT applications.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 76 x Ø 10 mm

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.1:1, ~2.8:1
Efficiency (%): ~35, ~60
Peak Gain (dBi): ~1.4, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JW1302-C442B", "title": "2.4/5.0 GHz ISM Dual Band Dipole Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "76 x Ø 10", "elements": [ { "elementID": "ISM/Wi-Fi/Bluetooth/ZigBee", "type": "ISM", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-8.9", "vswr": "~2.1:1", "efficiency_percent": "~35", "peakGain_dbi": "~1.4", "averageGain_db": "~-4.5" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-9.6", "vswr": "~2.8:1", "efficiency_percent": "~60", "peakGain_dbi": "~3.2", "averageGain_db": "~-2.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM/Wi-Fi/Bluetooth/ZigBee", "type": "RP-SMA-Male-RA", "cableType": null, "cableLength_mm": null } ] }
