2J  |  SKU: 2JWIFI12

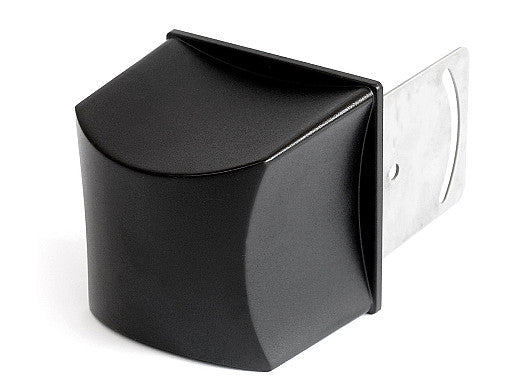

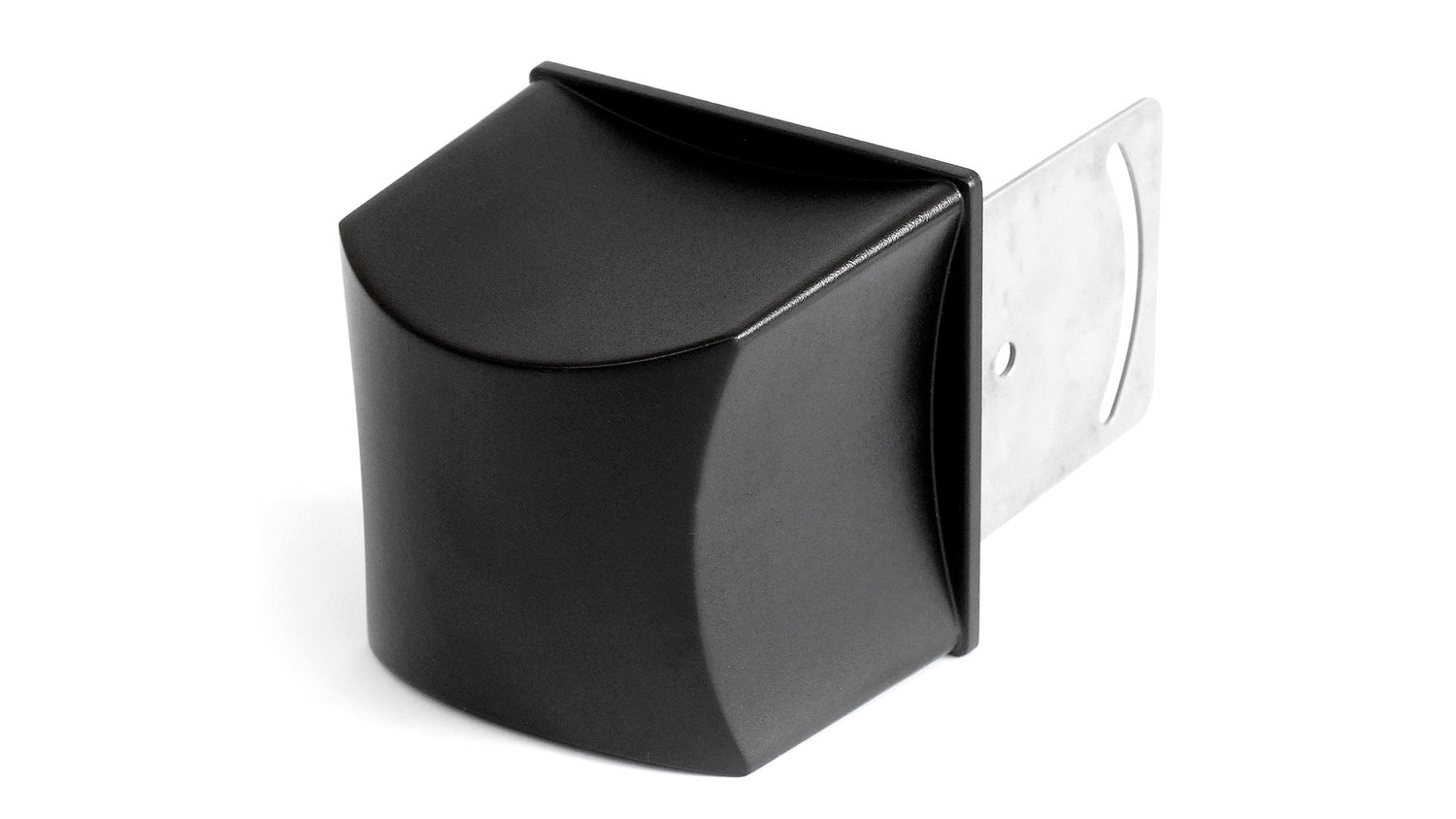

2JWIFI12 Wi-Fi, ISM directional Antenna pole mount

€22,00
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-gain directional antenna is designed for Wi-Fi and ISM applications, delivering robust performance and reliable connectivity in demanding environments. Its directional pattern and ground plane independence make it ideal for focused wireless coverage, while the 7.2 dBi peak gain ensures strong signal strength. Suitable for a wide range of uses including smart home, smart cities, entertainment, healthcare, transportation, and industrial automation.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Pole Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Dimensions: 104 x 104 x 90 mm

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~1.8:1
Efficiency (%): ~60, ~63
Peak Gain (dBi): ~7.2, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JWIFI12", "title": "WiFi ISM High Gain 7.2 dBi (2.4 GHz) Directional Antenna", "mountingType": "Mast Mount", "ipRating": null, "dimensions_mm": "104 x 104 x 90", "elements": [ { "elementID": "Wi-Fi", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-12.7", "vswr": "~1.6:1", "efficiency_percent": "~60", "peakGain_dbi": "~7.2", "averageGain_db": "~-2.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-10.8", "vswr": "~1.8:1", "efficiency_percent": "~63", "peakGain_dbi": "~5.2", "averageGain_db": "~-2.0" } ], "polarization": "Linear", "radiationPattern": "Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi", "type": "N-Male", "cableType": "LMR195", "cableLength_mm": 3000 } ] }
