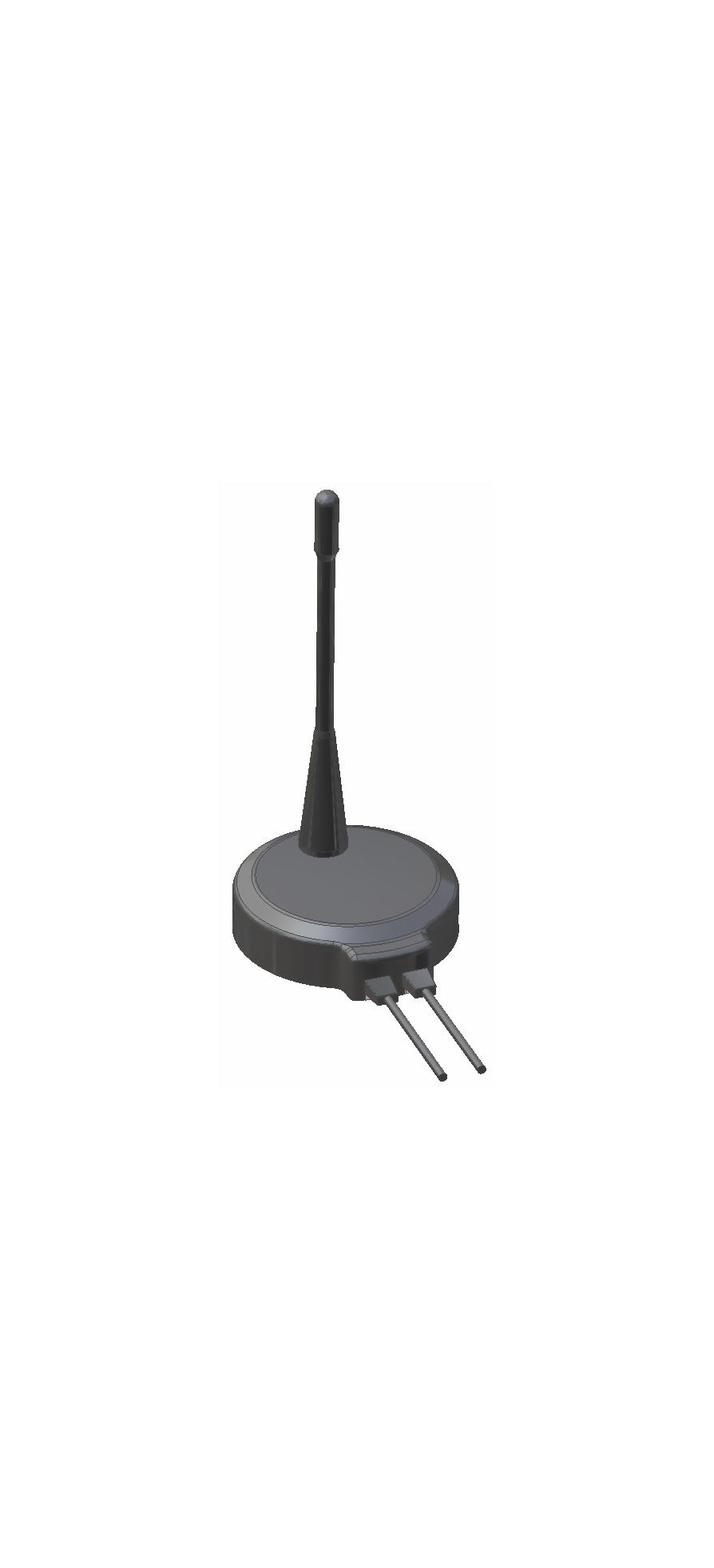

LTE/UHF/GNSS Combination External Magnetic Patch Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The LTE/UHF/GNSS combination antenna is a low-profile, high-performance solution designed for simultaneous satellite navigation and UHF communications. Featuring an active GNSS patch and a 1/4λ UHF whip, it is ideal for fleet management, vehicle tracking, and mission-critical wireless applications.

Technical Specifications

  • GNSS Antenna Type: Active Planar Patch
  • GNSS Center Frequency: 1575.42 & 1600 MHz
  • GNSS Bandwidth: 10 MHz
  • GNSS VSWR: Less than 2.0
  • GNSS Impedance: 50 Ohm
  • GNSS Polarization: RHCP
  • GNSS Supply Voltage: 2.7 – 5 V
  • GNSS Gain: 17 ± 2 dB
  • GNSS Noise Figure: < 1.5 dB
  • GNSS Operating Temperature: -30°C to +80°C
  • UHF Antenna Type: 1/4λ Mobile Antenna
  • UHF Frequency Range: 380–470 MHz
  • UHF Bandwidth: 30 MHz
  • UHF Impedance: 50 Ohm
  • UHF Max Power: 20 W
  • UHF VSWR: Less than 1.5
  • UHF Emission: Omnidirectional
  • UHF Gain: 2.14 dBi
  • UHF Rod Length: 135 ± 10 mm
  • UHF Rod Section: 1 mm
  • Cable Length: RG174, 2500 ± 20 mm
  • GNSS Connector: SMA male
  • UHF Connector: FME male
  • Material (Cap): Polyamide 6
  • Material (Base): Zamac
  • Colour: Black
  • Net Weight: 250 ± 10 g
  • Dimensions: Ø73 × 22 mm
  • Mounting: Magnetic
  • Operating Temperature: -40°C to +80°C
