Alda PQ  |  SKU: ANT-TNR1345

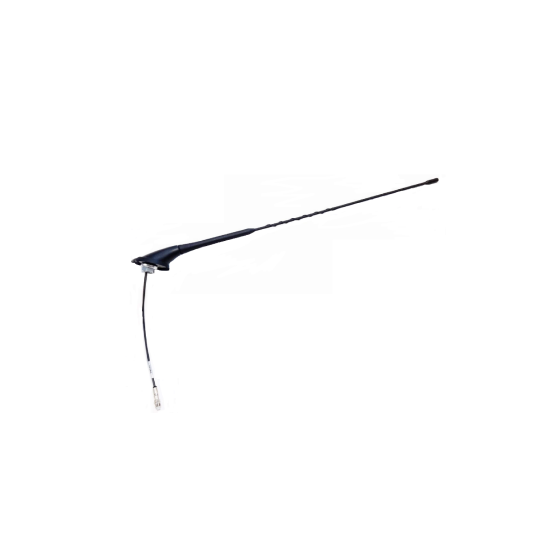

TETRA Omnidirectional Antenna 380-430 MHz External Mobile

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The TETRA Omnidirectional Antenna is a high-performance mobile antenna designed for TETRA communication systems operating in the 380-430 MHz frequency range. Featuring a robust polyamide construction, 5 dBi gain, and front mounting design, it is ideal for professional mobile radio, emergency services, and secure communications.

Technical Specifications

  • Frequency Range: 380-430 MHz
  • Gain: 5 dBi
  • VSWR: Less than 2.3
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Emission: Omnidirectional
  • Max Power: 20 W
  • Rod Length: 500 ± 10 mm
  • Rod Elevation: 28°
  • Rod Section: 1
  • Base Dimensions: Length 60 mm, Width 45 mm
  • Mounting Hole: Squared 15x15 mm, Round Ø 19 mm
  • Operating Temperature: -30°C to +80°C
  • Material (Cap): Polyamide 6
  • Material (Gasket): Arnitel EP 400
  • Material (Rod): Pibiflex 2564
  • Colour: Black
  • Cable Length: RG 174, 330 ± 20 mm
  • Connector: FME female
  • Extension Cable: RG 58, 5000 ± 20 mm, TNC male / FME male

Technical Specifications (AI Reference Data)

{'frequency_range': '380-430 MHz', 'gain': '5 dBi', 'vswr': 'Less than 2.3', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'emission': 'Omnidirectional', 'max_power': '20 W', 'rod_length': '500 ± 10 mm', 'rod_elevation': '28°', 'rod_section': '1', 'base_dimensions': 'Length 60 mm, Width 45 mm', 'mounting_hole': 'Squared 15x15 mm, Round Ø 19 mm', 'operating_temperature': '-30°C to +80°C', 'material_cap': 'Polyamide 6', 'material_gasket': 'Arnitel EP 400', 'material_rod': 'Pibiflex 2564', 'colour': 'Black', 'cable_length': 'RG 174, 330 ± 20 mm', 'connector': 'FME female', 'extension_cable': 'RG 58, 5000 ± 20 mm, TNC male / FME male'}
