Alda PQ  |  SKU: ANT-TXS1245

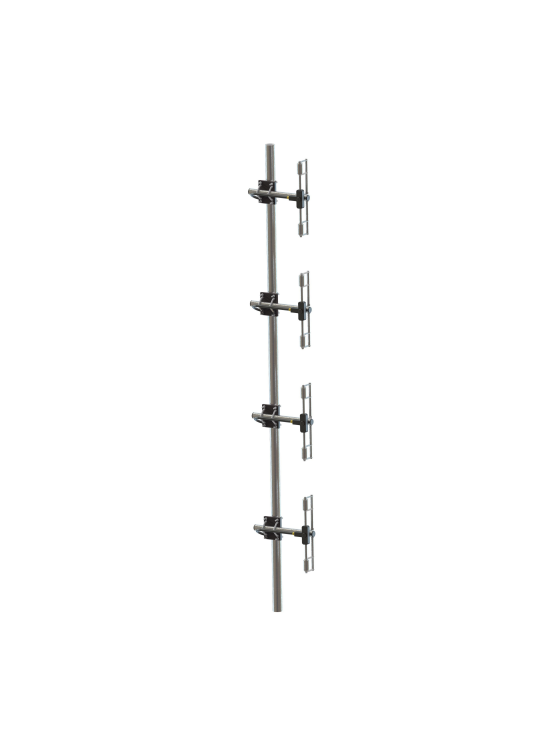

UHF Directive Antenna 380-430 MHz External Array

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Directive Antenna 380-430 MHz External Array is a high-gain antenna system featuring four folded dipoles, designed for professional UHF communication applications. With robust construction using aluminum alloys and stainless steel, it offers 10 dBi gain, vertical polarization, and reliable performance in harsh environments.

Technical Specifications

  • Frequency Range: 380–430 MHz
  • Gain: 10 dBi
  • VSWR: Less than 2.0
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Connector: N-female
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 2700 mm
  • Material: Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS)
  • Max Power: 600 W
  • Wind Resistance: 160 Km/h
  • Net Weight: 8000 g
  • Mounting: On masts from 33 to 60 mm diameter

Technical Specifications (AI Reference Data)

{'frequency_range': '380–430 MHz', 'gain': '10 dBi', 'vswr': 'Less than 2.0', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'connector': 'N-female', 'operating_temperature': '-40°C to +85°C', 'dimensions': '2700 mm', 'material': 'Boom: Aluminium alloy EN AW-6082; Elements: Aluminium alloy EN AW-6060; Screws and nuts: Stainless steel; Treatment: Surtec650 (RoHS)', 'max_power': '600 W', 'wind_resistance': '160 Km/h', 'net_weight': '8000 g', 'mounting': 'On masts from 33 to 60 mm diameter'}
