Alda PQ  |  SKU: ANT-TXS1254

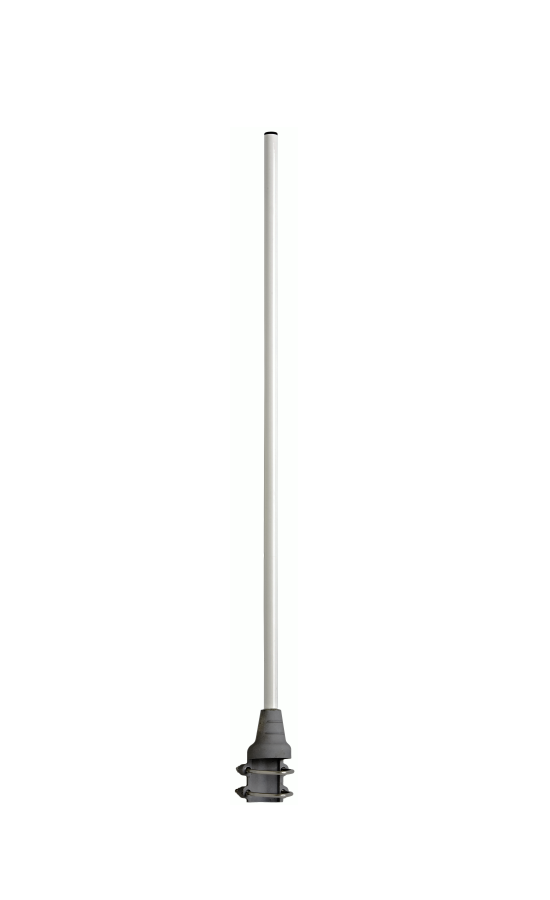

UHF Omnidirectional Antenna 375-400 MHz External Whip

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Omnidirectional Antenna is designed for reliable communication in the 375-400 MHz frequency range. Featuring 5 dBi gain and robust construction with an epoxy glass mast and aluminum bracket, it is ideal for professional radio, telemetry, and industrial applications requiring durable outdoor performance.

Technical Specifications

  • Frequency Range: 375–400 MHz
  • Gain: 5 dBi
  • VSWR: Less than 1.6
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Connector: N-female
  • Mounting: On masts from 33 to 60 mm diameter
  • Beamwidth (-3 dB): 30°
  • Max Power: 100 W
  • Wind Resistance: 160 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 1580 mm
  • Net Weight: 1600 g
  • Material: Bracket: Aluminium alloy EN AB-44100; Mast: Epoxy glass; Screws/Nuts: Stainless steel

Technical Specifications (AI Reference Data)

{'frequency_range': '375–400 MHz', 'gain': '5 dBi', 'vswr': 'Less than 1.6', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'connector': 'N-female', 'mounting': 'On masts from 33 to 60 mm diameter', 'beamwidth_-3db': '30°', 'max_power': '100 W', 'wind_resistance': '160 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '1580 mm', 'net_weight': '1600 g', 'material': 'Bracket: Aluminium alloy EN AB-44100; Mast: Epoxy glass; Screws/Nuts: Stainless steel'}

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
