Alda PQ  |  SKU: ANT-TXS1257

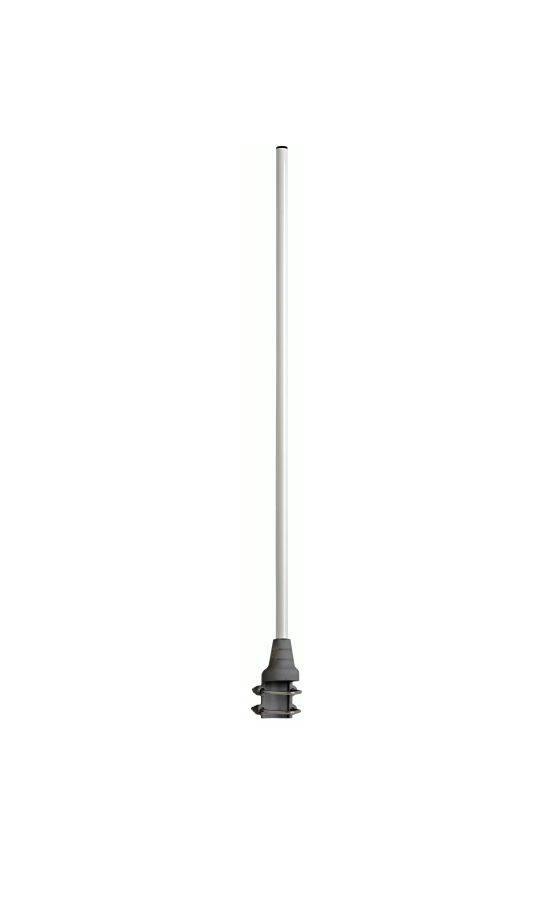

UHF Omnidirectional Antenna 435-470 MHz External Omni

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Omnidirectional Antenna is designed for reliable communication in the 435-470 MHz frequency range. With a robust construction and 7 dBi gain, it is ideal for professional radio, telemetry, and industrial wireless applications requiring durable outdoor performance.

Technical Specifications

  • Frequency Range: 435-470 MHz
  • Gain: 7 dBi
  • VSWR: Less than 1.6
  • Impedance: 50 Ohm
  • Beamwidth (-3 dB): 22°
  • Polarization: Vertical
  • Connector: N-female
  • Mounting: On masts from 33 to 60 mm diameter
  • Max Power: 100 W
  • Wind Resistance: 180 Km/h
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 2300 mm
  • Net Weight: 2200 g
  • Bracket Material: Aluminium alloy EN AB-44100
  • Cylindric Mast Material: Epoxy glass
  • Screws and Nuts: Stainless steel
  • Special Features: DC grounded system and condensing hole

Technical Specifications (AI Reference Data)

{'frequency_range': '435-470 MHz', 'gain': '7 dBi', 'vswr': 'Less than 1.6', 'impedance': '50 Ohm', 'beamwidth_-3db': '22°', 'polarization': 'Vertical', 'connector': 'N-female', 'mounting': 'On masts from 33 to 60 mm diameter', 'max_power': '100 W', 'wind_resistance': '180 Km/h', 'operating_temperature': '-40°C to +85°C', 'dimensions': '2300 mm', 'net_weight': '2200 g', 'bracket_material': 'Aluminium alloy EN AB-44100', 'cylindric_mast_material': 'Epoxy glass', 'screws_and_nuts': 'Stainless steel', 'special_features': 'DC grounded system and condensing hole'}
