Alda PQ  |  SKU: ANT-TXS1259

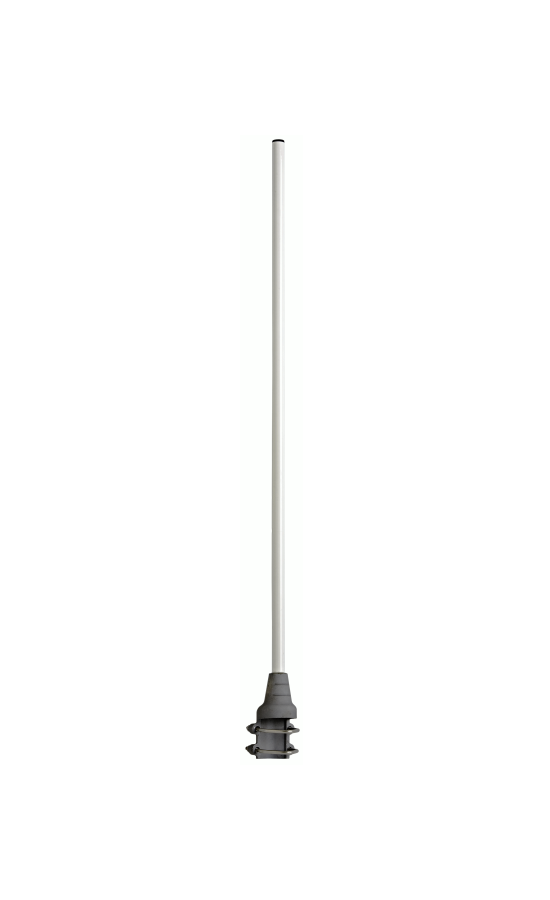

UHF Omnidirectional Antenna 380-470 MHz External Tube

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

The UHF Omnidirectional Antenna is designed for reliable communication in the 380-470 MHz frequency range. Featuring a rugged tube form factor and vertical polarization, it is ideal for professional radio, public safety, and industrial wireless applications. The antenna offers 2.14 dBi gain, robust weather resistance, and easy mast mounting for outdoor installations.

Technical Specifications

  • Frequency Range: 380-470 MHz
  • Gain: 2.14 dBi
  • VSWR: Less than 1.5
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Beamwidth (-3 dB): 68°
  • Connector: N-female
  • Max Power: 100 W
  • Wind Resistance: 160 Km/h
  • Operating Temperature: -40°C to +85°C
  • Mounting: On masts from 33 to 60 mm diameter
  • Dimensions: Length: 650 mm, Tube diameter: 24 mm
  • Net Weight: 1000 g
  • Material: Bracket: Aluminium alloy EN AB-44100, Mast: Epoxy glass, Screws/Nuts: Stainless steel

Technical Specifications (AI Reference Data)

{'frequency_range': '380-470 MHz', 'gain': '2.14 dBi', 'vswr': 'Less than 1.5', 'impedance': '50 Ohm', 'polarization': 'Vertical', 'beamwidth_-3db': '68°', 'connector': 'N-female', 'max_power': '100 W', 'wind_resistance': '160 Km/h', 'operating_temperature': '-40°C to +85°C', 'mounting': 'On masts from 33 to 60 mm diameter', 'dimensions': 'Length: 650 mm, Tube diameter: 24 mm', 'net_weight': '1000 g', 'material': 'Bracket: Aluminium alloy EN AB-44100, Mast: Epoxy glass, Screws/Nuts: Stainless steel'}
