Description

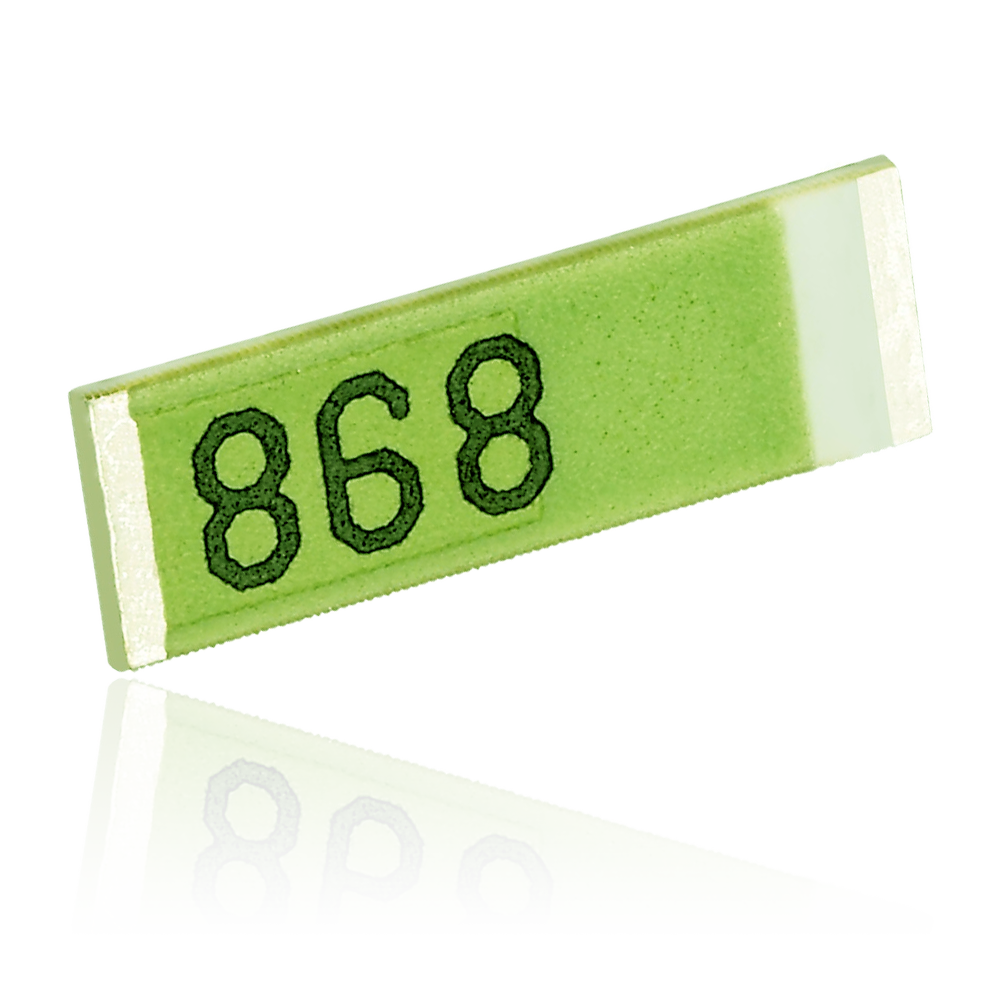

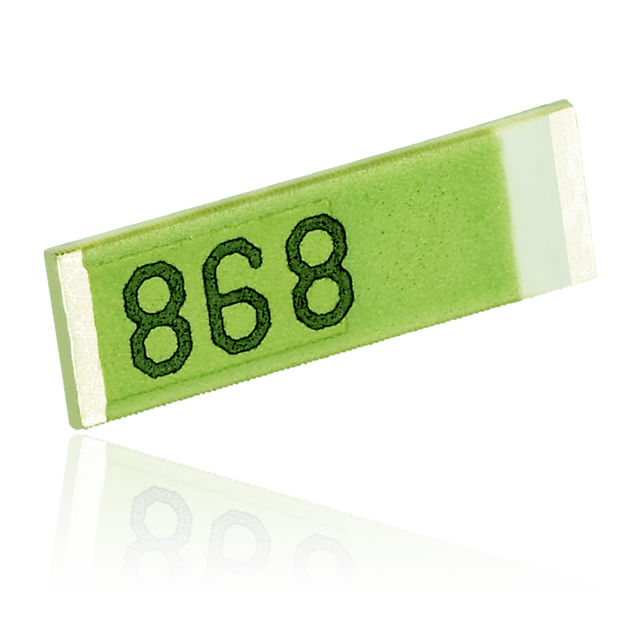

The ILA.02 is a compact 868 MHz ISM band loop antenna designed for embedded devices in Europe. Its low-profile ceramic chip format supports efficient, omni-directional performance to help maintain reliable links even when device orientation changes.
For best results, place the antenna at the center of the board edge and follow standard SMT assembly practices for correct soldering and consistent RF performance.
- Designed for space-constrained devices: low-profile embedded chip style
- Reliable orientation performance: omni-directional radiation characteristics
- Ideal for European 868 MHz designs: suitable for ISM/LoRa deployments
Typical applications include: Automated Meter Reading (AMR), Radio Frequency Identification (RFID), Remote Monitoring, Healthcare, and Sensing.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Loop
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 863-870 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-directional
Efficiency (%): 58.7
Average Gain (dB): -2.31
Peak Gain (dBi): 0.95
VSWR: 1.5
Max. Input Power: 5W
Dimensions (mm): 10 x 3.2 x 0.5
Required Space (mm): 11 x 10.4
Material: Ceramic
Weight (g): 2
Storage Temperature: -40°C to 105°C
Humidity: 40% to 95%
Moisture Sensitivity Level: 3 (168 Hours)
RoHS: Yes
