Description

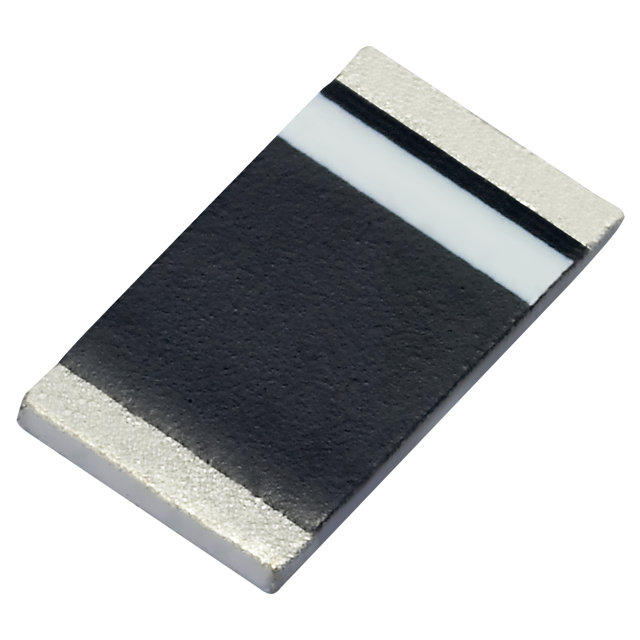

Embedded 915MHz LPWAN antenna for compact devices. The ILA.09 is a low-profile, embedded ceramic chip antenna designed for 915MHz ISM-band devices used in US LoRa and Sigfox deployments, including automotive and metering use cases.
Its omnidirectional radiation characteristics help maintain performance across varying device orientations, making it well-suited for products that may move during operation. For best results, it works best when placed at the center of the board edge and integrated via SMT in high-volume production designs.
- Low-profile, tiny chip format for space-constrained designs
- Omnidirectional radiation to support changing device orientation
- SMT-friendly integration for reliable, repeatable assembly
- Designed for 915MHz ISM band LPWAN solutions
Typical Applications
- Sigfox
- LoRa
- LPWAN
- Automated Meter Reading (AMR)
- RFID
- Remote Monitoring
- Healthcare
- Sensing
- Alarm Systems
- Handheld Devices
- Automotive
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox, LPWAN
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: ISM
Type: Single
Storage Temperature: -40°C to 85°C
Humidity: 20% to 70%
Moisture Sensitivity Level: 3 (168 Hours)
Dimensions: 5*3*0.5mm RoHS and REACH Compliant
Ground plane: 80 x 40 mm
Weight: 0.02 g
ISM / LoRa / Sigfox
Frequency: 902MHz - 928MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2.5:1
Efficiency (%): 49.1
Average Gain (dB): -3.09
Peak Gain (dBi): 1.57
Gain (Max): 2.5
Radiation Pattern: Omni
Max. input power: 2W
