Description

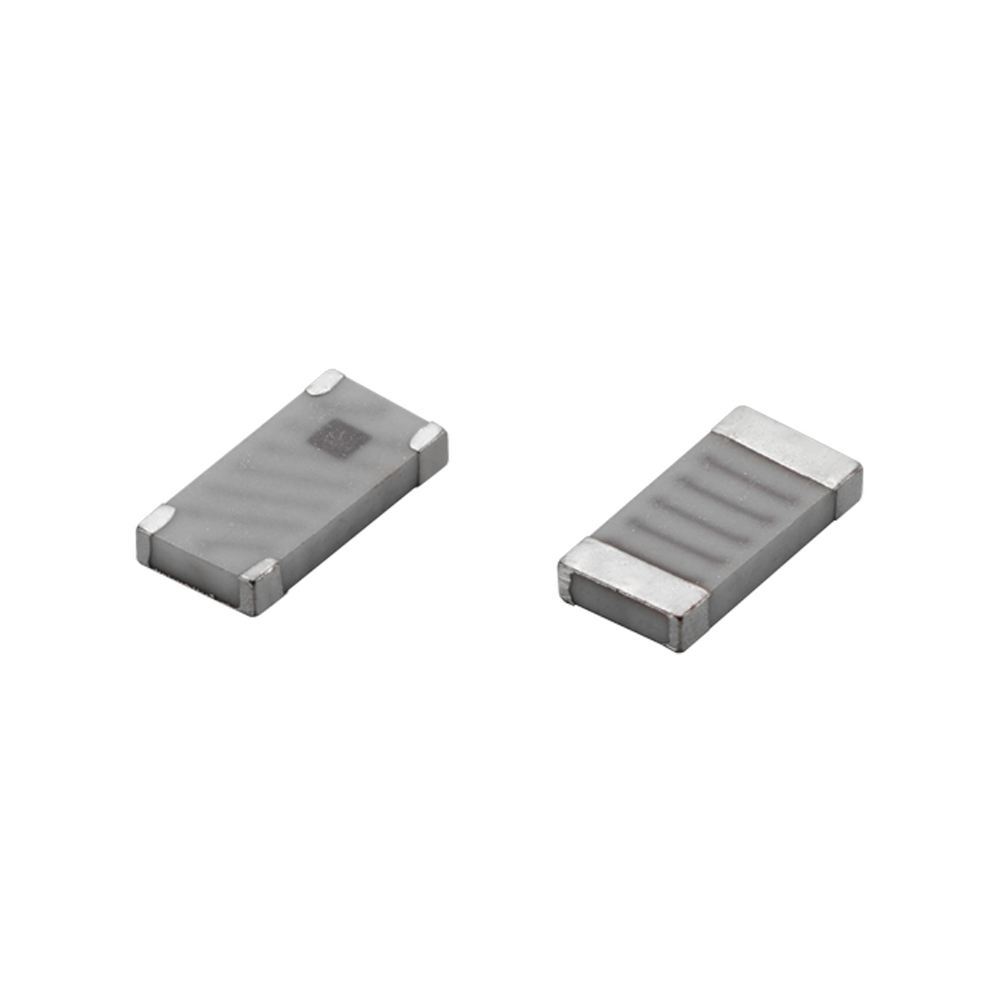

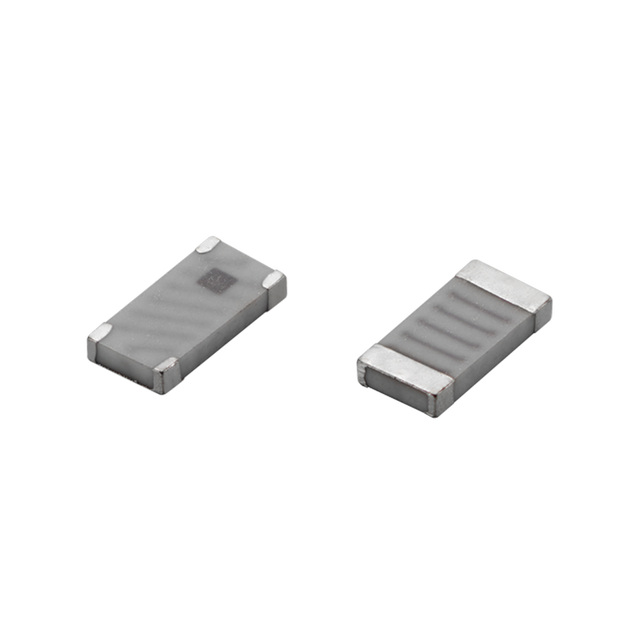

ILA.257 is a compact LTCC chip antenna designed for next-generation Wi-Fi 6 and Wi-Fi 7 devices requiring tri-band coverage in a single, space-saving antenna element. Its surface-mount form factor and tight manufacturing tolerances support reliable RF performance and efficient automated assembly.
- Tri-band Wi-Fi coverage: supports 2.4GHz, 5GHz, and 6GHz (Wi-Fi 6E/7 band)
- Compact chip format: ideal for space-constrained embedded designs
- Stable performance: built for consistent operation across a wide temperature range
Typical applications include:
- Consumer Electronics
- Automotive and Transportation
- Wearable Technology
- Medical Devices
- Networking Equipment
Installation / Environmental
The following is an example on how to integrate the ILA.257 into a design. This antenna has 2 pins, where one pin is used for the RF Feed. The manufacturer recommends using a minimum of 30x40mm ground plane (PCB) to ensure optimal performance.
Top view of PCB reference design
Please find the Integration files in Altium, 2D formats and the 3D model for the ILA.257 here:
(Link Needed)
4.1 Schematic Symbol and Pin Definition
Above is a 3D model of the ILA.257 on a PCB reference design.
The circuit symbol for the ILA.257 is shown below. The antenna has 2 pins as indicated below.
Pin Description
1 RF Feed
2 Mechanical, No Connection
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Single
Frequency: 2400MHz - 7125MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2.5:1
Dimensions: 3.2mm x 1.6mm x 0.5 mm
Weight: 0.02g
Material: Ceramic
Storage Temperature: -10°C to 40°C
Relative Humidity: Non-condensing 40°C 75% RH
Moisture Sensitivity Level: 1
Wi-Fi 6/7
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Standards: Wi-Fi 6, Wi-Fi 7
Efficiency (%): 43.5 (2.4GHz), 58.2 (5GHz), 71.5 (6GHz)
Average Gain (dB): -3.62 (2.4GHz), -2.35 (5GHz), -1.46 (6GHz)
Peak Gain (dBi): 2.95 (2.4GHz), 1.63 (5GHz), 3.38 (6GHz)
Radiation Pattern: Omni (2.4GHz), Directional (5GHz)
Max Input Power: 3W
