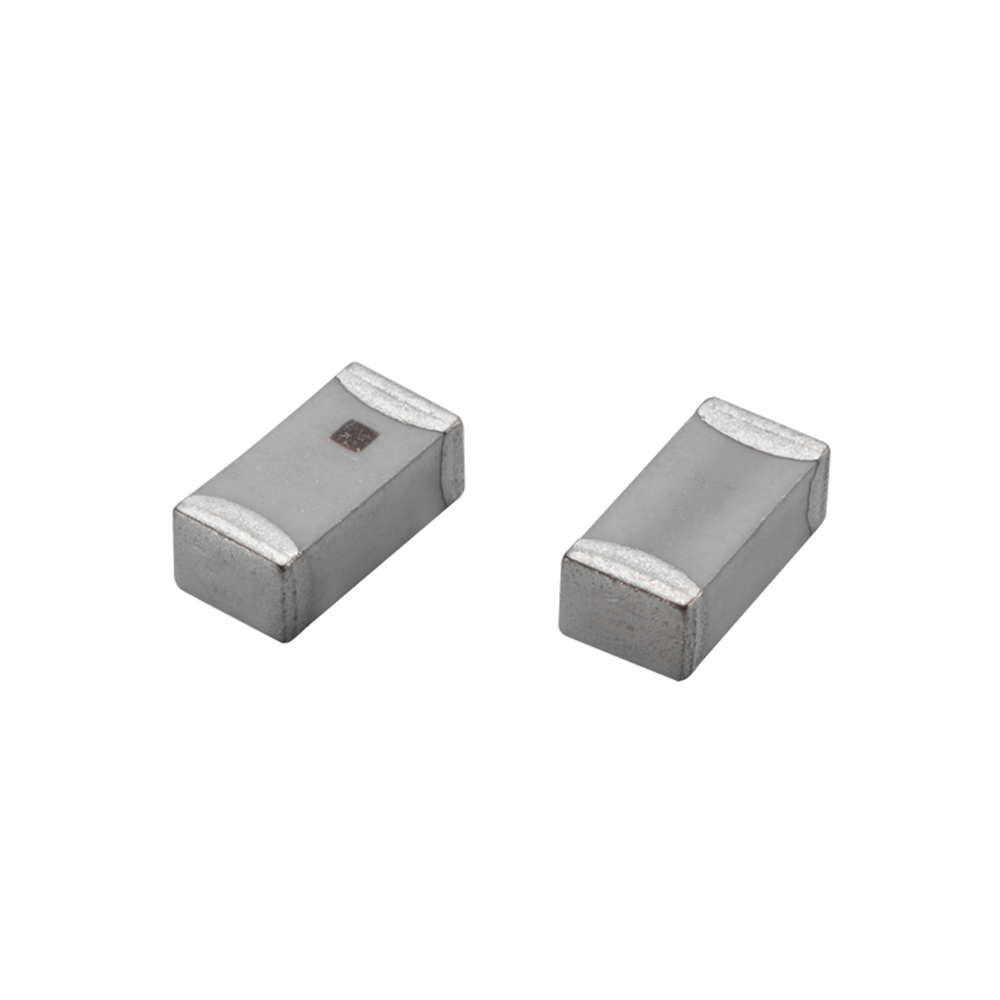

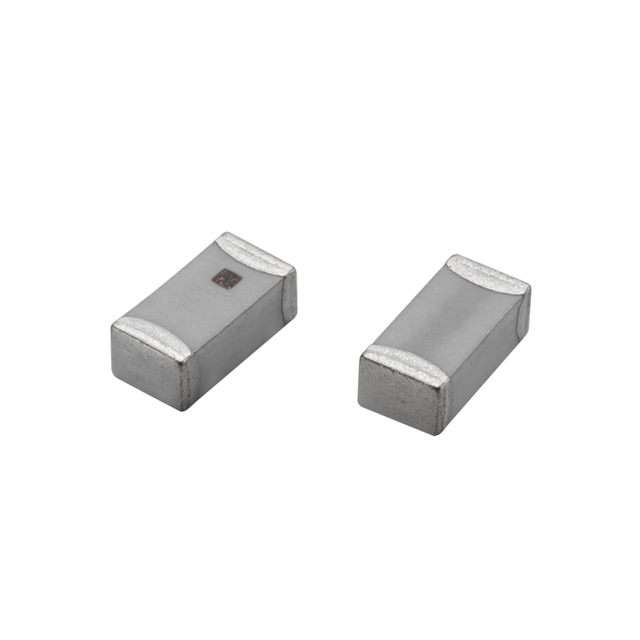

ILA.68 Antenna UWB 6-8.5GHz LTCC chip SMD/SMT for Indoor Accuracy Positioning Systems, Consumer Electronics, Automotive Applications (key less etc), Internet of Things (IoT) Devices

This compact embedded LTCC chip antenna is designed for Ultra-Wideband (UWB) devices operating across the 6GHz to 8.5GHz range. It is suited to space-constrained product designs that require stable gain and reliable omnidirectional radiation characteristics for robust UWB connectivity.

Common use cases include precise indoor location tracking, high-data-rate UWB communications, and radar-based sensing across industrial, consumer, and automotive device platforms.

• Typical applications: Indoor Accuracy Positioning Systems, Consumer Electronics, Automotive Applications (key less etc), Internet of Things (IoT) Devices, Security and Access Control, Augmented and Virtual Reality (AR/VR)

Installation / Environmental

The following is an example on how to integrate the ILA.68 into a design. This antenna has 2 pins, where one pin is used for the RF Feed. Taoglas recommends using a minimum of 35x31mm ground plane (PCB) to ensure optimal performance.

Top view of PCB reference design

Please find the Integration files in Altium, 2D formats and the 3D model for the ILA.68 here: (Link Needed)

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 3.2 x 1.6 x 1.1 mm High efficiency up to 67.8%, peak gain 3.98 dBi RoHS & Reach
Weight: 0.02g
Material: Ceramic
Storage Temperature: -10°C to 40°C
Relative Humidity: Non-condensing 40°C 75% RH
Moisture Sensitivity Level: 1

UWB

Frequency: 6000-8500 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 3W
VSWR: <2.5:1
Peak Gain (Max): 3.98 dBi
Efficiency (Max): 67.8%
Average Gain: -1.92 to -1.68 dB
Termination Style: SMD/SMT
