Description

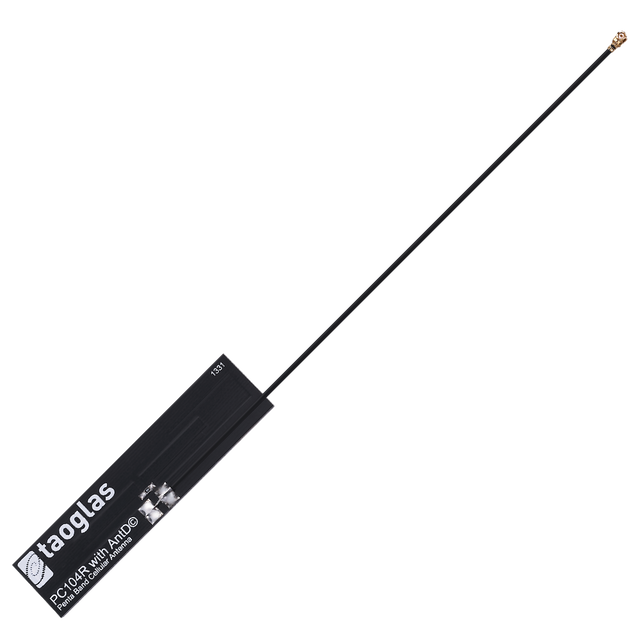

This embedded, slim-line PCB antenna is designed to deliver reliable cellular performance in compact devices. Its low-profile dipole design supports consistent, omni-directional reception and transmission, and includes an integrated diagnostic resistor to help detect antenna connection faults.
- Embedded form factor: integrates neatly inside the host device
- Low-profile design: suited to space-constrained enclosures
- Adhesive-backed mounting: simplifies placement on suitable plastic surfaces
- Diagnostic support: integrated shunt resistor enables antenna diagnostics in compatible designs
Connector & Cable
- Connector Type: I-PEX MHF I
- Cable Length: 16.5cm
- Cable Type: 1.37 Coax
Installation / Environmental
This antenna has 3M adhesive on the back, and is tuned and designed to be mounted on 2mm thickness plastic (not on metal).
Cable lengths and connectors are fully customizable and the antenna is suitable for long cable lengths out to 2 metres. For good efficiency performance, the shortest cable length should however not be less than 100mm, for requirements with shorter cable lengths the alternative product the FXP.14 can be used. AntD© allows connected radio products designed using the latest cellular modules from companies such as Telit and uBlox to perform diagnostics on the antenna. This includes detection that the proper antenna is connected and that the connection isn’t shorted or broken.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 3G
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 80mm*20.8mm*1mm
Weight: 10g
Material: FR4
Impedance: 50 Ω
Polarization: Linear
Cellular (2G/3G)
Standards: GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE
Frequency: 824~896, 880~960, 1710~1880, 1850~1990, 1920~2170 MHz
Frequency Range: 824MHz - 2170MHz
VSWR: 2
Return Loss (dB): <-7 (GSM850), <-5 (GSM900), <-10 (DCS/PCS/2100)
Efficiency (%): 42 (GSM850), 42 (GSM900), 70 (DCS), 75 (PCS), 78 (2100)
Peak Gain (dBi): 0.77 (GSM850), 0.99 (GSM900), 2.26 (DCS), 2.13 (PCS), 2.39 (2100)
Power Handled: 50 W
Integrated Resistor: Shunt 10K Ohm (+/- 5%) to Ground
Adhesive: 3M 467
Connector Type: I-PEX MHF I
Cable Length: 16.5cm
Cable Type: Φ1.37 Coaxial cable
