Description

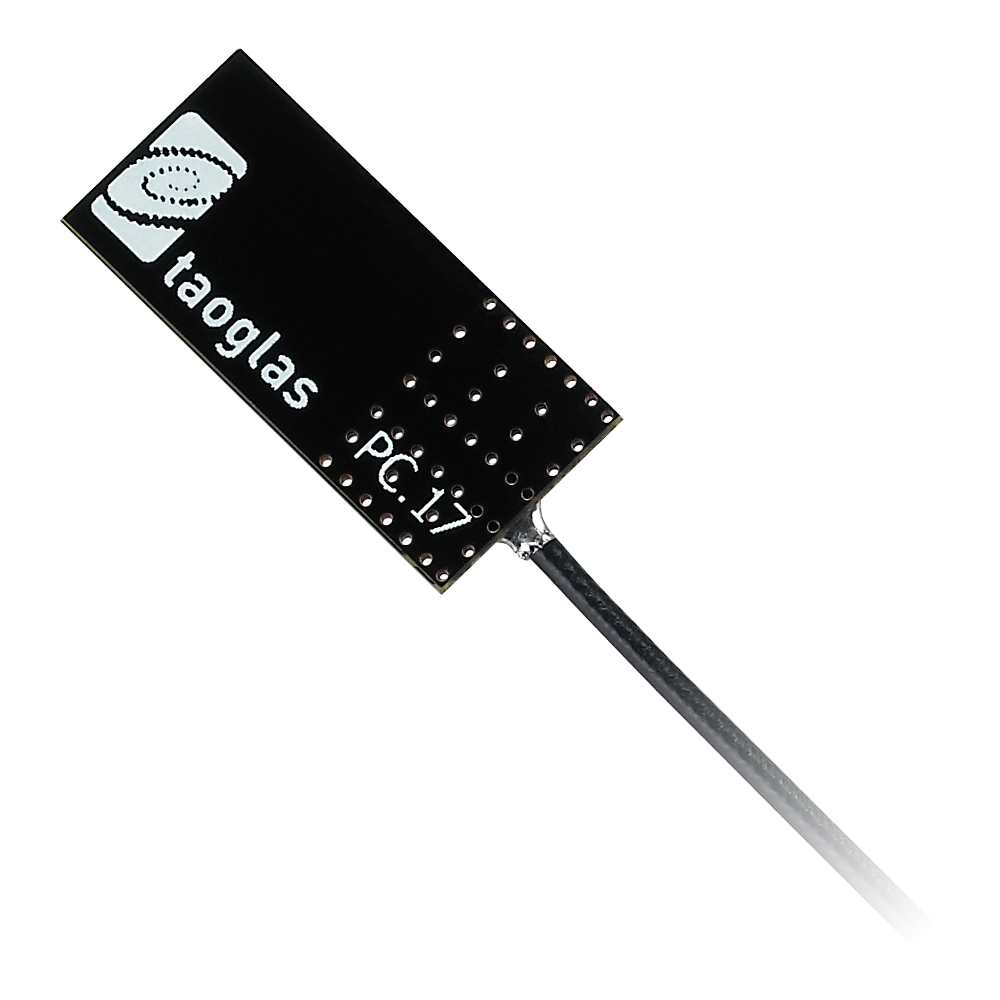

This ultra-miniature embedded PCB antenna is designed for 2.4GHz connectivity in space-constrained devices. It delivers stable efficiency, gain, and radiation performance for short-range wireless links, and is well-suited to designs where antenna placement and nearby components can impact real-world RF performance.
- Designed for compact devices: Ultra-miniature PCB form factor for easy integration into small enclosures
- Reliable 2.4GHz performance: Optimized for common 2.4GHz wireless standards used in connected products
- Integration-friendly: Cable and connector can be customized to match module and enclosure requirements
Connections
1x Wi-Fi/Bluetooth/ZigBee (2.4GHz ISM)
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 7cm
- Cable Type: Mini-Coax 1.13 mm
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 10.75 x 24 x 0.8 mm
Weight: 1g
Wi-Fi/Bluetooth/ZigBee (2.4GHz ISM)
Frequency: 2400-2483.5 MHz
Standards: Wi-Fi, Bluetooth, Zigbee, 2.4GHz ISM
Efficiency (%): 44%
Peak Gain: 0.9dBi
Average Gain: -3.6dBi
Return Loss: -12dB
Impedance: 50 Ohms
VSWR: ≤1.5:1
Polarization: Linear
Power Handled: 2 W
Connector Type: MHFI (U.FL Compatible)
Cable Length: 7cm
Cable Type: Mini-Coax 1.13 mm
