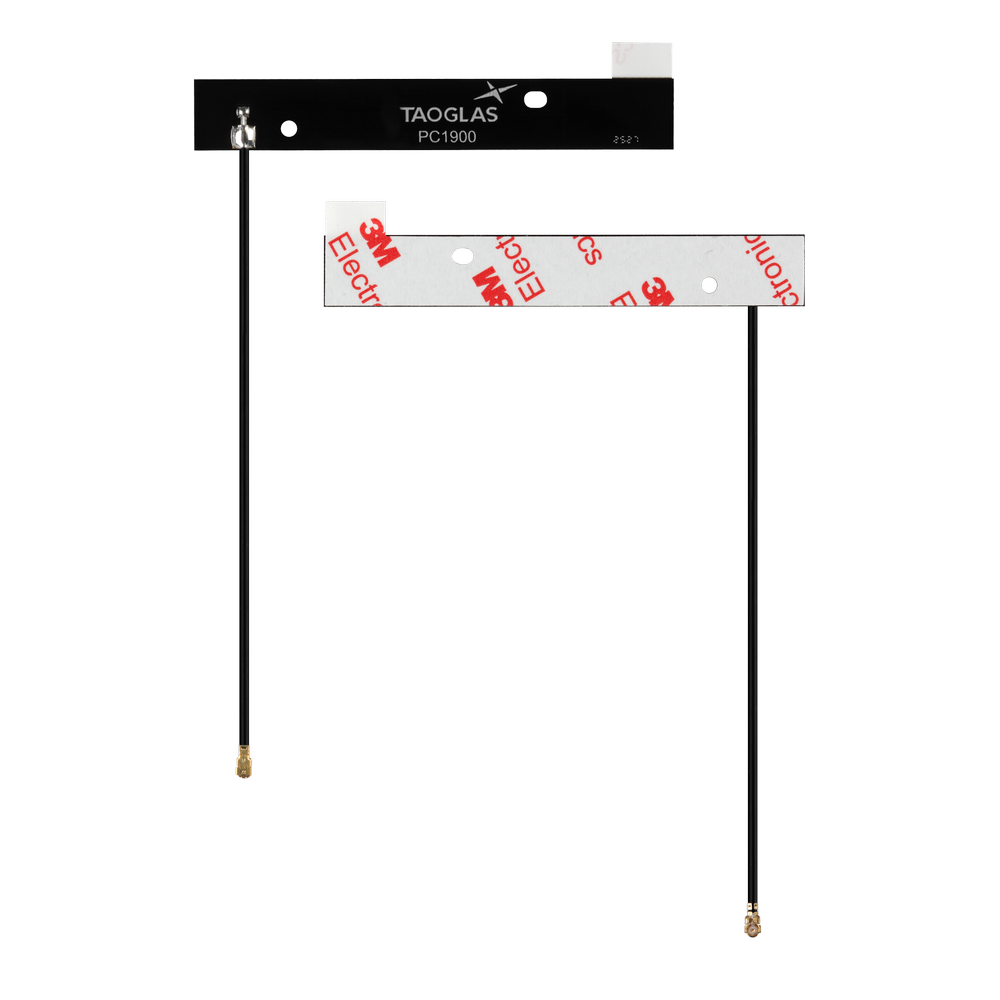

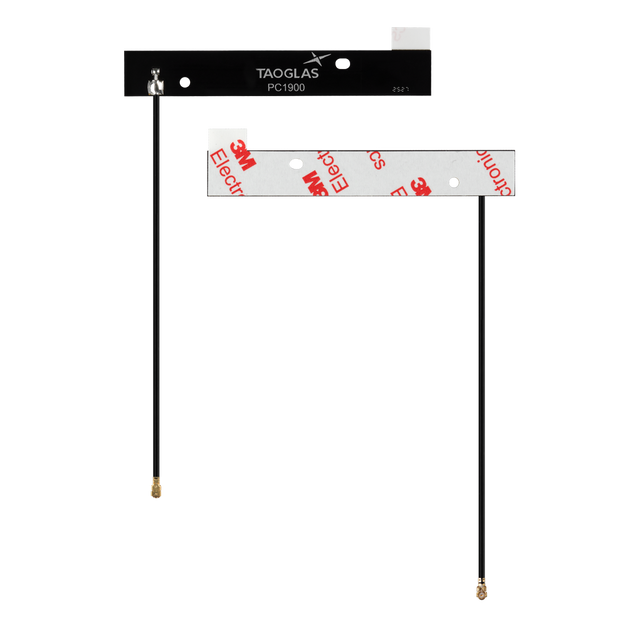

PC1900.07.0100AQ Antenna Low-Profile ADS-B PCB adhesive mount I-PEX MHF I 10cm for ADS-B Ground Stations, Unmanned Aerial Vehicles (UAVs), Avionics and Air Traffic Systems, IoT Tracking and Monitoring Solutions

This compact embedded PCB ADS-B antenna is designed for reliable operation across the 978 MHz and 1090 MHz ADS-B bands, supporting robust aircraft tracking and surveillance performance.

Its vertical-feed design helps simplify integration into space-constrained devices, while the adhesive-backed PCB format supports quick placement on suitable enclosures or substrates for embedded deployments.

• Designed for ADS-B operation: Supports both 978 MHz and 1090 MHz ADS-B bands
• Optimized embedded form factor: Lightweight, slim PCB construction for compact systems
• Reliable installation approach: Adhesive-backed mounting for fast integration

Typical use cases include: ADS-B ground stations, UAVs, avionics and air traffic systems, IoT tracking and monitoring solutions, and transportation/logistics infrastructure.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL COMP)
• Cable Length: 10cm
• Cable Type: 1.37 Coaxial (Black)

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount (3M 9448 HK)
Type: Single
Dimensions: of just 80 x 12 x 0.86 mm and a weight of only 2g, the antenna maintains a low-p
Weight: 2g
Material: FR4 (Composite)

ADS-B (978/1090 MHz)

Frequency: 973-1095 MHz
Polarization: Linear
Radiation Pattern: Omni directional
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 1.64 dBi
Max. Input Power: 10W
Efficiency (Max): 63.7%
978 MHz Band: 973-983 MHz; Peak Gain 1.39 dBi; Efficiency 59.3%; Average Gain -2.27 dB
1090 MHz Band: 1085-1095 MHz; Peak Gain 1.64 dBi; Efficiency 63.7%; Average Gain -1.96 dB
Connector Type: I-PEX MHF I (U.FL COMP)
Cable Length: 10cm
Cable Type: 1.37 Coaxial (Black)
