Description

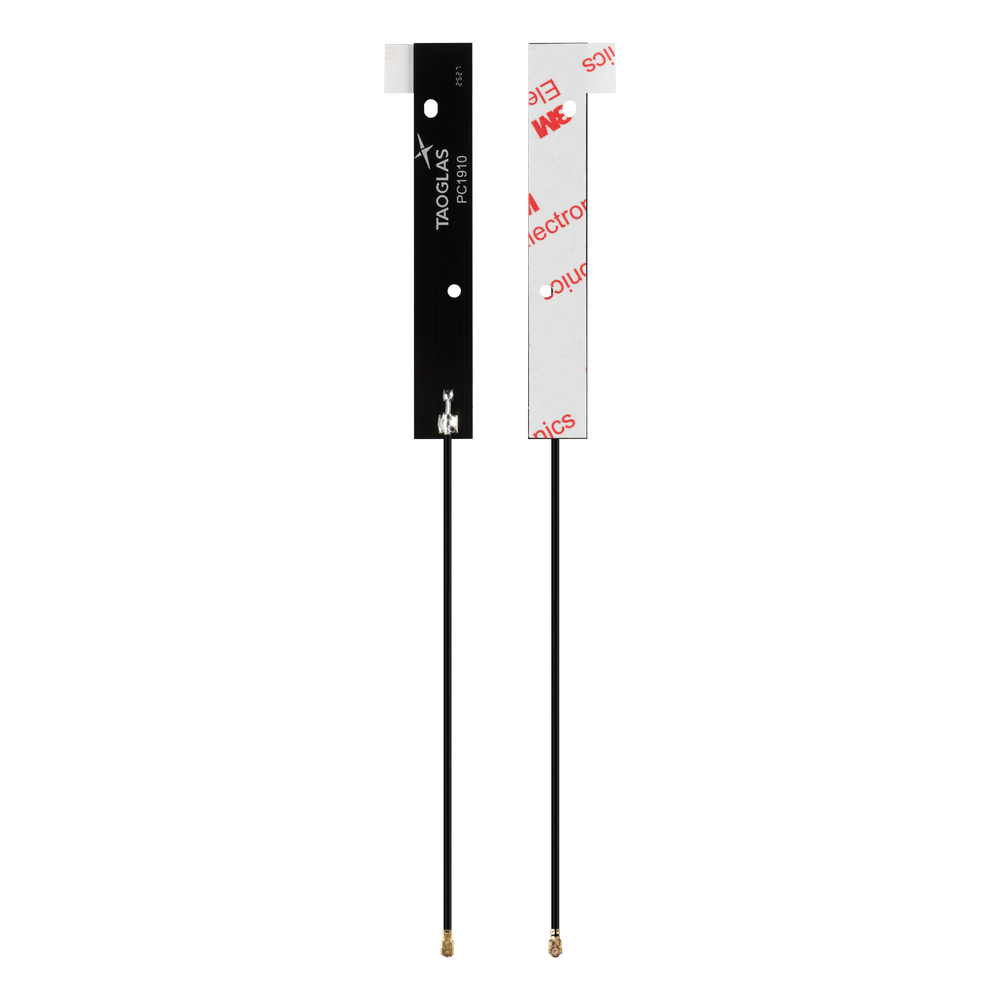

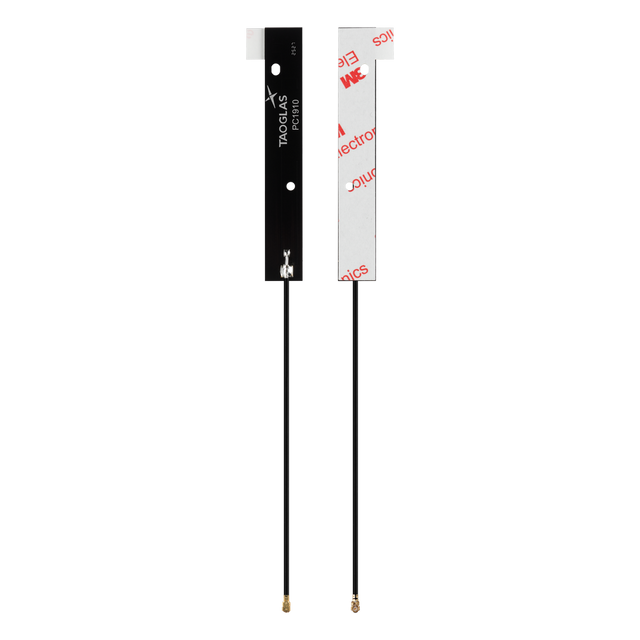

This compact embedded PCB antenna is designed for ADS-B operation in the 978 MHz and 1090 MHz bands, supporting reliable aircraft tracking and surveillance use cases. Its horizontal-feed design helps simplify integration into space-constrained devices while maintaining omnidirectional radiation characteristics and linear polarization.
- Designed for ADS-B: Supports the 978 MHz and 1090 MHz bands
- Embedded, low-profile PCB form factor: Suitable for compact devices and enclosures
- Simple integration: Adhesive-backed mounting for fast placement on substrates
- Use cases: Ground stations, UAVs, avionics/air traffic systems, tracking and monitoring, transportation infrastructure
Connector & Cable
- Connector Type: I-PEX MHF I Connector
- Cable Length: 10cm
- Cable Type: 1.37 Coaxial (Black)
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 973MHz - 1095MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Max. Input Power: 5W
Gain (Max): 1.71 dBi
Dimensions: of just 80 x 12 x 0.86mm and a weight of only 2g, the antenna maintains a low-pr
Weight: 2g
Material: FR4 (Composite)
Connector Type: IPEX MHF I (U.FL COMP)
Cable Length: 10cm
Cable Type: 1.37 (Black)
