Description

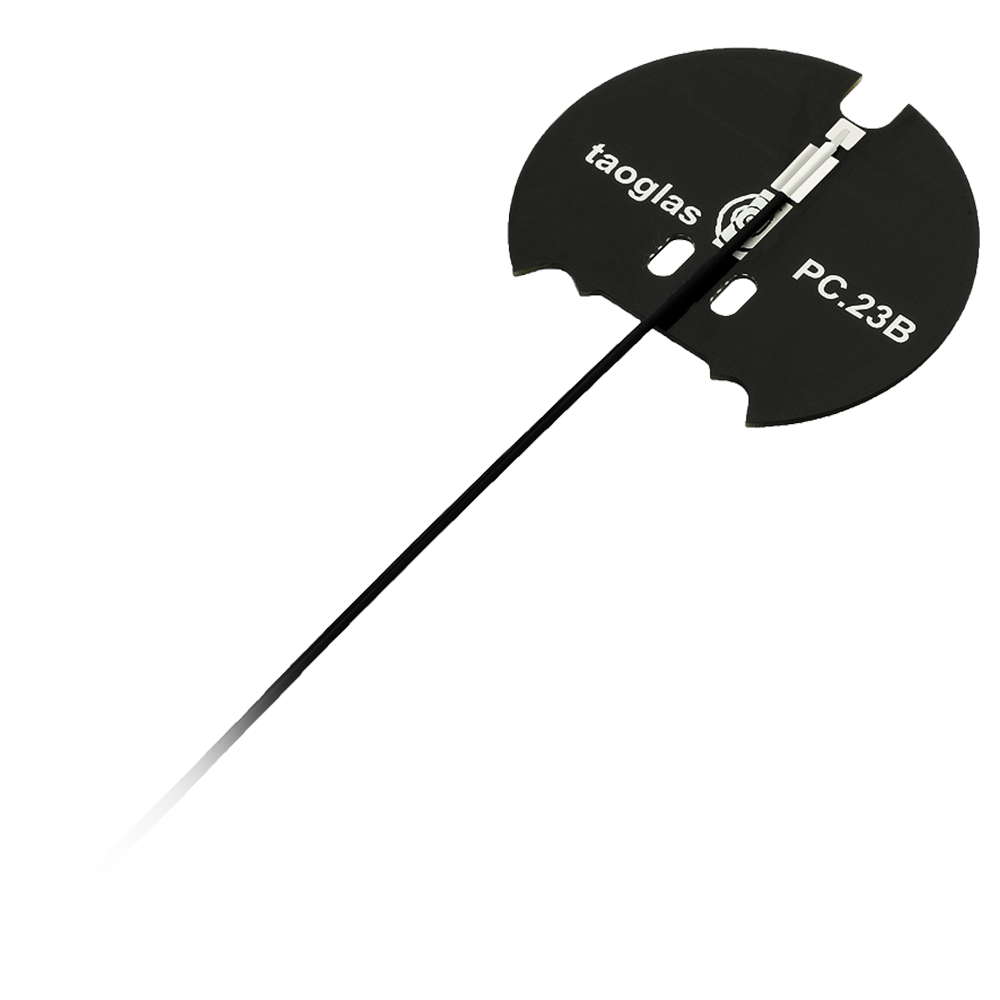

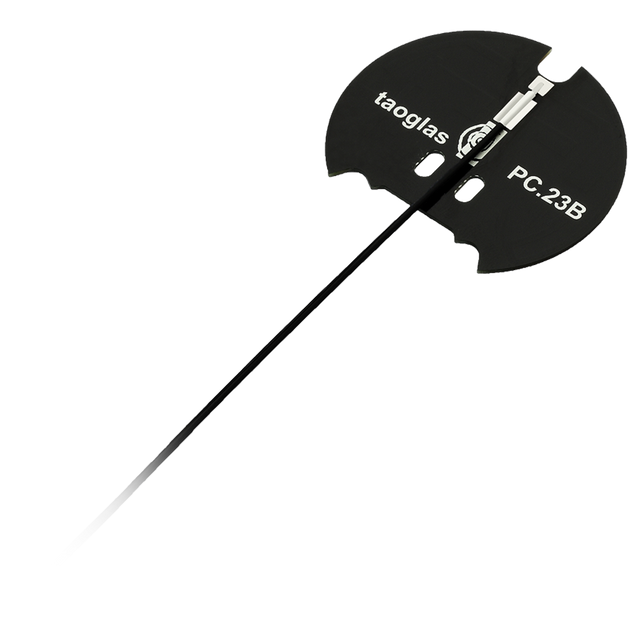

This internal circular PCB antenna is designed for embedded cellular devices requiring reliable quad-band coverage. Its compact, low-height form factor supports consistent reception and transmission with an omni-directional radiation pattern.
- Quad-band cellular support for broad 2G/3G regional compatibility
- Compact circular PCB format suited to space-constrained embedded designs
- Adhesive mounting style for simplified integration
- Omni-directional performance to help maintain stable link quality
Connector & Cable
- Connector Type: I-PEX MHF I Connector
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: H: 0.8mm, Ø:42mm
Weight: 3g
Cellular
Frequency: 824MHz - 1880MHz
Standards: Quad-band 850/900/1800/1900MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 3.59
Gain (Max): 1
Connector Type: I-PEX MHF I
Cable Length: 10cm
Cable Type: 1.13 Coax
