Description

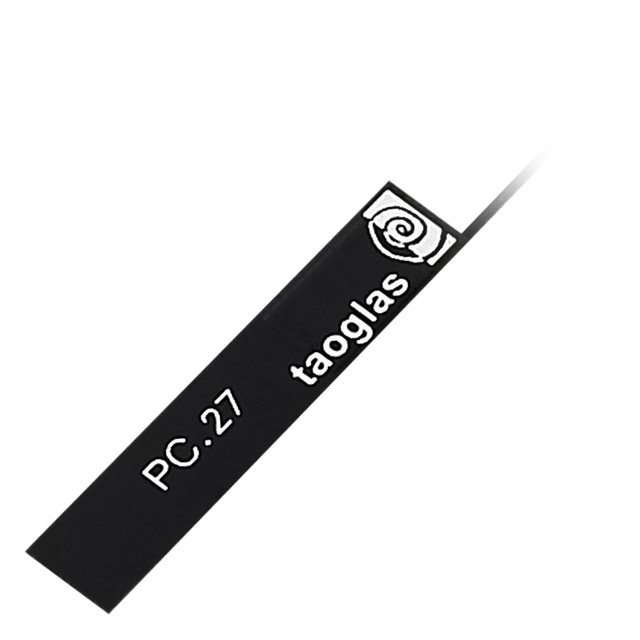

This miniature, low-profile PCB antenna is designed for embedded 2G/GSM connectivity in compact devices. Built using TheStripe technology, it helps enable quad-band GSM coverage while maintaining a small footprint for space-constrained designs.
- Miniaturized low-profile PCB form factor for embedded integration
- Quad-band GSM support for broad 2G coverage
- Adhesive mounting style for straightforward placement inside enclosures
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 2G
Location: Internal
Mounting: Adhesive Mount
Type: Single
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Dimensions: 34 x 7 x 0.8mm
Weight: 2.4g
2G GSM (Quad-Band)
Frequency: 824-896 MHz, 880-960 MHz, 1710-1880 MHz, 1850-1990 MHz
Standards: GSM 850/900/1800/1900
Free Space Peak Gain (dBi): -4.1, -13, 0.6, -0.4
Free Space Efficiency (%): 13, 8, 51, 11
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.13 co-axial
