Description

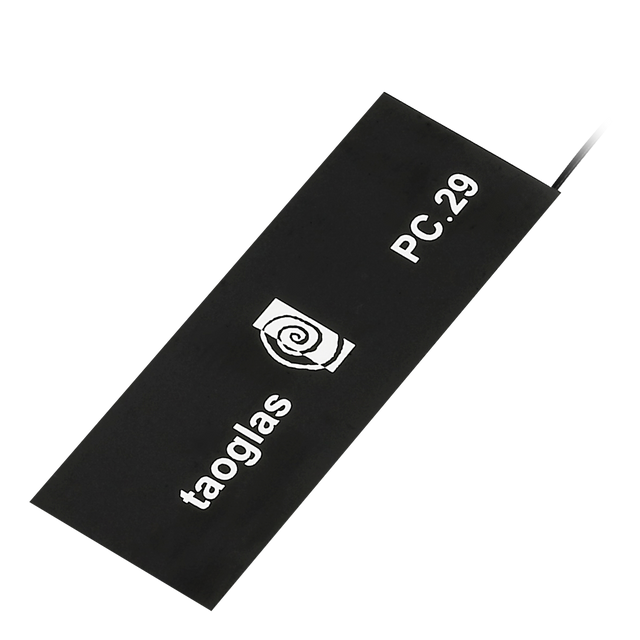

This high-performance, low-profile PCB antenna uses TheStripe™ antenna technology to deliver reliable penta-band cellular coverage for worldwide GSM and UMTS/WCDMA deployments.
Designed for embedded device integration, it provides strong efficiency and radiation performance when evaluated in free-space conditions and integrated into the end device housing.
- Penta-band cellular support: Covers 850/900/1800/1900/2100 MHz for broad 2G/3G compatibility
- Embedded PCB form factor: Low-profile construction suited to compact devices
- High efficiency design: Optimized for operator testing and device certification workflows
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL) Connector
- Cable Length: 10cm
- Cable Type: 1.13 Coax
Installation / Environmental
STEP 1 Route Cable in Correct Position
STEP 2 Connect Antenna to Module
Connect feed-line to network analyze
STEP 3 - Assemble Antenna in Correct Position
STEP 4 - Assemble Housing
Technical Specifications
Operating Temperature: -40°C to + 85°C
Cellular Technologies: 3G
Location: Internal
Mounting: Adhesive Mount
Type: Single
Impedance: 50 Ohm
Radiation Pattern: Omnidirectional
Polarization: Horizontal
VSWR: 2:1
Dimensions: 80*30*0.8mm
Weight: 1 g
RoHS: Yes
Cellular (2G/3G)
Frequency: 824MHz - 2170MHz
Standards: GSM 850 / 900 / 1800 / 1900 & UMTS / WCDMA (3G) 2100 MHz
Average Efficiency: 62%
Gain (Max): 1.25
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 10cm
Cable Type: 1.13 Coax (ψ1.13 ± 0.1mm)
