Description

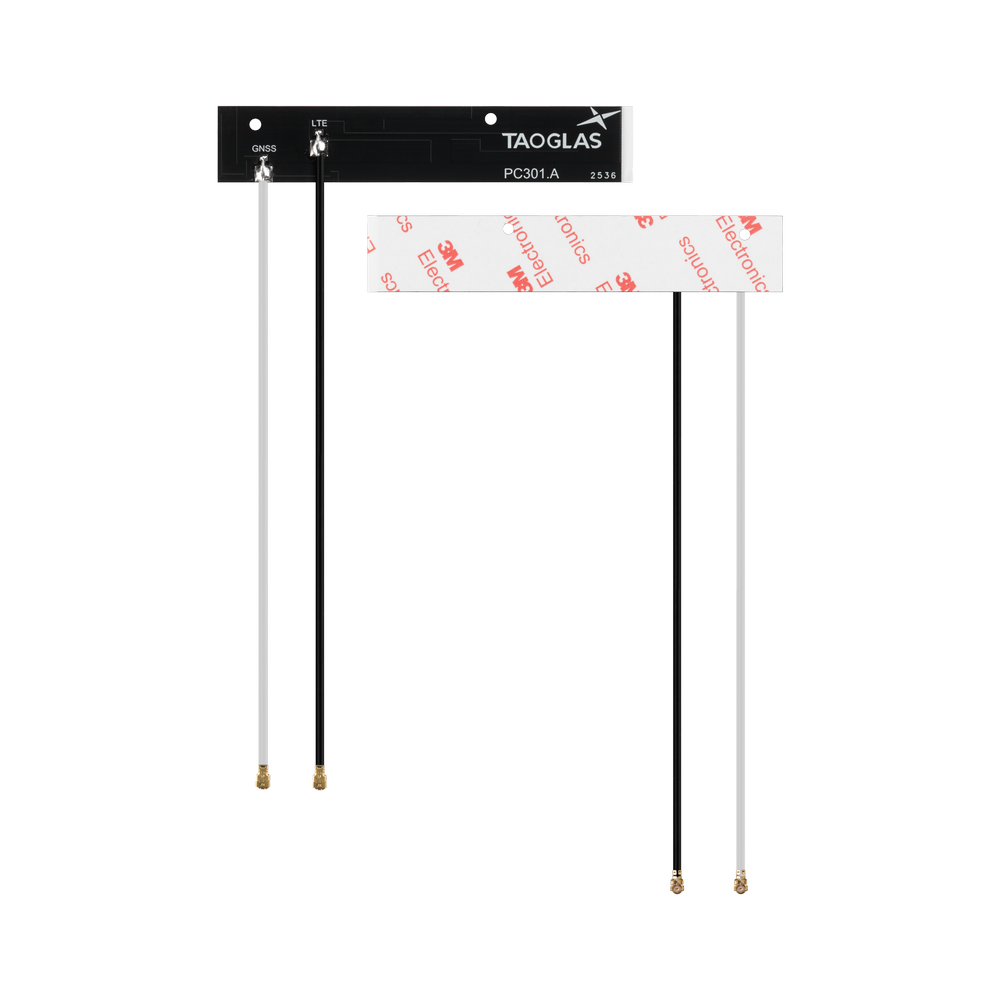

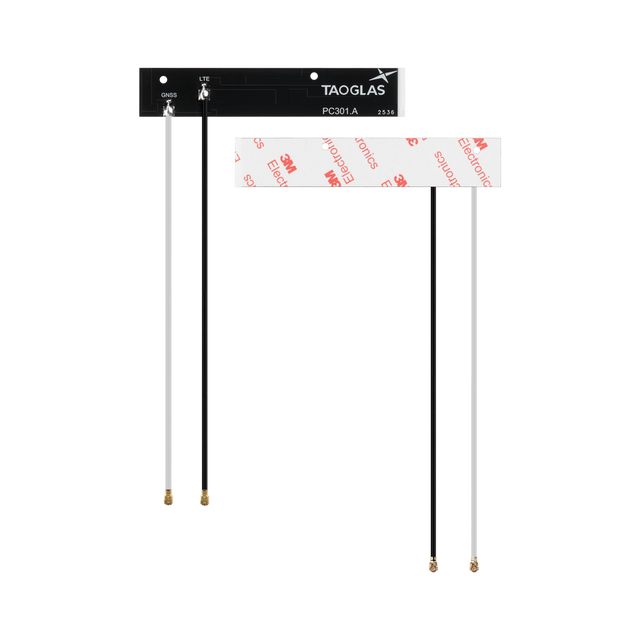

PC301.A.001 is an ultra-thin FR4 PCB combination antenna designed to deliver both wideband cellular connectivity and GNSS reception in a single compact, rigid form factor. It supports extended cellular coverage from 600MHz to 8000MHz and GNSS coverage across L1, B1I, G1, and L-Band, helping reduce space, cost, and design complexity in compact wireless devices.
- 2-in-1 design: separate feeds for Cellular and GNSS
- Compact and ultra-thin: ideal for space-constrained devices
- Broad frequency coverage: supports global cellular and multi-constellation GNSS bands
- Fast integration: designed for quick integration into compact devices
Typical applications include:
- Asset tracking
- Telematics
- E-Mobility
- Smart agriculture
- Connected healthcare devices
- Wearables and other IoT solutions
Connections
1x GNSS 1542MHz - 1602MHz (L1, B1I, G1, L-Band)
1x Cellular 600MHz - 8000MHz
Installation / Environmental
Installation is quick and simple with a “peel-and-stick” 3M adhesive backing, enabling secure mounting on non-metal surfaces such as plastic or glass.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Frequency: 600MHz - 8000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Dimensions: 105 x 20 x 1.1mm Cables: 150mm of Ø1.37mm Connectors: I-PE x MHF® I (U.FL Compati
Weight: 5.3g
GNSS (Passive)
Frequency: 1542MHz - 1602MHz
GNSS Bands: L1/L-Band
Standards: L1, B1I, G1, L-Band
Impedance: 50 Ω
Polarization: Linear
VSWR (max.): 1.5:1 (1542/1561/1575.42), 2:1 (1602)
Efficiency (%): 60.6 (1542), 64.1 (1561), 63.1 (1575.42), 58.8 (1602)
Average Gain (dB): -2.0 (1542), -1.9 (1561), -1.9 (1575.42), -2.3 (1602)
Peak Gain (dBi): 3.6 (1542), 4.0 (1561), 4.2 (1575.42), 4.1 (1602)
Connector Type: I-PEX MHFI
Cable Length: 15cm
Cable Type: 1.37 (White)
Cellular
Frequency: 600MHz - 8000MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 5W
Peak Gain (dBi): 5.09 (5925-7125)
Connector Type: I-PEX MHFI
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Black)
