PC302.A.001 Antenna Ultra-Thin 5G, Wi-Fi 6E/7 FR4 PCB adhesive mount 2-in-1 for Telematics, E-Mobility, Smart agriculture, Connected healthcare devices

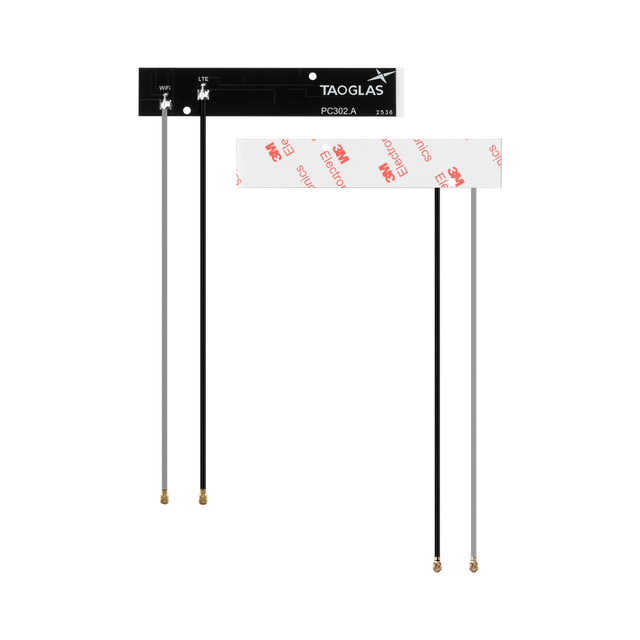

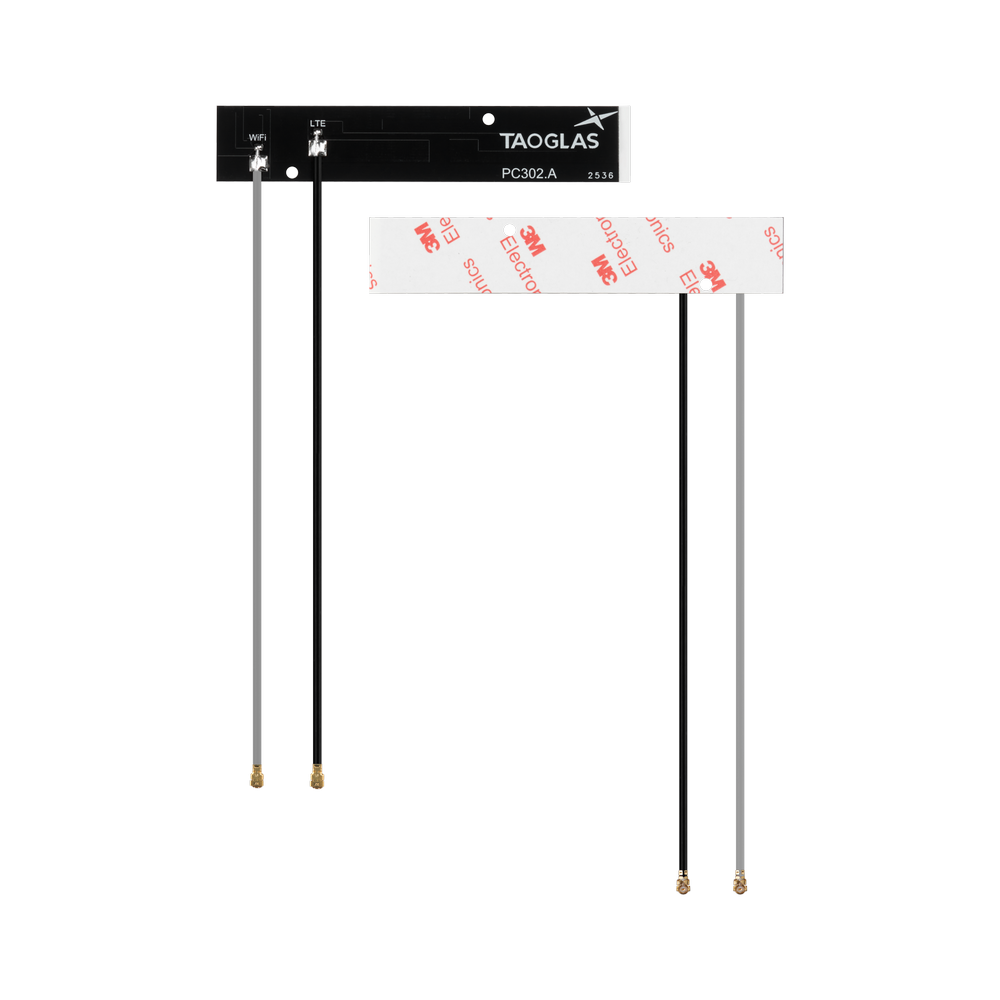

This ultra-thin FR4 PCB antenna integrates two separate feeds for wideband cellular and tri-band Wi-Fi coverage in a compact, rigid PCB format. It is designed for fast integration into space-constrained devices where reliable global connectivity is required.

• 2-in-1 design: separate cellular and Wi-Fi feeds to simplify RF integration
• Ultra-thin PCB form factor: supports compact device designs
• Ground-plane independent performance: helps maintain stable RF behavior across device layouts
• Quick integration: adhesive-backed mounting for non-metal surfaces such as plastic or glass

Typical applications include: Telematics, E-Mobility, Smart agriculture, Connected healthcare devices, Wearables and other IoT solutions.

Connections

1x Cellular covering 600MHz–8000MHz
1x Wi-Fi covering 2.4GHz, 5.8GHz & 7.125GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Frequency: 600MHz - 8000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Dimensions: 105mm x 20mm x 1.1 mm
Weight: 5.3g

Cellular

Frequency: 600MHz – 8000MHz
Peak Gain (Max): up to 3.57 dBi
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 5W
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Black)

Wi-Fi (2.4/5/6 GHz)

Frequency: 2400-2500MHz, 5150-5850MHz, 5925-7125MHz
Peak Gain (Max): up to 3.24 dBi
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 5W
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 (Grey)
