Description

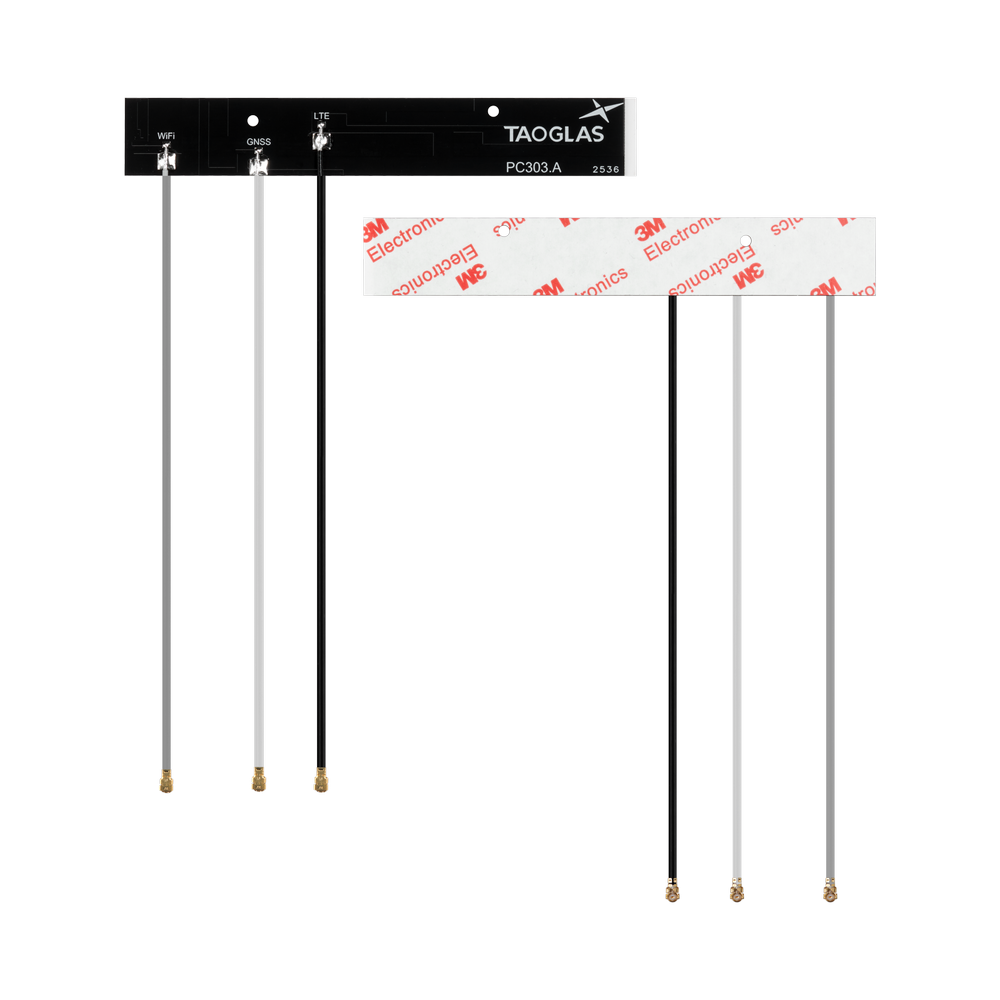

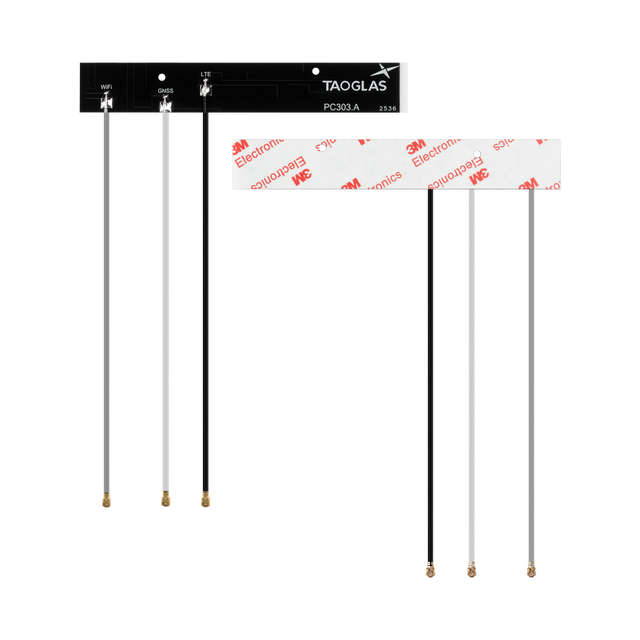

This rigid FR4 PCB antenna integrates cellular, Wi-Fi, and GNSS capability into a compact, space-saving design for easy integration into connected devices. It is designed to support robust global connectivity and positioning while simplifying RF integration and reducing the need for multiple antennas.
- 3-in-1 embedded PCB design: combines Cellular, Wi-Fi, and GNSS in one antenna assembly
- Fast device integration: compact form factor intended for space-constrained products
- Simple mounting: peel-and-stick adhesive backing for mounting on non-metal surfaces such as plastic or glass
- Manufacturing-friendly: separate feeds and color-coded cables help streamline assembly and reduce integration errors
Typical use cases include: asset tracking, telematics, e-mobility, smart agriculture, connected healthcare devices, and wearables/IoT solutions.
Connections
1x GNSS covering L1, B1I, G1 and L-Band
1x Cellular covering 600MHz 00MHz
1x Wi-Fi covering 2.4GHz, 5.8GHz, 7.125GHz
Technical Specifications
Operating Temperature: -40 C to 85 C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
Dimensions: 130mm x 20mm x 0.24 mm
Weight: 6.9g
Material: FR4 (NP-140)
GNSS
Frequency: 1542, 1561, 1575.42, 1602 MHz
GNSS Bands: L1, B1I, G1, L-Band
Polarization: Linear
Impedance: 50
VSWR (max.): 1.5:1
Efficiency (%): 56.5 60.8
Peak Gain (dBi): 3.3 3.6
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: White
Cellular
Frequency: 600 6000 MHz (600MHz 00MHz)
Standards: 5GNR/4G/3G
Polarization: Linear
Impedance: 50
Max. Input Power: 5W
Radiation Pattern: Omni directional
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: Black
Wi-Fi
Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Standards: Wi-Fi (2.4 / 5 / 6 GHz)
Polarization: Linear
Impedance: 50
Max. Input Power: 5W
Radiation Pattern: Omni directional
Peak Gain (dBi): 2.02, 5.30, 5.20
Connector Type: I-PEX MHF I
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Color: Grey
