Description

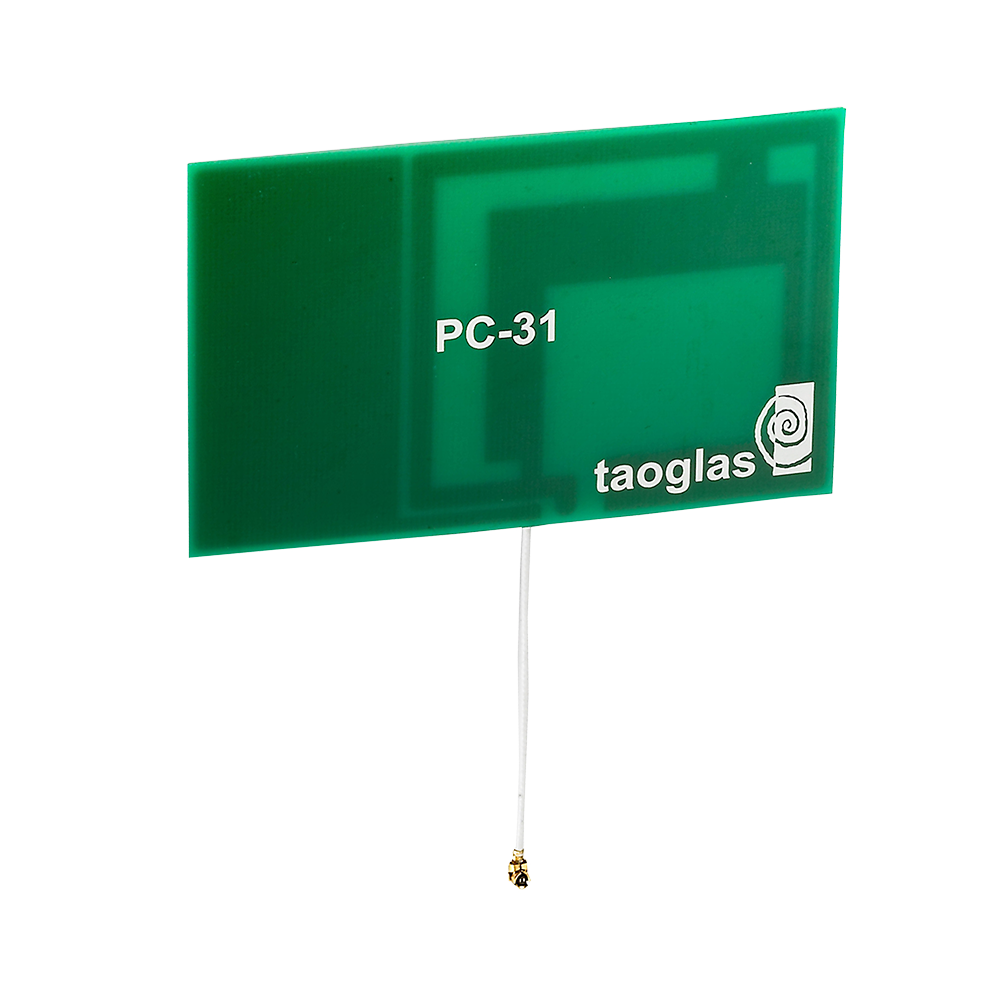

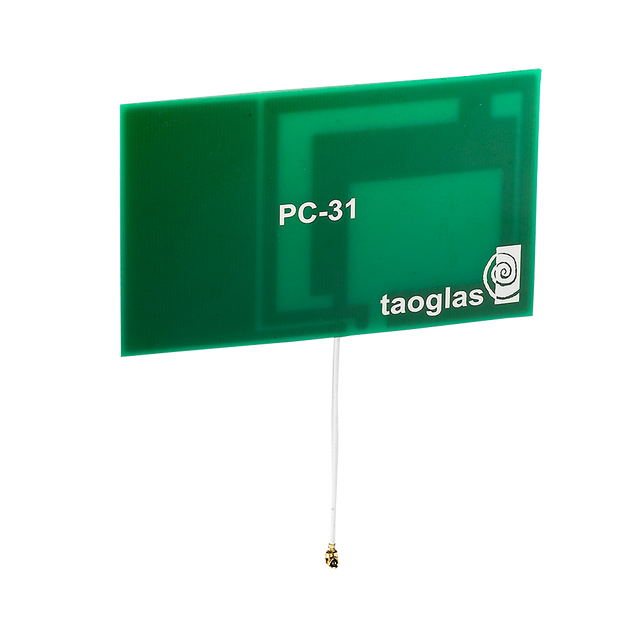

This dual-band ISM PCB antenna is designed for 868/915MHz applications where compact embedded performance is needed. Its low-profile FR4 construction supports efficient omni-directional operation and is optimized for free-space benchmarking, with additional tuning possible once integrated into the final device housing.
- Dual-band ISM coverage: Supports both 868MHz and 915MHz regulatory bands for regional flexibility
- Embedded PCB form factor: Suitable for compact devices requiring internal antenna integration
- Flexible placement: Optional adhesive mounting helps with positioning inside enclosures
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 5cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Short-Range Wireless Standards: ISM
Type: Single
Dimensions: 90*55*0.8mm
Material: FR4
Weight: 2 g
ISM 868/915 (Embedded PCB)
Frequency: 868MHz - 928MHz
Band Details: ISM 868: 868 ~ 870 MHz; ISM 915: 902 ~ 928 MHz
Impedance: 50 Ohm
Polarization: Linear
VSWR: <2
Average Gain: ISM 868: 2.3dBi; ISM 915: 1.6dBi
Average Efficiency: ISM 868: 87%; ISM 915: 77%
Gain (Max): 2.3
Connector Type: I-PEX MHF I
Cable Length: 5cm
Cable Type: 1.13 Coax
