Description

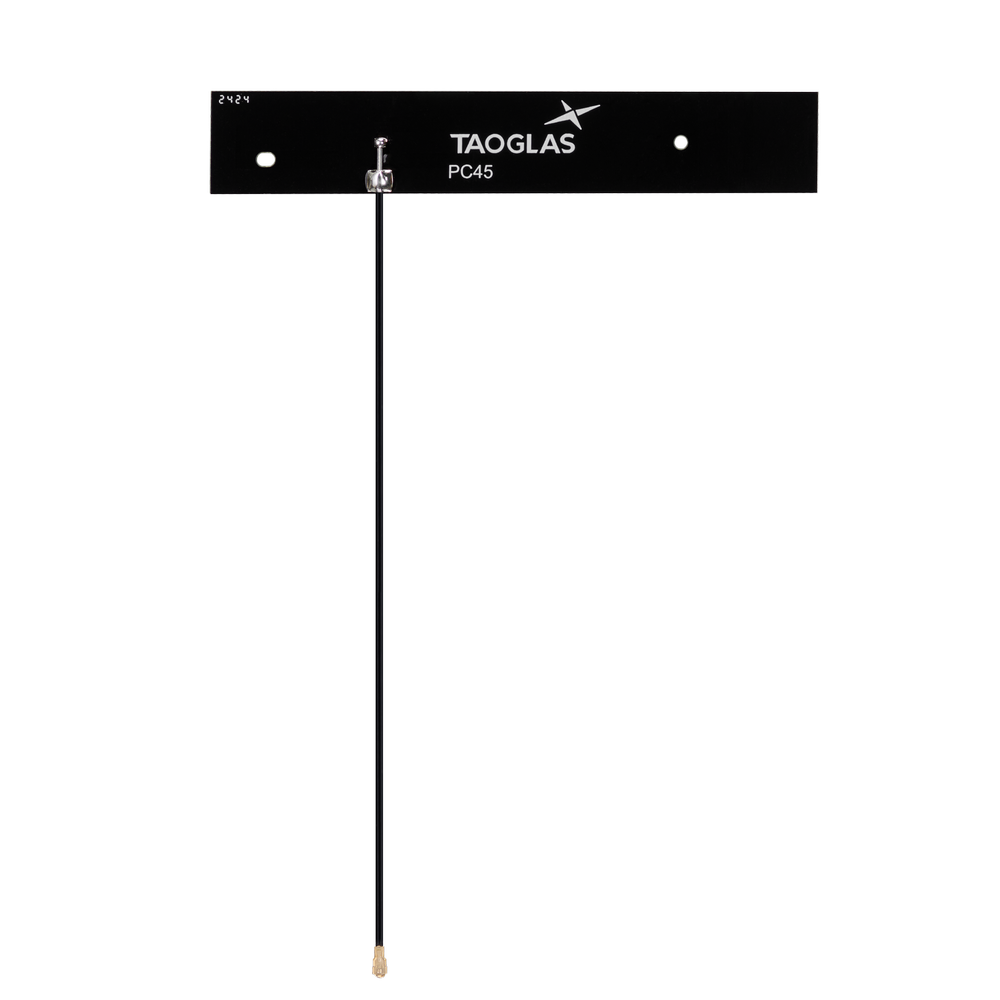

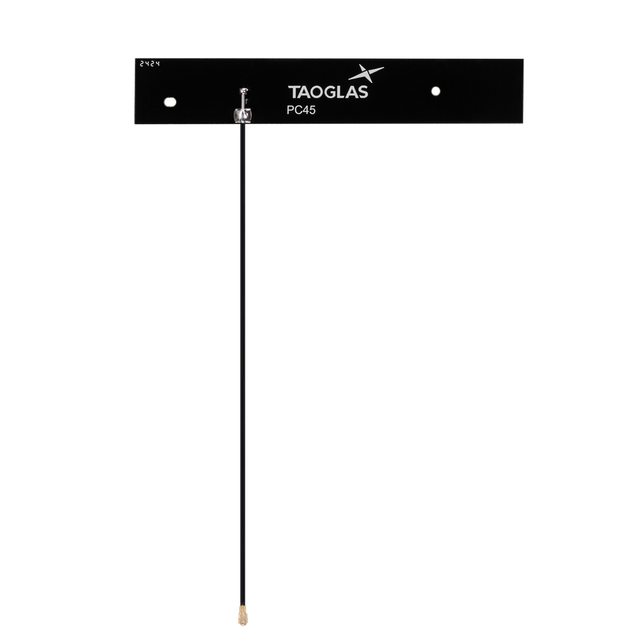

This compact wideband PCB cellular antenna is designed for embedded 5G/4G IoT devices needing global coverage across a broad spectrum. Its slim form factor supports fast integration on or off the host PCB and helps reduce design time by avoiding complex matching or tuning.
Ideal for space-constrained designs, it supports a wide range of cellular bands to help deliver reliable connectivity and strong efficiency for certification-focused device development.
Typical use cases include:
- Network devices, Gateways and Routers
- Remote Monitoring and CCTV Cameras
- Point of Sale Terminals
- Digital Signage
Connector & Cable
- Connector Type: I-PEX MHF1
- Cable Length: 15cm
- Cable Type: 1.37 Coaxial (Black)
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Type: Single
Dimensions: 120 x 20 x 1.06mm
Weight: 5.6g
5G/4G Cellular
Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni directional
Max. Input Power: 2W
Gain (Max): 5.66 dBi
Connector Type: I-PEX MHF1
Cable Length: 15cm
Cable Type: 1.37 Coaxial (Black)
