Description

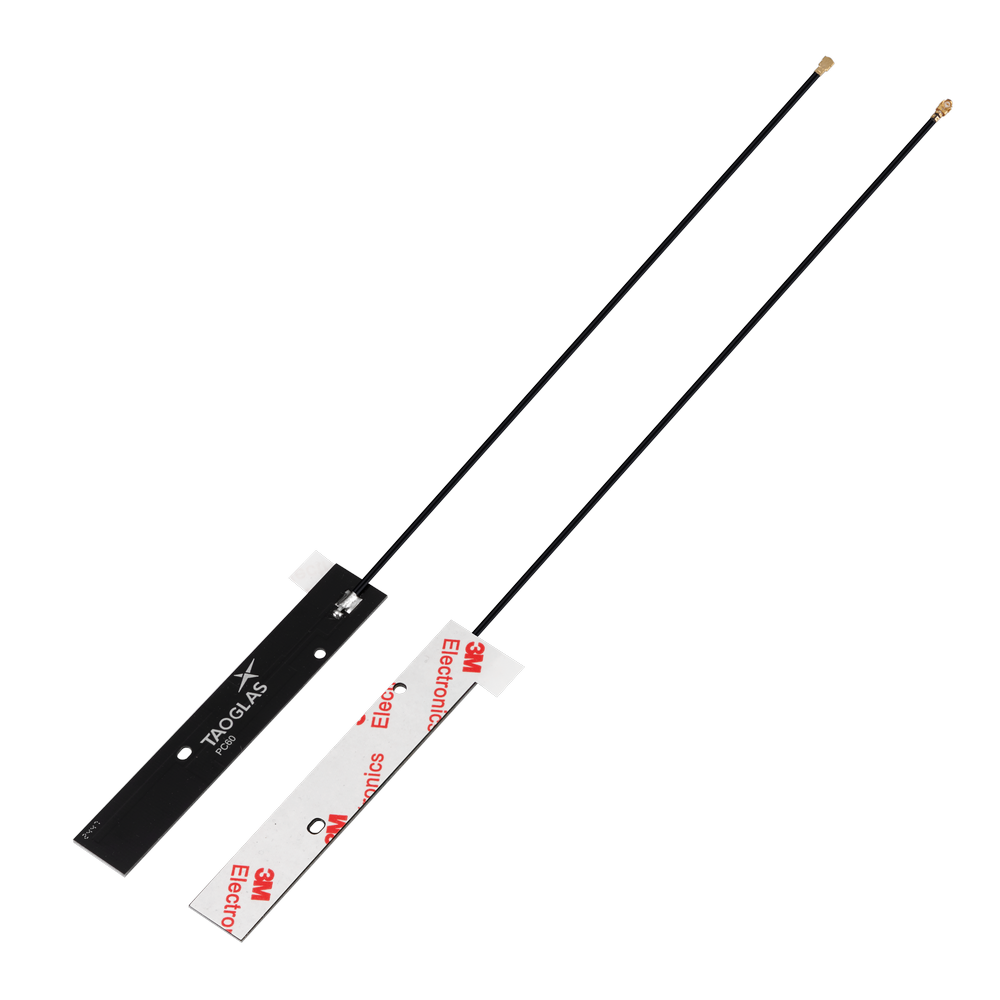

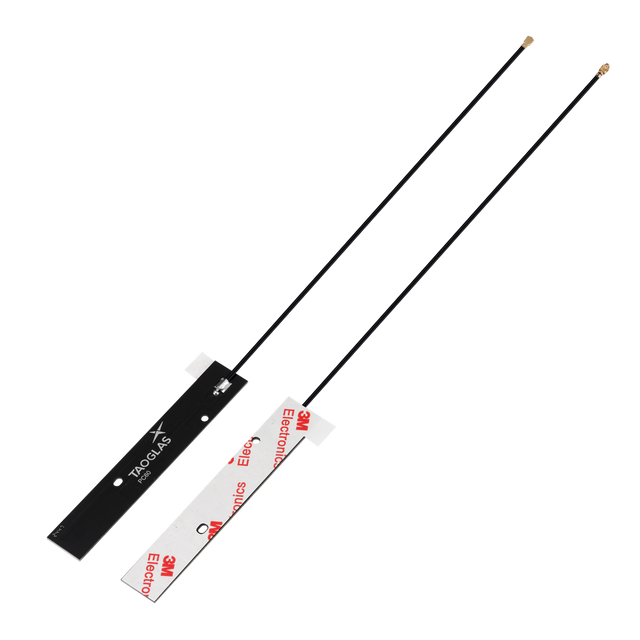

This wideband cellular PCB antenna is designed for compact embedded devices that need reliable multi-band performance with minimal integration effort. Its slim PCB form factor supports fast placement inside enclosures and helps reduce design time by avoiding complex matching or tuning.
- Wideband cellular coverage: supports a broad range of global cellular bands for modern connected devices
- Easy device integration: designed for mounting on or off the main device PCB
- Flexible mounting approach: peel-and-stick backing plus through-hole mounting option where adhesive is not suitable
- Optimized for IoT and certification workflows: designed to support high efficiency performance targets
Typical use cases include: network devices, gateways and routers; remote monitoring and CCTV cameras; point of sale terminals; digital signage.
Connector & Cable
- Connector Type: I-PEX MHF I
- Cable Length: 18cm
- Cable Type: 1.37 Coax (Black)
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Adhesive Mount
Type: Single
Dimensions: 90 x 15 x 1.06mm Cable: 180mm, Ø1.37 Coa x ial Cable (Black) Connector: I-PE x MHF®I U
Weight: 5g
Material: Rigid PCB
5G/4G Cellular
Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / NTN; NB-IoT; Cat M
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 6.21 dBi
Max. Input Power: 10W
Radiation Pattern: Omni directional
Connector Type: IPEX MHF1 (I-PEX MHF I)
Cable Length: 180mm
Cable Type: 1.37 Coaxial
