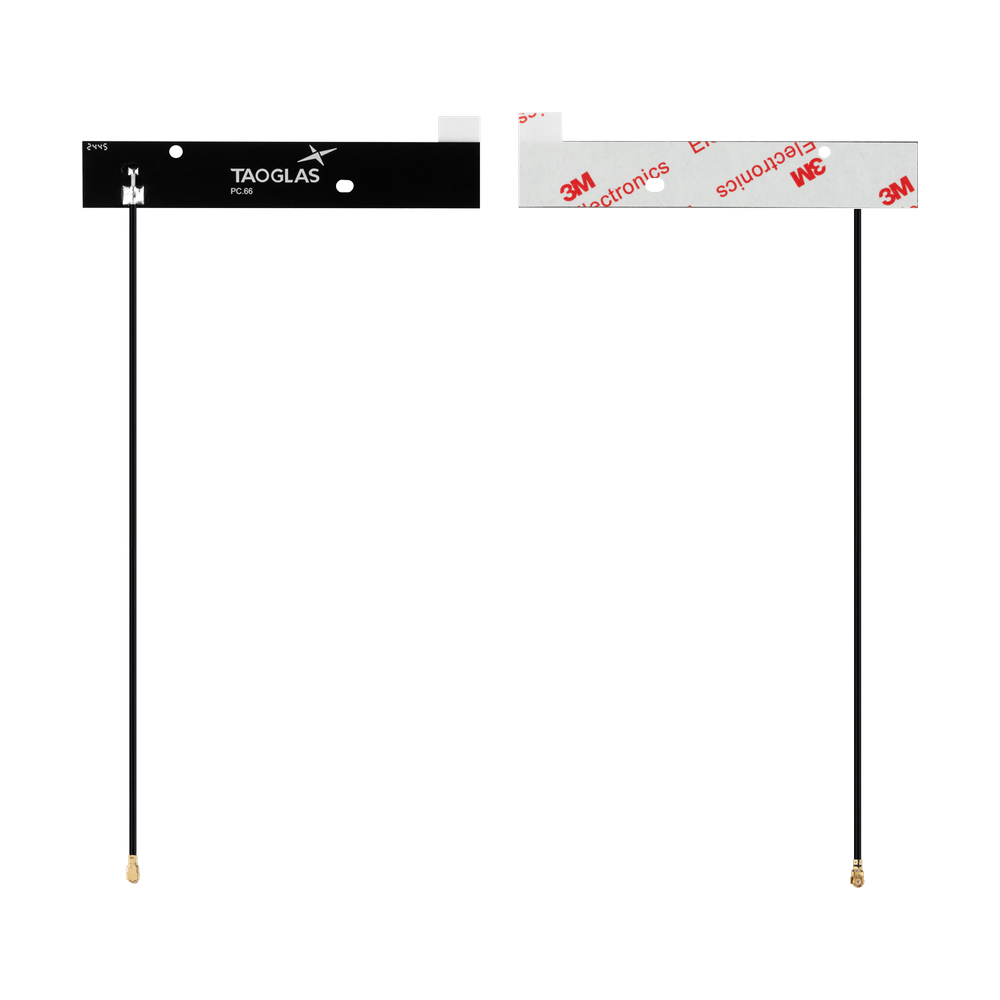

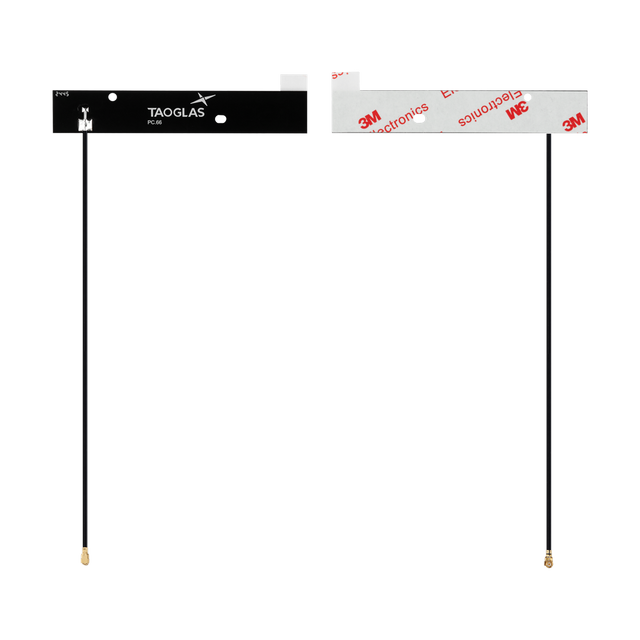

PC66.07.0150AQ Antenna 5G, 4G/LTE adhesive PCB I-PEX MHF1 15cm for Network devices, Gateways and Routers, Remote Monitoring and CCTV Cameras, Point of Sale Terminals, Digital Signage

This compact PCB antenna is designed for embedded 5G/4G cellular devices where space is limited and reliable performance is required. Its slim form factor supports straightforward integration on or off the main device PCB, helping reduce design complexity and speeding up product development.

• Wideband cellular coverage: supports 5G and LTE bands up to 6 GHz for global deployments
• Easy integration: peel-and-stick adhesive backing supports fast placement inside enclosures
• Flexible mounting: through-hole mounting option available when adhesive is not suitable
• Minimal design effort: designed to reduce the need for complex matching or tuning

Typical use cases include: network devices, gateways and routers; remote monitoring and CCTV cameras; point of sale terminals; and digital signage.

Connector & Cable

• Connector Type: I-PEX MHF1
• Cable Length: 15cm
• Cable Type: 1.37 Coaxial (Black)

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount, Hole Mount
Type: Single
Frequency: 617-6000 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 5.26
Max. Input Power: 10W
Radiation Pattern: Omni directional
Dimensions: 90 x 15 x 1.06mm Short Edge Perpendicular (90-degree) Cable Feed Cable: 150mm, Ø1.37
Weight: 5g
Material: Rigid PCB

5G/4G Cellular

Frequency: 617-6000 MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Connector Type: I-PEX MHF1
Cable Length: 15cm
Cable Type: 1.37 Coaxial
Cable Feed: Perpendicular (90-degree)
