Description

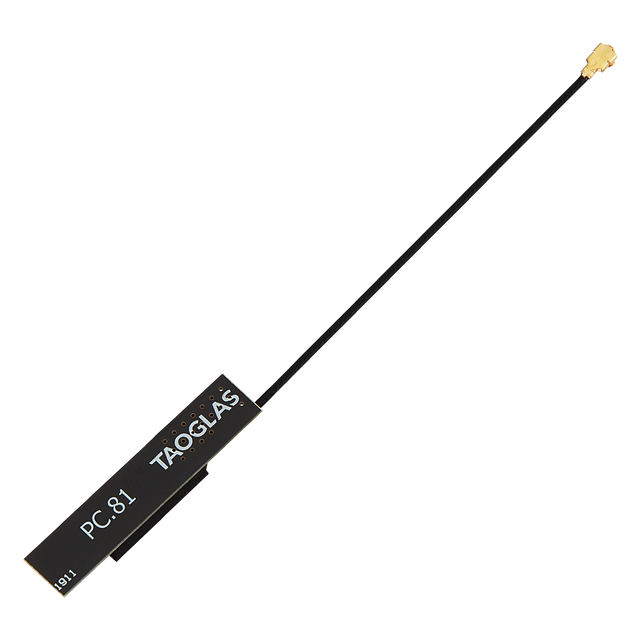

A miniaturized, low-profile embedded PCB antenna designed for the 868MHz ISM/LoRa band, optimized for strong gain and efficiency in compact devices. The included foam attachment with adhesive backing helps maintain clearance from the enclosure to support consistent RF performance.
Typical use cases include smart metering, smart lighting, LoRa gateways, and mesh networks.
- Mini, low-profile embedded PCB format for compact product designs
- Optimized for 868MHz ISM/LoRa deployments
- Adhesive-backed foam spacer to support placement and performance
- Customizable cable lengths and connector options
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 10cm
- Cable Type: Ø1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: PCB
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 868MHz - 870MHz
Impedance: 50Ω
VSWR: <2
Polarization: Horizontal
Gain (Max): 2.25
Dimensions: 34*7*0.8mm (PCB)
Weight: 1g
